Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your Jacuzzi Drain Assembly. This assembly is designed for use with Carvin CFR 50, Landslide, and Dirtbag pool and spa filters. Please read these instructions carefully before installation and operation to ensure proper function and safety.
Important Safety Information
WARNING:
- Always disconnect power to the pump and filter system before performing any installation or maintenance.
- Ensure all connections are secure and watertight to prevent leaks.
- If you are unsure about any part of the installation process, consult a qualified pool technician.
- Keep children away from the pool equipment area during installation and maintenance.
Installation Instructions
Follow these steps to properly install the Jacuzzi Drain Assembly onto your compatible Carvin filter system.
- Prepare the Filter: Ensure your pool or spa filter system is turned off and depressurized. Drain any water from the filter tank if necessary.
- Remove Old Drain (if applicable): If replacing an existing drain assembly, carefully unscrew and remove the old component. Clean the area thoroughly to remove any debris or old sealant.
- Inspect New Assembly: Before installation, inspect the new Jacuzzi Drain Assembly for any visible damage or missing parts.
- Apply Sealant (Optional but Recommended): Apply a suitable thread sealant or Teflon tape to the threads of the new drain assembly to ensure a watertight seal.
- Install the Drain Assembly: Carefully thread the new drain assembly into the designated port on your Carvin CFR 50, Landslide, or Dirtbag filter tank. Hand-tighten first, then use a wrench to tighten securely, but do not overtighten as this can damage the threads or the assembly.
- Check for Leaks: Once installed, slowly repressurize the filter system and carefully check for any leaks around the new drain assembly. If leaks are detected, depressurize the system and re-tighten the assembly.

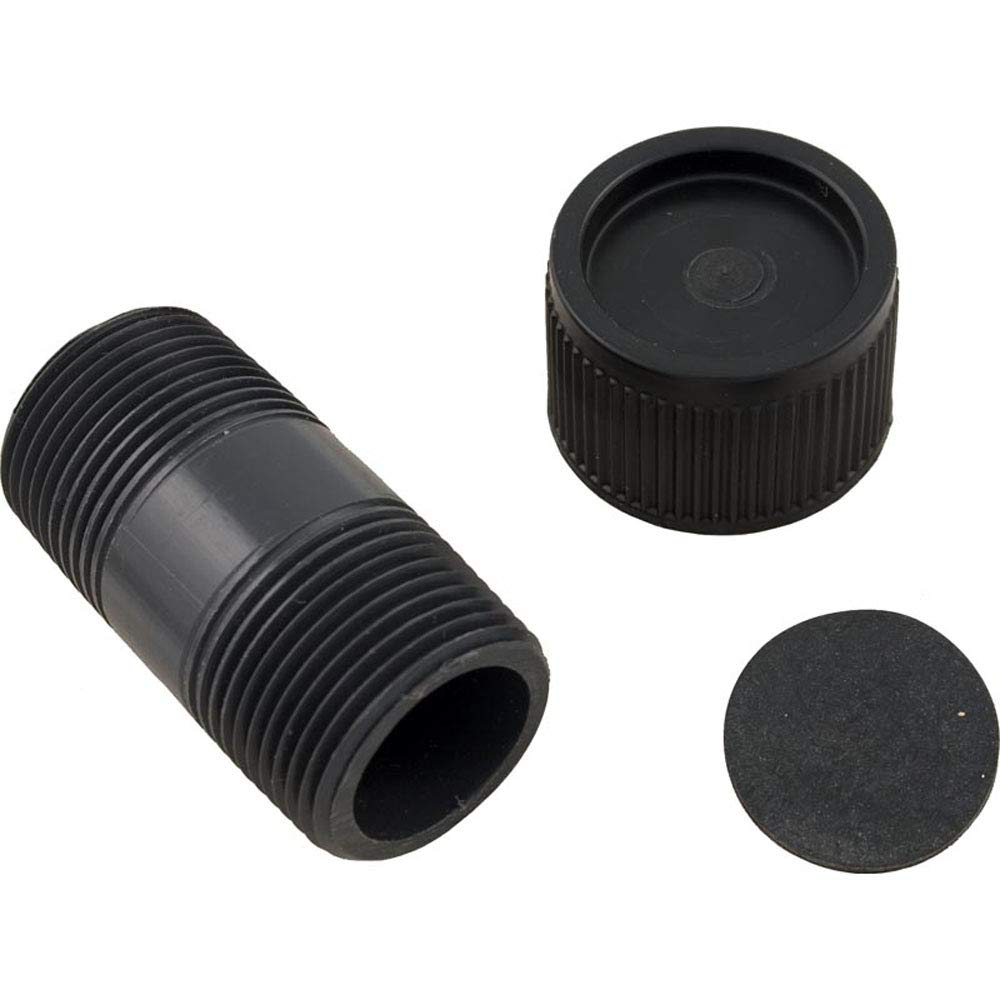

Image 1: The Jacuzzi Drain Assembly. This image shows the complete drain assembly, including the threaded body and cap, ready for installation into a compatible filter system.
Operating Instructions
The drain assembly allows for convenient draining of your filter tank. It typically consists of a threaded body and a cap or plug.
- To Drain the Filter:
- Turn off the pool/spa pump and ensure the filter system is depressurized.
- Carefully unscrew the drain cap or plug from the drain assembly.
- Allow the water to drain completely from the filter tank.
- To Close the Drain:
- Once draining is complete, screw the drain cap or plug back onto the drain assembly.
- Ensure it is hand-tightened securely to prevent leaks when the system is repressurized.
Maintenance
Regular maintenance ensures the longevity and proper function of your drain assembly.
- Periodic Inspection: Regularly inspect the drain assembly for any signs of wear, cracks, or leaks. Check the O-ring or gasket (if present) for deterioration.
- Cleaning: If debris accumulates around the drain opening, clean it gently to ensure proper water flow when draining.
- Replacement: If the drain assembly shows significant wear, damage, or persistent leaks that cannot be resolved by tightening or re-sealing, it should be replaced.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Water leaking from drain assembly. | Loose connection, damaged threads, worn O-ring/gasket, insufficient sealant. | Depressurize system, tighten assembly, inspect/replace O-ring/gasket, reapply thread sealant. |
| Difficulty unscrewing/screwing drain cap. | Cross-threaded, debris in threads, overtightened. | Clean threads, ensure proper alignment, avoid overtightening. If cross-threaded, replacement may be necessary. |
Specifications
- Product Dimensions: 3.05 x 2.85 x 1.55 inches
- Item Weight: 3.2 ounces
- Manufacturer: Carvin (for compatible filters) / Jacuzzi (for drain assembly)
- Compatibility: Carvin CFR 50, Landslide, Dirtbag filter systems
Warranty and Support
For specific warranty information regarding your Jacuzzi Drain Assembly, please refer to the documentation provided at the time of purchase or contact Jacuzzi customer support directly. Keep your proof of purchase for warranty claims.
For technical assistance or further inquiries, please visit the official Jacuzzi website or contact their customer service department.
