Introduction
This manual provides essential information for the safe and efficient operation of your Magic Chef MCAR320B2 3.2 cu.ft. All Refrigerator. Please read these instructions thoroughly before installation and use, and retain them for future reference. Proper installation, use, and maintenance will ensure optimal performance and longevity of your appliance.
Safety Information
Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.
- Read all instructions before using the appliance.
- Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
- Do not damage the refrigerant circuit.
- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
- Unplug the refrigerator before cleaning or performing any maintenance.
Setup and Installation
Unpacking Your Refrigerator
Carefully remove all packaging materials, including the foam base and adhesive tape holding accessories in place. Inspect the refrigerator for any damage. Keep packaging materials until you are satisfied with the product's condition.
Placement
Select a location with a strong, level floor capable of supporting the refrigerator when fully loaded. Avoid direct sunlight and heat sources. Ensure adequate air circulation around the unit. The flush-back design allows for flexible placement, but proper clearance is still necessary for ventilation.
- Allow at least 4 inches (10 cm) of space behind the unit for proper ventilation.
- Allow at least 1 inch (2.5 cm) of space on top and sides.

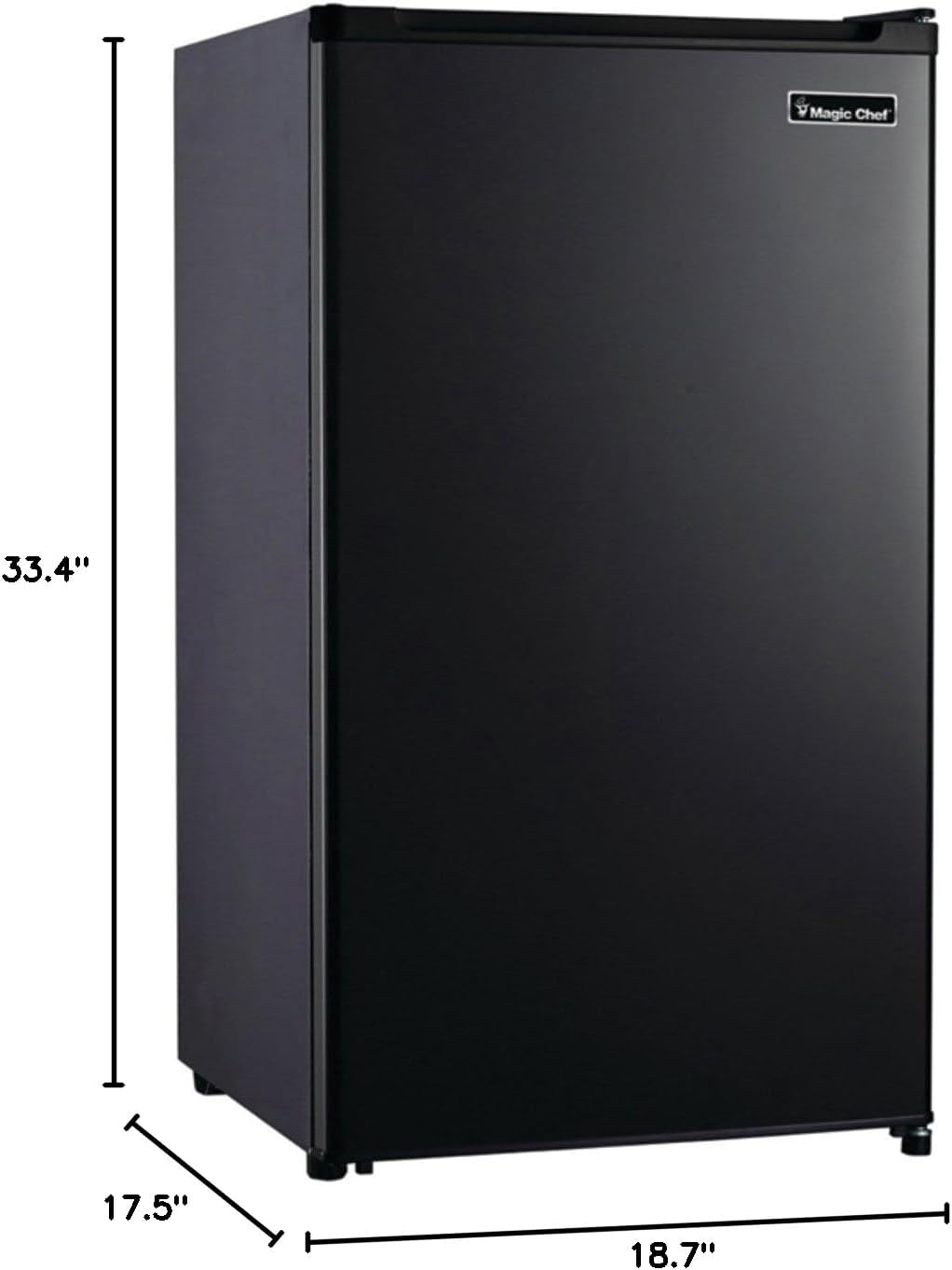

Image: Dimensions of the Magic Chef MCAR320B2 compact refrigerator. The image shows the height as 33.4 inches, width as 18.7 inches, and depth as 17.5 inches, indicating the overall size of the unit.
Leveling the Refrigerator
It is important for the refrigerator to be level for proper operation. Use the adjustable leveling legs at the bottom of the unit to achieve a stable and level position. Turn the leveling leg clockwise to raise that side, and counter-clockwise to lower it.
Door Reversal
The door hinges are reversible, allowing you to change the direction the door opens to suit your installation needs. Refer to the included hardware kit for specific instructions and tools required for this procedure. Ensure the refrigerator is unplugged before attempting door reversal.
Electrical Connection
Plug the refrigerator into a dedicated, grounded 120V, 60Hz AC outlet. Do not use extension cords or adapter plugs. Allow the refrigerator to stand upright for at least 2-4 hours before plugging it in to allow the refrigerant to settle.
Operating Instructions
Temperature Control
The refrigerator is equipped with an adjustable thermostat control. The control dial is typically located inside the refrigerator compartment. Turn the dial to adjust the cooling intensity. A higher number generally indicates colder temperatures. Allow several hours for the temperature to stabilize after making adjustments.
Image: Interior view of the Magic Chef MCAR320B2 refrigerator with the door open, showing empty glass shelves, a crisper drawer at the bottom, and door storage compartments. The thermostat control is visible at the top right.
Food Storage
The refrigerator features two removable glass shelves, a crisper drawer with cover, and a 12-oz. beverage can dispenser in the door. Arrange items to allow for proper air circulation. Avoid overfilling the refrigerator, as this can impede cooling efficiency.
- Glass Shelves: Adjustable for flexible storage of various items.
- Crisper Drawer: Ideal for storing fruits and vegetables to maintain freshness.
- Door Storage: Designed for bottles, cans, and smaller items.
Image: Interior view of the Magic Chef MCAR320B2 refrigerator with the door open, showing it stocked with various food and beverage items. This includes a large soda bottle, canned beverages in a dispenser, small containers, fruits, and eggs, demonstrating its storage capacity.
Maintenance
Cleaning Your Refrigerator
Regular cleaning helps maintain hygiene and efficiency. Always unplug the refrigerator before cleaning.
- Interior: Wash interior surfaces with a solution of warm water and baking soda (2 tablespoons baking soda to 1 quart water). Rinse and dry thoroughly.
- Exterior: Clean the exterior with a mild detergent and warm water. Wipe dry with a soft cloth.
- Door Gasket: Clean the door gasket regularly to ensure a proper seal.
- Do not use harsh chemicals, abrasive cleaners, or scouring pads, as they can damage surfaces.
Defrosting
This refrigerator features a frost-free defrost system, which automatically manages ice buildup. Manual defrosting is generally not required. However, if excessive frost accumulates, unplug the unit and allow the frost to melt naturally, then wipe dry.
Troubleshooting
Before contacting service, review this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator does not operate. | Not plugged in; circuit breaker tripped; temperature control set to "OFF". | Ensure plug is secure; reset circuit breaker; adjust temperature control. |
| Temperature is too warm. | Door opened too frequently; warm food placed inside; poor air circulation; thermostat setting too high. | Minimize door openings; allow hot food to cool before storing; ensure proper clearance; adjust thermostat to a colder setting. |
| Unusual noises. | Refrigerator not level; items vibrating inside; normal compressor operation. | Level the unit; rearrange items; some operational sounds are normal. |
| Excessive condensation/ice on back wall. | High humidity; door not sealed properly; door opened frequently. | Ensure door closes completely; minimize door openings; check door gasket for damage. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Magic Chef |
| Model Number | MCAR320B2 |
| Capacity | 3.2 Cubic Feet |
| Product Dimensions (D x W x H) | 17.5 x 18.7 x 33.4 inches |
| Item Weight | 46.7 Pounds |
| Color | Black |
| Installation Type | Freestanding |
| Defrost System | Frost Free |
| Voltage | 120 Volts |
| Shelf Type | Glass Shelves |
| Door Hinges | Reversible |
Warranty and Support
For warranty information and customer support, please refer to the warranty card included with your purchase or visit the official Magic Chef website. Keep your proof of purchase for warranty claims.
For further assistance, you may contact Magic Chef customer service directly. Contact details are typically available on the manufacturer's website or in the product packaging.
