Hecht 5564 SXE Gasoline Lawn Mower User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Hecht 5564 SXE Gasoline Lawn Mower. Please read this manual thoroughly before operating the machine to ensure proper use and to prevent injury or damage.

Safety Information

Always wear appropriate personal protective equipment (PPE) including eye protection, hearing protection, and sturdy footwear when operating the lawn mower. Keep bystanders, especially children and pets, away from the operating area. Never operate the mower in wet grass or adverse weather conditions. Ensure the engine is off and cool before performing any maintenance or adjustments.

2. Setup and Assembly

Your Hecht 5564 SXE lawn mower requires some assembly before first use. Follow these steps carefully.

2.1 Unpacking

Carefully remove all components from the packaging. Check for any damage during transit. Retain packaging for future storage or transport.

2.2 Handle Assembly

Attach the upper handle to the lower handle using the provided bolts and knobs. Ensure all connections are secure.

Figure 2.2.1: Ergonomic handle design for comfortable operation.

Figure 2.2.2: Control panel on the handle, including throttle and drive levers.

2.3 Adding Fuel and Oil

Before starting, fill the engine with appropriate engine oil (refer to specifications for type and quantity) and fresh unleaded gasoline. Do not overfill. Always refuel in a well-ventilated area with the engine off and cool.

Figure 2.3.1: Fuel valve location near the engine.

3. Operating Instructions

3.1 Starting the Engine

1. Ensure the spark plug wire is securely attached.
2. Move the throttle lever to the "START" or "CHOKE" position.
3. Firmly pull the starter cord until the engine starts.
4. Once started, move the throttle lever to the "RUN" position.

Figure 3.1.1: Engine control lever (GO/STOP).

3.2 Mowing

Adjust the cutting height using the lever near the wheels. For best results, avoid cutting more than one-third of the grass blade length at a time. Overlap cutting paths slightly to ensure even coverage.

Figure 3.2.1: Hecht 5564 SXE Gasoline Lawn Mower in operation configuration.

3.3 Stopping the Engine

Release the engine control lever (bail bar) on the handle. The engine should stop automatically. If it does not, move the throttle lever to the "STOP" position. Disconnect the spark plug wire for safety when not in use.

4. Maintenance

Regular maintenance ensures the longevity and optimal performance of your lawn mower.

4.1 Cleaning

After each use, clean grass clippings from the underside of the mower deck. Use a brush or scraper. Do not use a high-pressure washer directly on the engine or electrical components.

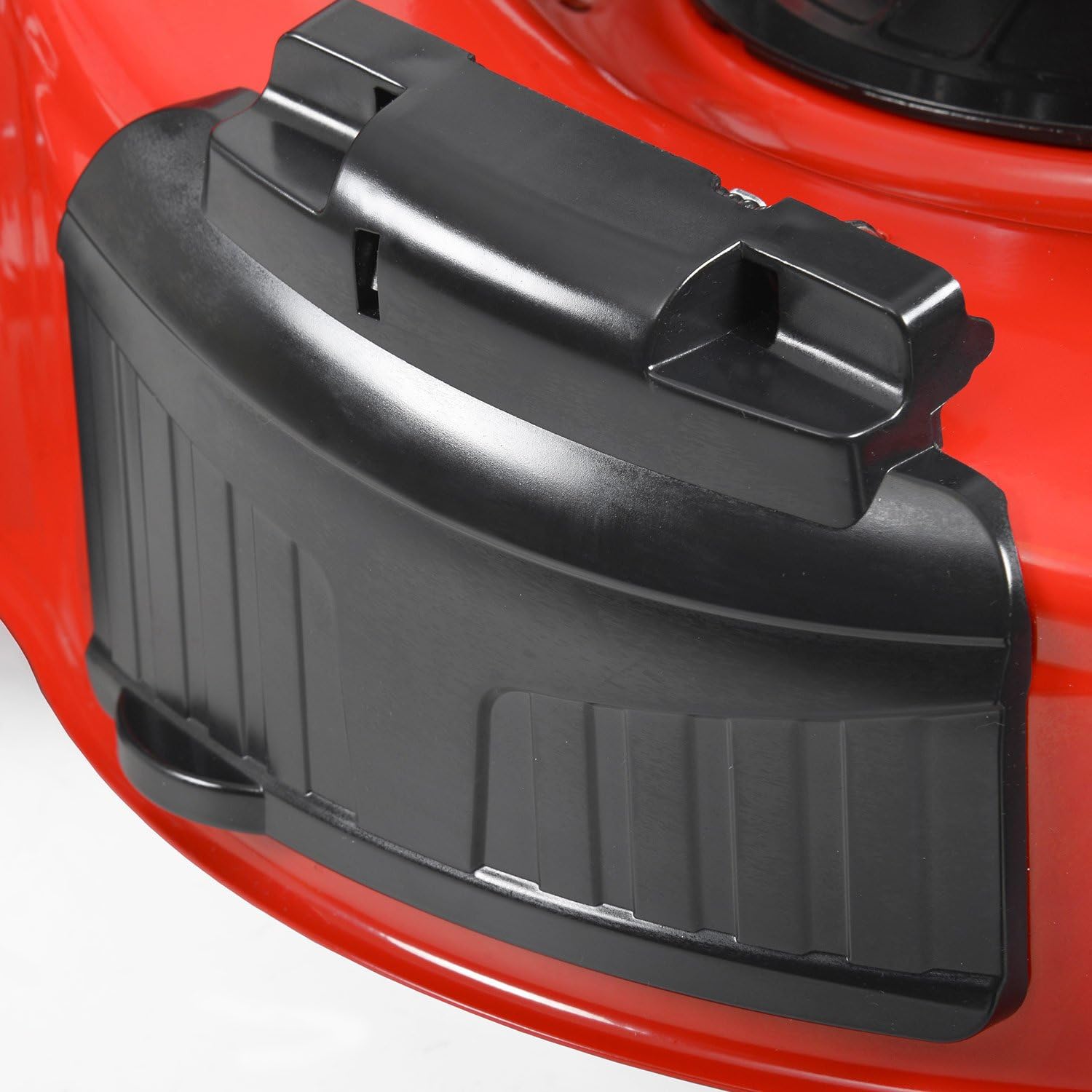

Figure 4.1.1: Side discharge chute for grass clippings.

Figure 4.1.2: Mulching plug for converting to mulching mode.

4.2 Air Filter Inspection

Check the air filter regularly and clean or replace it if it is dirty. A clogged air filter can reduce engine performance.

Figure 4.2.1: Air filter location and appearance.

4.3 Oil Change

Change the engine oil after the first 5 hours of operation, and then every 25 hours or annually, whichever comes first. Refer to the engine manual for specific oil type and capacity.

4.4 Spark Plug

Inspect the spark plug annually. Clean or replace if necessary. Ensure the gap is set correctly.

Figure 4.4.1: Engine overview, showing spark plug location (under the black cap).

4.5 Storage

For long-term storage, drain the fuel tank or add a fuel stabilizer. Clean the mower thoroughly and store it in a dry, well-ventilated area, away from direct sunlight and extreme temperatures.

5. Troubleshooting

6. Specifications

• Brand: Hecht
• Model: 5564SXE
• Part Number: HT 5564 SXE
• Power Source: Gasoline powered
• Horsepower: 6 HP
• Cutting Width: 56 cm
• Material: Plastic (body components)
• Item Weight: 102.07 pounds (approx. 46.3 kg)
• Package Dimensions: 155 x 108 x 55 cm
• Batteries Included: Yes (for electric start, if applicable)
• Operation Mode: Manual (push)
• GTIN: 08595614904087

7. Warranty and Support

For warranty information, please refer to the warranty card included with your product or visit the official Hecht website. For technical support or spare parts, please contact Hecht customer service.

Hecht Official Website: www.hecht.cz (Note: This is a general link, specific regional support may vary.)
