BenQ XL2730Z 27-inch LED-Lit Monitor User Manual

Introduction

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your BenQ XL2730Z 27-inch LED-Lit Monitor. Please read this manual thoroughly before using the monitor to ensure proper functionality and to maximize your viewing experience.

The BenQ XL2730Z is designed for high-performance use, featuring a QHD resolution, 144Hz refresh rate, and 1ms GTG response time, along with VESA Standard Adaptive-Sync technology for smooth visuals.

Important Safety Information

• Always place the monitor on a stable, level surface.
• Do not block ventilation openings.
• Use only the power adapter and cables provided by BenQ.
• Keep the monitor away from water and excessive moisture.
• Avoid exposing the monitor to direct sunlight or high temperatures.
• Disconnect the power cable before cleaning or if the monitor will not be used for an extended period.

What's in the Box

Verify that all items are present in the packaging:

• BenQ XL2730Z LED-backlit LCD monitor - 27"
• Monitor Stand (Base and Neck)
• DVI cable
• SuperSpeed USB cable
• DisplayPort cable
• Power cable
• S Switch remote control
• User Manual (this document)

Image: Front view of the BenQ XL2730Z monitor, showcasing its design and the BenQ logo on the screen.

Setup Instructions

1. Assembling the Monitor Stand

1. Carefully remove the monitor and stand components from the packaging.
2. Attach the stand neck to the monitor panel. Ensure it clicks securely into place.
3. Attach the stand base to the stand neck. Tighten the screw at the bottom of the base to secure it.

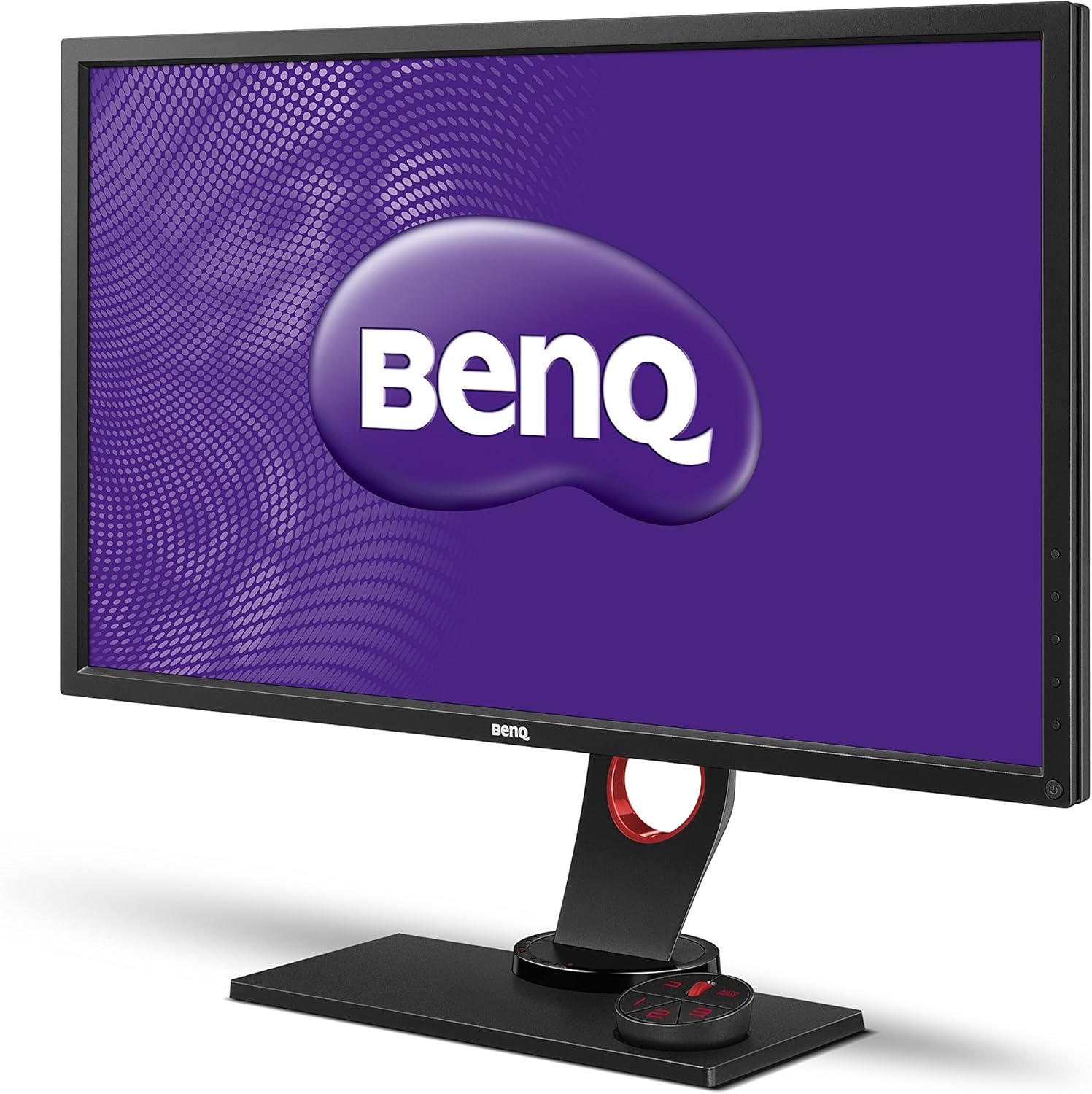

Image: Angled view of the BenQ XL2730Z monitor, showing the assembled stand and the S Switch Arc controller.

2. Connecting the Monitor

Connect the necessary cables to the corresponding ports on the monitor and your computer.

• Power Cable: Connect one end of the power cable to the monitor's power input and the other end to a power outlet.
• Video Cable:
  • For optimal performance, use the provided DisplayPort cable to connect to your computer's DisplayPort output.
  • Alternatively, use an HDMI or DVI cable. The monitor has 2 HDMI ports.
• USB Cable: Connect the SuperSpeed USB cable from your computer to the monitor's upstream USB port to enable the monitor's USB hub functionality (4 USB ports available, 2 of which are USB 2.0).
• S Switch Arc: Connect the S Switch Arc remote control to its dedicated port on the monitor base for easy access to settings.

Image: Side view of the BenQ XL2730Z monitor, highlighting the input ports for power, video, and USB connections.

3. Initial Power On

Press the power button on the monitor. The power indicator will light up, and the BenQ logo will appear on the screen. If no image appears, ensure all cables are securely connected and your computer is powered on.

Operating Instructions

1. Adjusting Display Settings

The BenQ XL2730Z offers various settings to optimize your viewing experience. Access the On-Screen Display (OSD) menu using the buttons on the monitor or the S Switch Arc.

• Resolution & Refresh Rate: The monitor supports QHD (2560x1440) resolution and a 144Hz refresh rate. Ensure your graphics card settings are configured to utilize these capabilities for the smoothest performance.
• Color Vibrancy: Adjust the 20-level Color Vibrancy setting to fine-tune color saturation and hue to your preference.
• Black Equalizer: This feature enhances visibility in dark scenes by automatically adjusting brightness without overexposing bright areas.
• Motion Blur Reduction: Activate this setting to reduce motion blur, especially beneficial in fast-paced gaming scenarios.
• Adaptive-Sync (FreeSync): When connected via DisplayPort to a compatible graphics card, Adaptive-Sync technology synchronizes the monitor's refresh rate with the GPU's frame rate to eliminate screen tearing and stuttering.
• Low Blue Light & Zero Flicker: These technologies are integrated to reduce eye strain during extended use.

2. Using the S Switch Arc

The S Switch Arc is an external controller designed for quick access and customization of display settings. It features preset buttons that can be configured for different usage scenarios (e.g., gaming, work, entertainment).

• Customization: Assign your preferred display settings to the preset buttons for instant recall.
• Navigation: Use the dial and buttons to navigate the OSD menu efficiently.

3. Auto Game Mode

The Auto Game Mode feature allows the XL2730Z to detect the genre of the game being played and automatically switch to the corresponding game mode, optimizing display settings for that specific game type.

Maintenance

Cleaning the Monitor

• Always power off the monitor and unplug the power cord before cleaning.
• Use a soft, lint-free cloth slightly dampened with water or a mild, non-abrasive screen cleaner.
• Do not spray cleaner directly onto the screen. Apply it to the cloth first.
• Avoid using harsh chemicals, solvents, or abrasive materials, as these can damage the screen or casing.
• Wipe the screen gently to remove dust and smudges.

Troubleshooting

If you encounter issues with your BenQ XL2730Z monitor, refer to the following common problems and solutions:

If the problem persists after trying these solutions, please contact BenQ customer support for further assistance.

Technical Specifications

Warranty and Support

Your BenQ XL2730Z monitor is covered by a limited warranty. For detailed warranty terms and conditions, please refer to the warranty card included with your product or visit the official BenQ website.

For technical support, service, or inquiries regarding your product, please contact BenQ customer support. Contact information can typically be found on the BenQ website or in your product documentation.

BenQ Official Website: www.benq.com
