1. Setup
1.1 Unpacking and Included Components
Carefully remove the television and all components from the packaging. Ensure all items listed below are present:
- Sharp LC-55LE653U 55-Inch Smart LED TV
- Remote Control
- TV Stand
- AA Batteries (2)
- Power Cord
- Documentation (Quick Start Guide, Safety Information)
1.2 Installing the TV Stand
To install the TV stand, place the television screen-down on a soft, clean surface to prevent scratches. Align the stand with the mounting holes on the bottom of the TV and secure it using the provided screws. Refer to the diagram below for proper alignment.
Figure 1.2.1: Side view of the TV showing the stand attachment point.
1.3 Connecting External Devices
The Sharp LC-55LE653U offers various ports for connecting external devices. Ensure the TV is powered off before making any connections.
Figure 1.3.1: Detailed view of the TV's input and output ports.
- HDMI Ports (3): Connect Blu-ray players, gaming consoles, cable/satellite boxes, or other HDMI-compatible devices. One HDMI port supports MHL (Mobile High-Definition Link).
- USB Ports (1): Connect USB storage devices for media playback.
- Component/Video Input: For older devices using component (YPbPr) or composite video connections.
- Optical Audio Output: For connecting to a soundbar or home theater system.
- Ethernet Port: For a wired internet connection.
- Antenna/Cable Input: For connecting an antenna or cable TV signal.
1.4 Powering On the TV
After connecting all desired devices, plug the power cord into the TV and then into a wall outlet. Press the Power button on the remote control or on the TV itself to turn on the television.
2. Operating Instructions
2.1 Remote Control Overview
The included remote control provides full functionality for your Sharp TV. Insert the two AA batteries into the remote control, observing polarity.
Figure 2.1.1: Layout of the Sharp TV remote control.
- Power Button: Turns the TV on or off.
- Input Button: Selects the input source (HDMI, USB, Component, etc.).
- Volume Up/Down: Adjusts the audio volume.
- Channel Up/Down: Changes TV channels.
- Smart Button: Accesses the Smart Central Apps interface.
- Menu Button: Opens the TV's main settings menu.
- Navigation Pad (Up/Down/Left/Right/Enter): Navigates menus and selects options.
- Netflix Button: Direct access to the Netflix application.
2.2 Smart Central Apps
The Smart Central Apps feature provides access to various streaming services and online content. Press the 'Smart' button on your remote to access this interface.
Figure 2.2.1: The Smart Central Apps home screen.
Available applications include Netflix, YouTube, Pandora, Vudu, and Hulu Plus. An internet connection (Wi-Fi or Ethernet) is required to use Smart Central Apps.
2.3 Picture and Sound Settings
Access the TV's menu to adjust picture and sound settings. Key features include:
- AquoMotion 120: Enhances motion clarity for fast-moving scenes. This setting can be adjusted to suit viewing preferences.
- Resolution: The TV supports 1080p Full HD resolution.
- Aspect Ratio: Adjust to 16:9 or other available options to fit the content.
- Sound Output: The TV features built-in 20-watt speakers. External audio systems can be connected via the optical audio output or HDMI ARC (if available on your sound system).
2.4 Wallpaper Mode
When the TV is turned off, Wallpaper Mode allows it to display virtually any image, transforming the screen into a large photo frame. This feature can be configured in the TV's settings menu.
3. Maintenance
3.1 Cleaning the TV
To clean the screen, gently wipe it with a soft, dry, lint-free cloth. For stubborn marks, slightly dampen the cloth with water or a specialized screen cleaner. Do not use harsh chemicals or abrasive materials. For the TV casing, use a soft, dry cloth.
3.2 Software Updates
Periodically check for software updates through the TV's settings menu. Updates can improve performance, add new features, or resolve issues. An active internet connection is required for software updates.
4. Troubleshooting
If you encounter issues with your TV, refer to the following common solutions before contacting support.
| Problem | Possible Solution |
|---|---|
| TV does not turn on. |
|
| No picture or poor picture quality. |
|
| No sound or poor sound quality. |
|
| Smart features (Netflix, YouTube) not working. |
|
5. Specifications
Below are the key technical specifications for the Sharp LC-55LE653U TV.
| Feature | Detail |
|---|---|
| Model Name | LC-55LE653U |
| Screen Size | 55 Inches (54.6" diagonal) |
| Display Technology | LED LCD |
| Resolution | 1080p Full HD |
| Refresh Rate | 60 Hz (AquoMotion 120) |
| Aspect Ratio | 16:9 |
| Contrast Ratio | 4,000,000:1 |
| Response Time | 2 Milliseconds |
| Connectivity | Wi-Fi, Ethernet |
| HDMI Ports | 3 (one with MHL support) |
| USB Ports | 1 |
| Audio Output | Optical, Built-in speakers (20 Watts) |
| Product Dimensions (with stand) | 48.82" W x 30.08" H x 13.19" D |
| Item Weight (with stand) | 38.6 Pounds |
| Voltage | 120 Volts |
| Included Components | TV, Remote Control, Stand, Batteries |

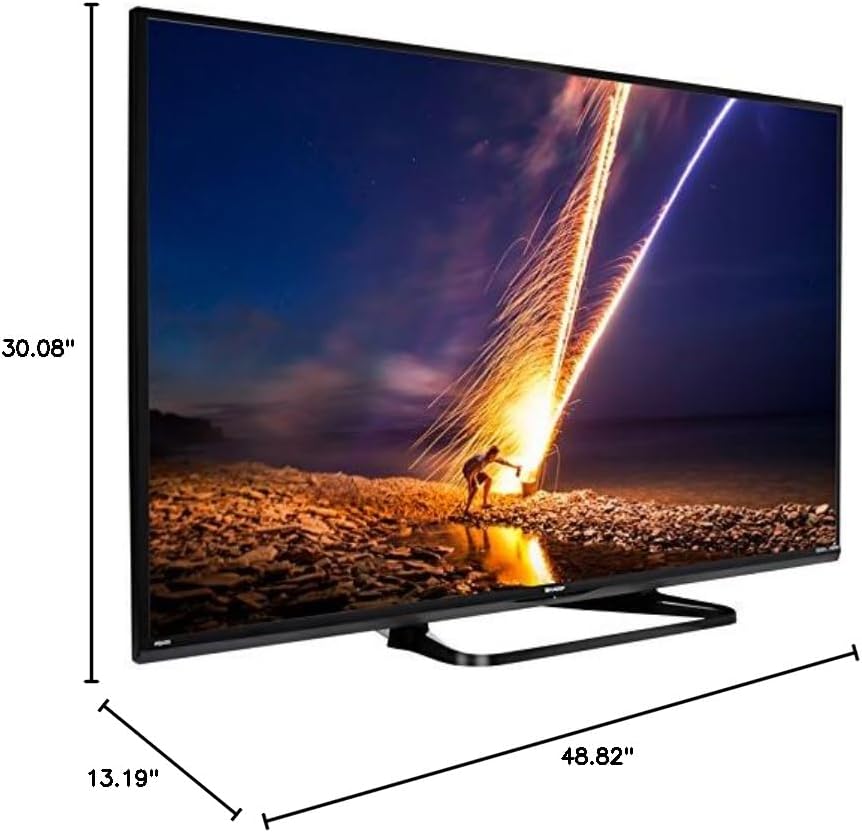

Figure 5.1.1: Product dimensions of the Sharp LC-55LE653U TV.
6. Warranty Information
The Sharp LC-55LE653U television comes with a 1-year limited warranty from the date of purchase. This warranty covers manufacturing defects and workmanship under normal use. For specific terms, conditions, and limitations, please refer to the warranty documentation included with your product or contact Sharp customer support.
7. Customer Support
For technical assistance, service, or warranty claims, please contact Sharp customer support. Have your TV model number (LC-55LE653U) and purchase information ready when you call.
- Manufacturer: Sharp Electronics FOB
- Refer to the official Sharp website or your product documentation for the most current contact information.
