Craftmade Colossus 96-Inch Outdoor Ceiling Fan

Introduction

This manual provides essential instructions for the safe installation, operation, and maintenance of your Craftmade Colossus 96-inch outdoor ceiling fan, model COL96BN6. Please read all instructions carefully before beginning installation to ensure proper function and safety.

Safety Information

• Electrical Safety: Always disconnect power at the circuit breaker before installing, cleaning, or servicing the fan. Ensure all electrical connections comply with local codes and ordinances.
• Mounting Location: The fan must be mounted to a structurally sound ceiling joist or outlet box capable of supporting the fan's weight.
• Blade Clearance: For safety, the fan blades are recommended to be mounted a minimum of 10 feet (3.05 meters) above the floor. Ensure there is adequate clearance from walls and other obstructions.
• Damp Location Approved: This fan is UL Approved for Damp Locations, making it suitable for covered outdoor areas. Do not expose to direct water spray.
• Proposition 65 Warning: This product may expose you to chemicals known to the State of California to cause cancer or birth defects or other reproductive harm.

Package Contents

Verify that all components are present before beginning installation:

• Colossus 96-inch Ceiling Fan Motor Housing (Brushed Pewter)
• Six (6) Brushed Satin Nickel Aluminum Blades
• 6-inch Downrod
• Ceiling Mount Canopy
• IDC - Six-Speed Remote Control
• Wall Control
• Hardware Pack (screws, washers, wire nuts, etc.)

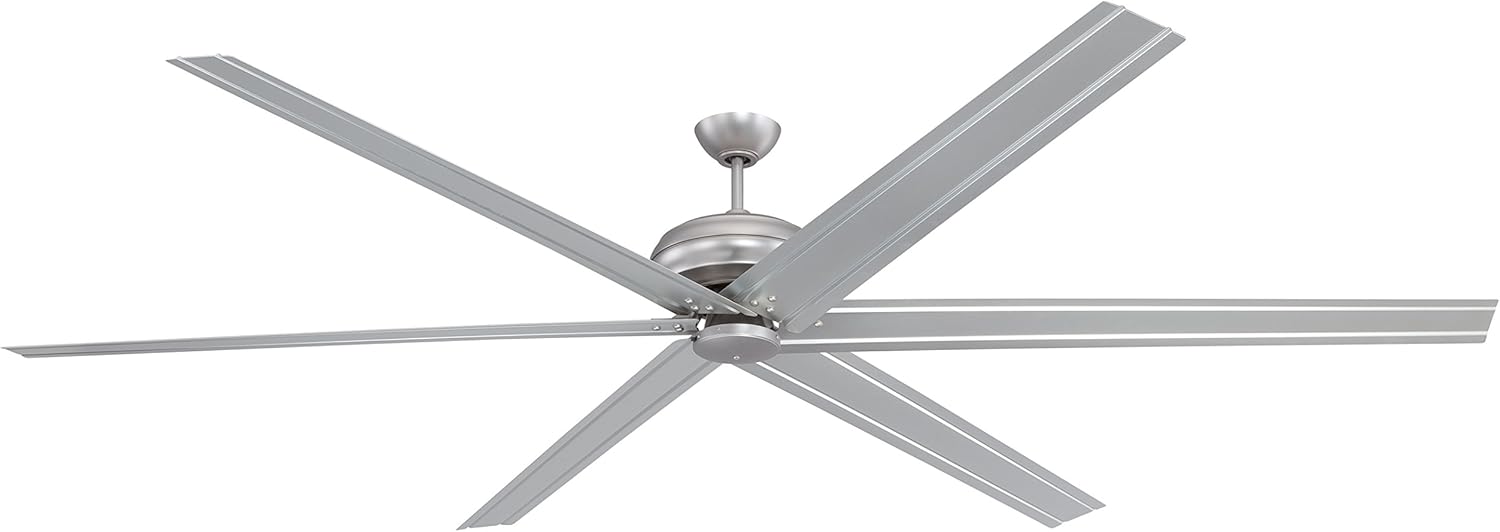

Image: The Craftmade Colossus 96-inch ceiling fan, showcasing its brushed pewter finish and six large blades.

Setup and Installation

Professional installation is recommended for ceiling fans. Ensure you have the necessary tools and follow all local electrical codes.

Mounting Considerations:

• Mounting Type: This fan supports dual mount installation, suitable for both flat and angled ceilings.
• Dimensions: The fan has an overall height of 16.54 inches (42.01 cm) from ceiling to the bottom of the fan, and 14.4 inches (36.58 cm) from ceiling to blades with the included 6-inch downrod. The ceiling mount canopy is 5.96 inches (15.14 cm) in diameter.

Image: A technical diagram illustrating the key dimensions of the Craftmade Colossus 96-inch ceiling fan, including overall height, downrod length, and canopy diameter.

Installation Steps (General Overview):

1. Turn off power at the main circuit breaker.
2. Install the mounting bracket to the ceiling outlet box.
3. Assemble the downrod and hang the fan motor assembly.
4. Complete electrical wiring connections (refer to detailed wiring diagrams in the full manual).
5. Attach the fan blades to the motor housing.
6. Secure the canopy to the mounting bracket.
7. Install the remote receiver and wall control (if applicable).
8. Restore power and test fan operation.

Operating Instructions

Your Craftmade Colossus fan is controlled by an included IDC - Six-Speed Remote and Wall Control.

Remote Control Functions:

• Power On/Off: Press the power button to turn the fan on or off.
• Speed Control: Use the speed buttons to select one of six available fan speeds.
• Reverse Function: The remote includes a reverse function to change the direction of blade rotation, allowing for seasonal use (downward airflow for cooling in summer, upward airflow for heat circulation in winter).

Wall Control Functions:

The included wall control provides similar functionality to the remote, allowing for convenient operation from a fixed location.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your ceiling fan.

• Cleaning: Periodically clean the fan blades and motor housing with a soft, damp cloth. Avoid using abrasive cleaners or solvents that could damage the finish.
• Blade Fasteners: Check all blade attachment screws and other fasteners annually to ensure they are secure. Loose fasteners can cause noise and wobble.
• Motor Lubrication: The fan motor is permanently lubricated and does not require additional oiling.

Troubleshooting

If you experience issues with your fan, consult the following common troubleshooting steps:

• Fan Does Not Start: Check that the power is on at the circuit breaker and wall switch. Ensure all wire connections are secure. Verify remote control batteries are functional.
• Fan Wobbles: Ensure all blade screws are tightened. Check that the mounting bracket is securely fastened to the ceiling. Verify the downrod is properly seated.
• Noisy Operation: Confirm all screws are tight. Check for any obstructions in the fan's path. Ensure the canopy is not vibrating against the ceiling.
• Remote Control Not Working: Replace batteries. Ensure the remote receiver is properly installed and wired.

Specifications

Image: A detailed table outlining the key specifications of the Craftmade Colossus 96-inch ceiling fan, including mounting type, control, blades, airflow, and motor size.

Energy Information (at High Speed):

Image: A chart displaying the energy information for the fan at high speed, including airflow (13644 Cubic Feet Per Minute), electricity use (32 Watts), and airflow efficiency (426 Cubic Feet Per Minute Per Watt).

Warranty

This Craftmade Colossus ceiling fan is covered by a 1 Year Manufacturer Warranty. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the warranty documentation included with your product or contact Craftmade customer support.

Support

For further assistance, technical support, or to inquire about replacement parts, please contact Craftmade customer service. Contact information can typically be found on the manufacturer's website or in the packaging materials.
