Siamp 36955510 Toilet Flush Mechanism Instruction Manual

1. Introduction

Thank you for choosing the Siamp 36955510 Toilet Flush Mechanism. This product is designed to provide efficient and reliable flushing for your toilet cistern. Featuring a side water supply and a silent valve, it ensures quiet operation and ease of use. This manual provides essential information for the safe installation, operation, and maintenance of your new flush mechanism. Please read these instructions carefully before installation and retain them for future reference.

2. Product Overview

The Siamp 36955510 is a complete toilet flush mechanism designed for cisterns with a side water inlet. Its key features include:

• Disengageable Push Button: Allows for control over the flush duration, potentially saving water.
• Side Water Supply: Compatible with cisterns where the water inlet is located on the side.
• Silent Valve: Engineered for quiet refilling of the cistern.
• Durable Material: Constructed from thermoplastic for longevity.

3. Safety Information

Please observe the following safety precautions:

• Always turn off the main water supply to the toilet before beginning any installation or maintenance work.
• Wear appropriate personal protective equipment, such as gloves and eye protection, if necessary.
• If you are unsure about any part of the installation process, consult a qualified plumber.
• Keep small parts out of reach of children to prevent choking hazards.
• Do not use excessive force when tightening connections to avoid damaging components.

4. Package Contents

Verify that all components are present before starting installation:

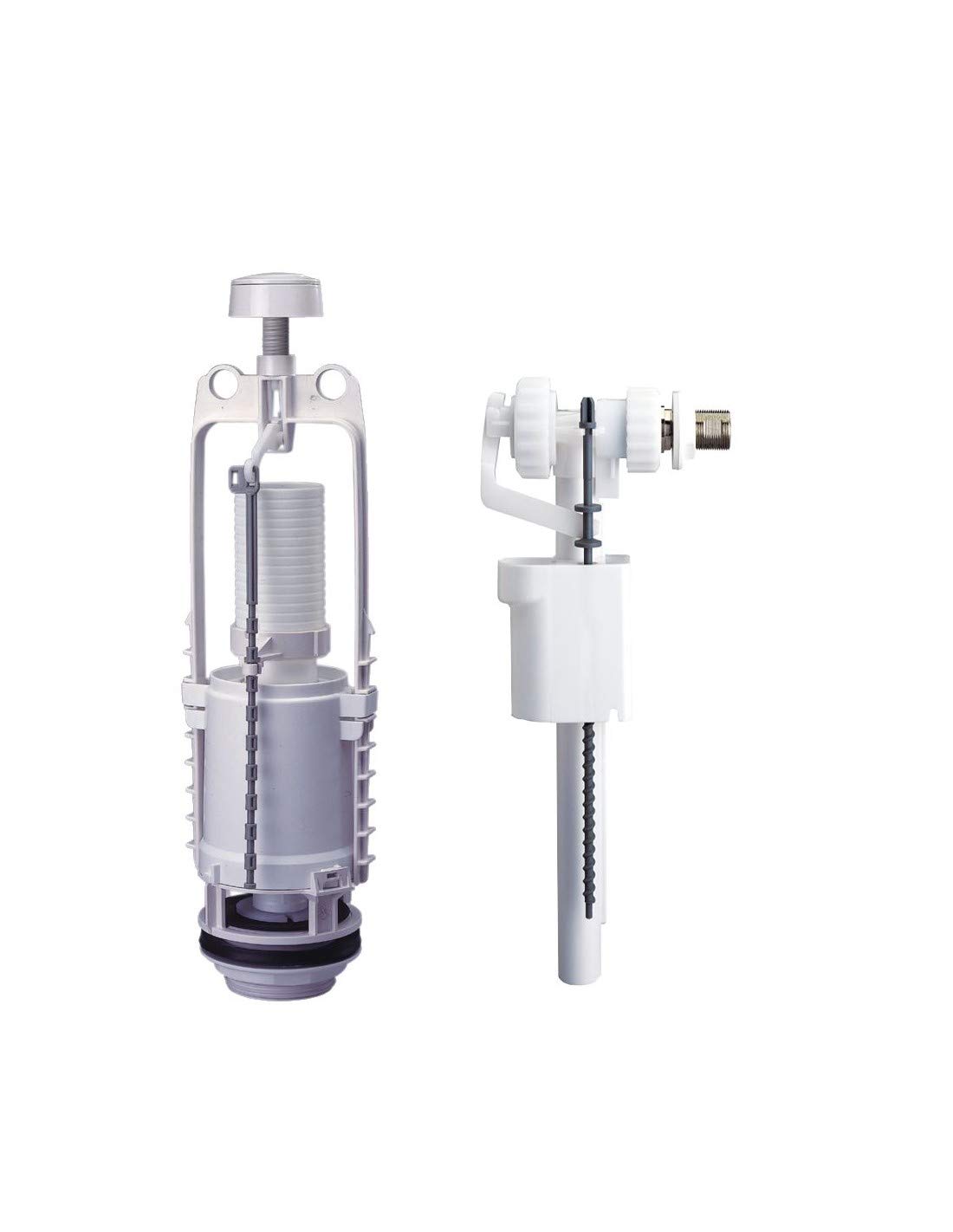

• Siamp 36955510 Flush Mechanism (Flush Valve and Fill Valve assembly)
• Push Button Assembly
• Cistern Fixing Nut and Washer
• Inlet Pipe Washer and Nut
• Sealing Gaskets

Note: Specific tools required for installation (e.g., adjustable wrench, screwdriver) are not included.

5. Setup and Installation

Follow these steps to install the Siamp 36955510 flush mechanism:

1. Prepare the Cistern:
   • Turn off the water supply to the toilet.
   • Flush the toilet to empty the cistern.
   • Disconnect the water supply pipe from the old fill valve.
   • Remove the old flush mechanism and fill valve from the cistern. Clean any residue from the cistern base.
2. Install the Fill Valve (Side Inlet):
   • Insert the new fill valve into the side inlet hole of the cistern. Ensure the rubber washer is on the inside of the cistern.
   • Secure the fill valve from the outside with the plastic nut, hand-tightening first, then gently with a wrench to ensure a watertight seal. Do not overtighten.
3. Install the Flush Valve:
   • Place the large sealing gasket onto the base of the flush valve.
   • Insert the flush valve into the large opening at the bottom center of the cistern.
   • From underneath the cistern, secure the flush valve with the large fixing nut. Hand-tighten, then use a wrench for a snug, watertight fit.
4. Connect the Push Button:
   • Place the cistern lid back on the cistern.
   • Insert the push button assembly through the hole in the cistern lid and connect it to the top of the flush valve mechanism according to the manufacturer's design.
   • Adjust the push button rods if necessary to ensure proper engagement with the flush valve.
5. Reconnect Water Supply and Test:
   • Reconnect the water supply pipe to the new fill valve.
   • Slowly turn on the main water supply to the toilet.
   • Check for any leaks around the fill valve and flush valve connections.
   • Allow the cistern to fill, then perform several test flushes to ensure proper operation and water level.

6. Operating Instructions

The Siamp 36955510 flush mechanism features a disengageable push button for flushing:

• Standard Flush: Press the push button down completely and release. The cistern will empty fully.
• Water-Saving Flush (Disengageable Function): Press the push button down. Water will begin to flush. To stop the flush prematurely and save water, press the button again. This allows you to control the amount of water used per flush.

7. Maintenance

Regular maintenance helps ensure the longevity and efficient operation of your flush mechanism:

• Cleaning: Periodically clean the cistern interior and the flush mechanism components to prevent limescale buildup and debris accumulation. Use a non-abrasive cleaner.
• Check Seals: Inspect the rubber seals and washers annually for signs of wear or deterioration. Replace them if they appear cracked or hardened to prevent leaks.
• Water Level Adjustment: If the water level in the cistern is too high or too low, adjust the float mechanism on the fill valve according to its specific design (usually by turning a screw or sliding a clip).
• Filter Cleaning (if applicable): Some fill valves have a small filter at the water inlet. If water flow is reduced, turn off the water, disconnect the supply, and check/clean this filter.

8. Troubleshooting

Here are solutions to common issues you might encounter:

If problems persist after attempting these solutions, it is recommended to contact a qualified plumber.

9. Specifications

10. Warranty and Support

Specific warranty information for the Siamp 36955510 flush mechanism is not provided within this manual. For details regarding warranty coverage, terms, and conditions, please refer to the documentation included with your purchase or contact the retailer from whom you purchased the product. For technical support or further assistance, please reach out to Siamp customer service or your local plumbing professional.
