Johnson Evinrude OMC E-TEC Outboard Motor Storage Cover 0768133 User Manual

1. Introduction

This manual provides essential information for the proper installation, use, and maintenance of your Johnson Evinrude OMC Black E-TEC Outboard Motor Storage Cover, Model 0768133. This cover is a genuine factory original equipment accessory designed to protect your outboard motor.

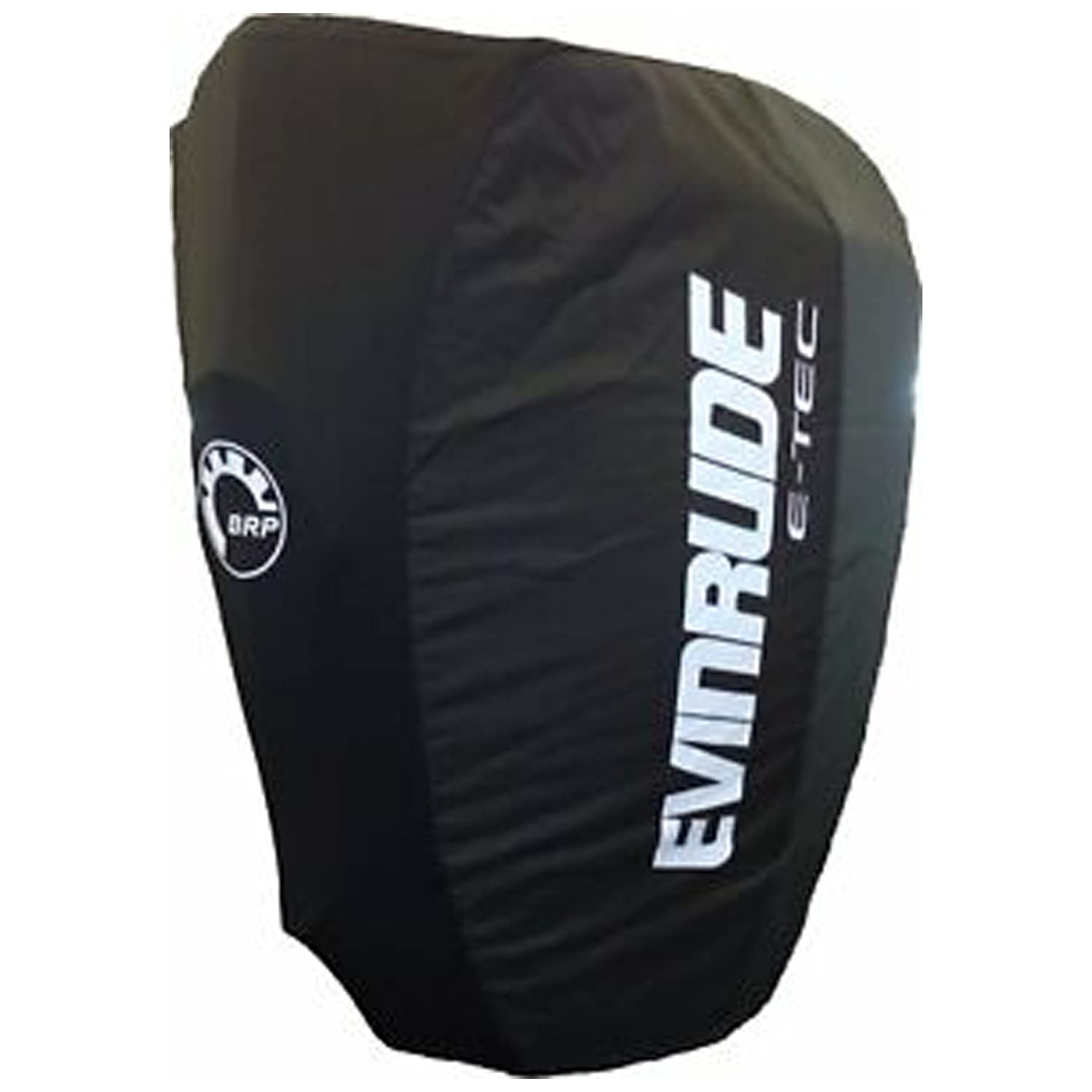

Figure 1: Johnson Evinrude OMC Black E-TEC Outboard Motor Storage Cover (Model 0768133). This image shows the black cover designed for an E-TEC outboard motor, highlighting its form-fitting design.

The cover is constructed from tough synthetic fabric, featuring an elastic midsection for the front and rear panels, and padding for the sides. It is designed to protect the motor's finish during trailering or storage. Key features include a reinforced patch for the tell-tale's protrusion and a buckle with an elastic string and clasp for secure attachment.

2. Safety Information

Please read and understand all safety information before using this product. Failure to follow these instructions may result in damage to the product or motor.

• Ensure the motor is cool before applying the cover to prevent heat damage to the cover material.
• Verify that the cover is securely fastened using the buckle and elastic string to prevent it from dislodging during transport or high winds.
• Inspect the cover regularly for any signs of wear, tears, or damage, especially before trailering. A damaged cover may not provide adequate protection.
• Keep the cover away from sharp objects or abrasive surfaces that could cause punctures or tears.

3. Installation Instructions

Follow these steps to properly install the outboard motor storage cover:

1. Prepare the Motor: Ensure the outboard motor is clean and dry before applying the cover. Remove any debris or sharp objects that could snag the fabric.
2. Position the Cover: Carefully drape the cover over the top of the outboard motor. Identify the front of the cover, which typically features the reinforced patch for the tell-tale.
3. Align the Tell-Tale Opening: Guide the reinforced patch over the motor's tell-tale (water discharge indicator) to ensure a proper fit and prevent damage to the cover or obstruction of the tell-tale.
4. Stretch and Secure: Gently pull the cover down over the motor. The elastic midsection will help achieve a snug fit around the contours of the motor. Work your way around the motor, ensuring the cover is evenly distributed and fully covers the powerhead and midsection.
5. Fasten the Straps: Locate the buckle and elastic string with clasp at the bottom of the cover. Connect the buckle and tighten the elastic string to secure the cover firmly to the motor. Ensure it is taut but not overly stretched to avoid undue stress on the seams.
6. Final Check: Once installed, visually inspect the cover to confirm it is fully seated, all elastic sections are properly engaged, and the buckle is securely fastened. The BRP and Evinrude logos should be visible and correctly oriented.

Note: The cover is designed for a tight fit. Exercise caution during installation to avoid ripping or damaging the seams, especially when new.

4. Usage Guidelines

This storage cover is intended for protecting your outboard motor during periods of non-use, including:

• Storage: Protects the motor from dust, dirt, UV rays, and environmental elements when the boat is stored in a garage, boat lift, or outdoors.
• Trailering: Shields the motor from road debris, insects, and weather conditions encountered during transport. Ensure the cover is extremely secure before trailering at high speeds.

The tough synthetic fabric and padded sides offer protection against minor impacts and abrasions, preserving the aesthetic and functional integrity of your E-TEC outboard motor.

5. Maintenance and Care

Proper care will extend the life of your motor cover:

• Cleaning: Clean the cover periodically with mild soap and water. Rinse thoroughly and allow it to air dry completely before storing or reapplying. Do not use harsh chemicals or abrasive cleaners.
• Inspection: Regularly inspect the cover for signs of wear, especially along seams, elastic sections, and around the reinforced patch. Pay attention to any loose threads or fraying.
• Storage: When not in use, store the cover in a clean, dry place, away from direct sunlight and extreme temperatures.
• Repair: Small tears or loose stitching should be repaired promptly to prevent further damage and maintain the cover's protective qualities.

6. Troubleshooting

This section addresses common concerns and provides solutions for your motor cover.

Cover is difficult to install or seems too tight:

• Ensure the cover is correctly oriented (front to front).
• Apply the cover when the motor is cool.
• Gently stretch the elastic sections as you pull the cover down. A snug fit is intentional for optimal protection.

Seams are unraveling or tearing:

• This can occur from excessive force during installation or removal, or prolonged exposure to harsh conditions.
• Inspect the area for sharp edges on the motor that might be snagging the fabric.
• Consider reinforcing vulnerable areas with marine-grade fabric adhesive or stitching if minor damage occurs.

Cover does not stay secure during trailering:

• Ensure the buckle and elastic string are fully tightened.
• Verify that the cover is properly seated and all elastic edges are tucked under the motor's cowling.
• Check for any damage to the elastic or buckle mechanism that might compromise its hold.

7. Specifications

8. Warranty and Support

This product is a genuine Johnson Evinrude OMC factory original equipment accessory. For specific warranty information and support, please refer to the documentation provided with your purchase or contact Johnson Evinrude OMC directly through their official website or customer service channels. Keep your proof of purchase for any warranty claims.
