1. Safety Information
Please read all safety instructions carefully before operating the washing machine to prevent injury or damage. Keep this manual for future reference.
- Electrical Safety: Do not operate with wet hands. Ensure the power cord is not damaged and is properly grounded. Do not use extension cords.
- Water Safety: Ensure water hoses are securely connected to prevent leaks. Do not wash items that are waterproof or water-repellent, as this may cause abnormal vibration.
- Children and Pets: Keep children and pets away from the washing machine during operation. Do not allow children to play with the appliance.
- Flammable Materials: Do not wash items contaminated with flammable substances (e.g., gasoline, oil, alcohol).
- Installation: Install the machine on a firm, level surface. Ensure adequate ventilation around the appliance.
2. Setup and Installation
Proper installation is crucial for the safe and efficient operation of your washing machine.
2.1 Unpacking
Carefully remove all packaging materials. Check for any damage during transit. Ensure all accessories, including the water inlet and drain hoses, are present.
2.2 Location Requirements
- Place the machine on a solid, level floor to minimize vibration and noise.
- Ensure there is sufficient space around the machine for ventilation and maintenance.
- Avoid direct sunlight or locations with high humidity.
2.3 Connecting Water Hoses
Connect the water inlet hose to a cold water tap and the machine's inlet valve. Securely attach the drain hose to a suitable drain pipe or sink, ensuring it is not kinked or blocked.
Figure 2.3.1: Drain and inlet hoses. Ensure these are securely connected to prevent leaks.
2.4 Power Connection
Plug the power cord into a dedicated, grounded 100V outlet. Do not share the outlet with other appliances.
2.5 Leveling the Machine
Use a spirit level to check if the machine is perfectly level. Adjust the leveling feet at the bottom of the machine as needed to ensure stability.

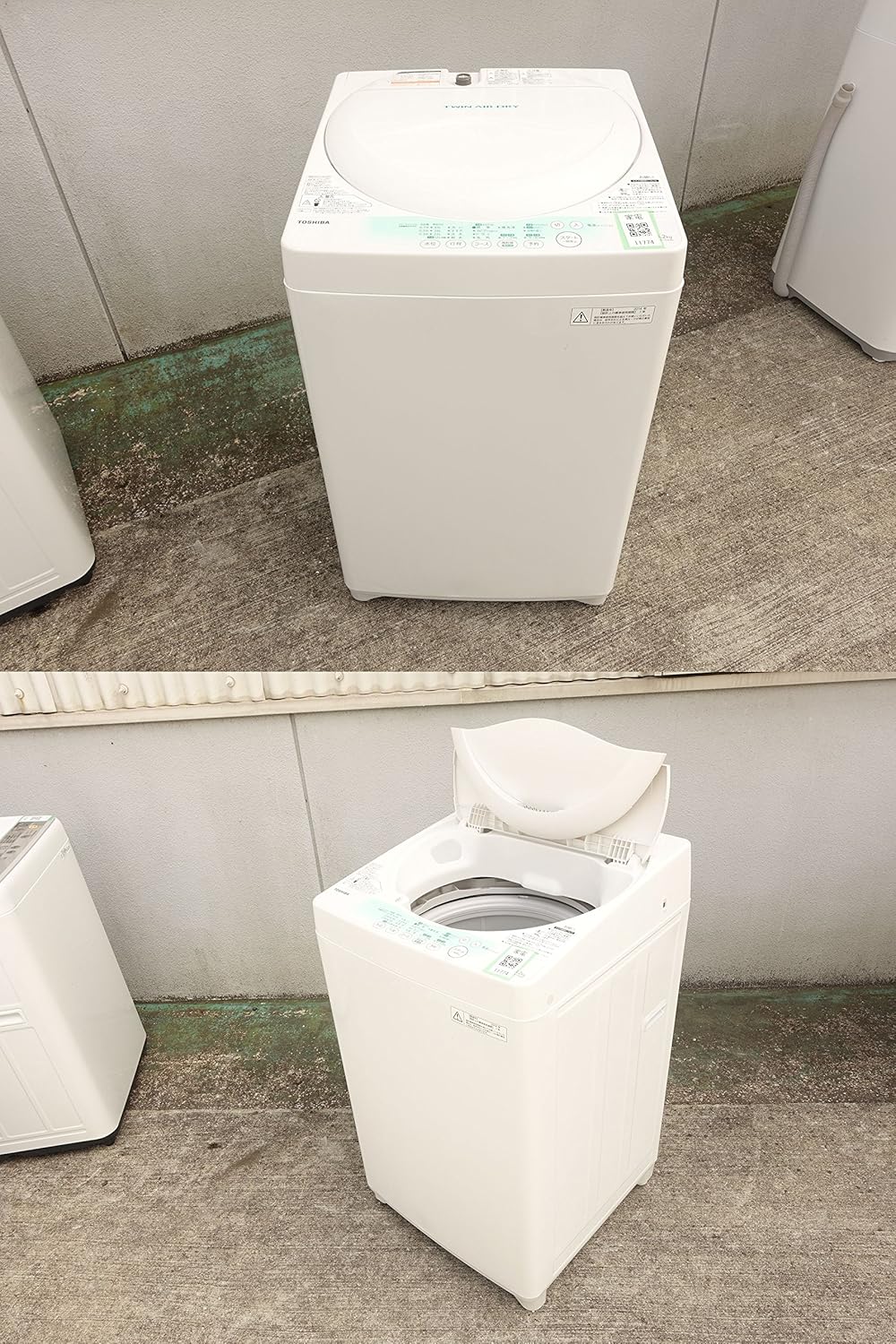

Figure 2.5.1: Front view of the Toshiba AW-704 washing machine after installation.
3. Operating Instructions
This section guides you through the daily operation of your washing machine.
3.1 Control Panel Overview
Familiarize yourself with the control panel buttons and indicators.
Figure 3.1.1: Control Panel. Features include Water Level, Course Selection, Delay Start, Start/Pause, and Power buttons. The identifier for this unit is 11774.
3.2 Loading Laundry
- Open the lid and place laundry loosely into the tub. Do not overload the machine.
- Distribute laundry evenly to prevent imbalance during the spin cycle.
3.3 Adding Detergent and Softener
Add the appropriate amount of detergent and fabric softener to their respective dispensers. Refer to the detergent packaging for recommended quantities based on load size and water hardness.
3.4 Selecting a Wash Course
Press the 'Course' button to cycle through available wash programs:
- Standard (標準): For everyday cottons and mixed fabrics.
- Speedy (スピーディ): For lightly soiled items or when you need a quick wash.
- Tub Clean (槽洗浄): For cleaning the washing machine tub (see Maintenance section).
- Dry (ドライ): For delicate items requiring gentle washing.
- Blanket (毛布): For washing blankets and large items.
3.5 Adjusting Water Level (水位)
Press the 'Water Level' button to select the desired water level based on your laundry load size. Options typically include 45L, 34L, and 22L, along with a Water Injection (注水) option.
3.6 Delay Start (予約)
Use the 'Reservation' button to set a delay for the wash cycle to start. Available options include 1 hour and 9 hours.
3.7 Starting and Pausing a Cycle
- After selecting your desired settings, press the 'Start/Pause (スタート一時停止)' button to begin the wash cycle.
- To pause an ongoing cycle, press the 'Start/Pause' button again. Press it once more to resume.
3.8 Child Lock (チャイルドロック)
To activate the Child Lock, press and hold the designated button (if available, often combined with another function) for a few seconds. This prevents accidental operation by children. Refer to the control panel for specific instructions on your model.
4. Maintenance
Regular maintenance ensures the longevity and optimal performance of your washing machine.
4.1 Cleaning the Tub
Use the 'Tub Clean (槽洗浄)' cycle regularly to prevent mold and detergent residue buildup. Follow these steps:
- Ensure the tub is empty.
- Add a washing machine cleaner (if recommended by the manufacturer) to the detergent dispenser.
- Select the 'Tub Clean' course and start the cycle.
Figure 4.1.1: Inside the washing machine tub. Regular cleaning helps maintain hygiene and performance.
4.2 Cleaning the Lint Filter
The lint filter collects lint and debris during washing. Clean it after every few washes to maintain drainage efficiency.
- Locate the lint filter (usually inside the tub or on the agitator).
- Remove the filter and clean out any accumulated lint under running water.
- Reinsert the filter securely.
4.3 Cleaning the Exterior
Wipe the exterior of the machine with a soft, damp cloth. Do not use abrasive cleaners or solvents.
5. Troubleshooting
Before calling for service, please check the following common issues and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | Power cord unplugged, lid not closed, power outage. | Check power connection, ensure lid is fully closed, check household circuit breaker. |
| Water does not fill | Water tap closed, inlet hose kinked, water supply cut off. | Open water tap, straighten hose, check water supply. |
| Water does not drain | Drain hose kinked or blocked, lint filter clogged. | Straighten/clear drain hose, clean lint filter. |
| Excessive vibration/noise | Machine not level, laundry unevenly distributed, transport bolts not removed. | Adjust leveling feet, redistribute laundry, ensure transport bolts are removed (if applicable). |
| Lid does not close properly | Obstruction, sensor issue. | Remove any obstructions. If the buzzer beeps, try turning the power on, then repeatedly opening and closing the lid. If the issue persists, contact service. |
6. Specifications
Detailed technical specifications for the TOSHIBA AW-704 washing machine.
| Feature | Specification |
|---|---|
| Model Number | AW-704 |
| Type | Fully Automatic Electric Washing Machine |
| Standard Spin Capacity | 4.2 kg |
| Dimensions (W x D x H) | 56.3 cm x 58 cm x 95.7 cm |
| Product Weight | 26 kg |
| Rated Voltage | 100V |
| Rated Frequency | 50/60Hz (Shared) |
| Motor Rated Power Consumption | 295W / 340W (Wash only 11 min) |
| Standard Water Usage | 98 L |
| Access Location | Top |
| Human Interface Input | Button |
| Manufacturing Year | 2014 |
| Country of Manufacture | Thailand (for domestic use in Japan) |
Figure 6.1.1: Rear label displaying detailed product specifications and a wiring diagram.
7. Warranty and Support
For warranty information, please refer to the warranty card included with your purchase. The warranty typically covers manufacturing defects for a specified period from the date of purchase.
For technical support, service requests, or to inquire about replacement parts, please contact TOSHIBA customer service. Contact details can usually be found on the manufacturer's official website or in your warranty documentation.
When contacting support, please have your model number (AW-704) and serial number (found on the rear label) ready.
