TRESKO Bar Stools BH-009 Instruction Manual

1. Introduction

Thank you for purchasing the TRESKO Bar Stools BH-009. This manual provides essential information for the safe assembly, operation, and maintenance of your new bar stools. Please read these instructions carefully before use and retain them for future reference.

Two TRESKO bar stools in a modern kitchen setting

Image 1.1: TRESKO Bar Stools BH-009 in a kitchen environment.

2. Safety Information

WARNING: To ensure safe operation and prevent injury or damage, please adhere to the following safety guidelines:

Do not exceed the maximum weight limit of 300 lbs (136 kg). Exceeding this limit may cause the stool to tip or components to fail.
Keep the bar stools away from direct heat sources, open flames, and excessive moisture to prevent material degradation and potential slipping hazards.
Always ensure the stool is placed on a stable, level surface before use.
Avoid standing on the stool or using it as a ladder.
Regularly check all screws and connections to ensure they are tight. Retighten as necessary.
Do not allow children to play with the gas lift mechanism.
Use a dry cloth for cleaning to avoid damaging the faux leather or chrome finish.

3. Package Contents

Before beginning assembly, please verify that all components are present and undamaged. If any parts are missing or damaged, do not proceed with assembly and contact customer support.

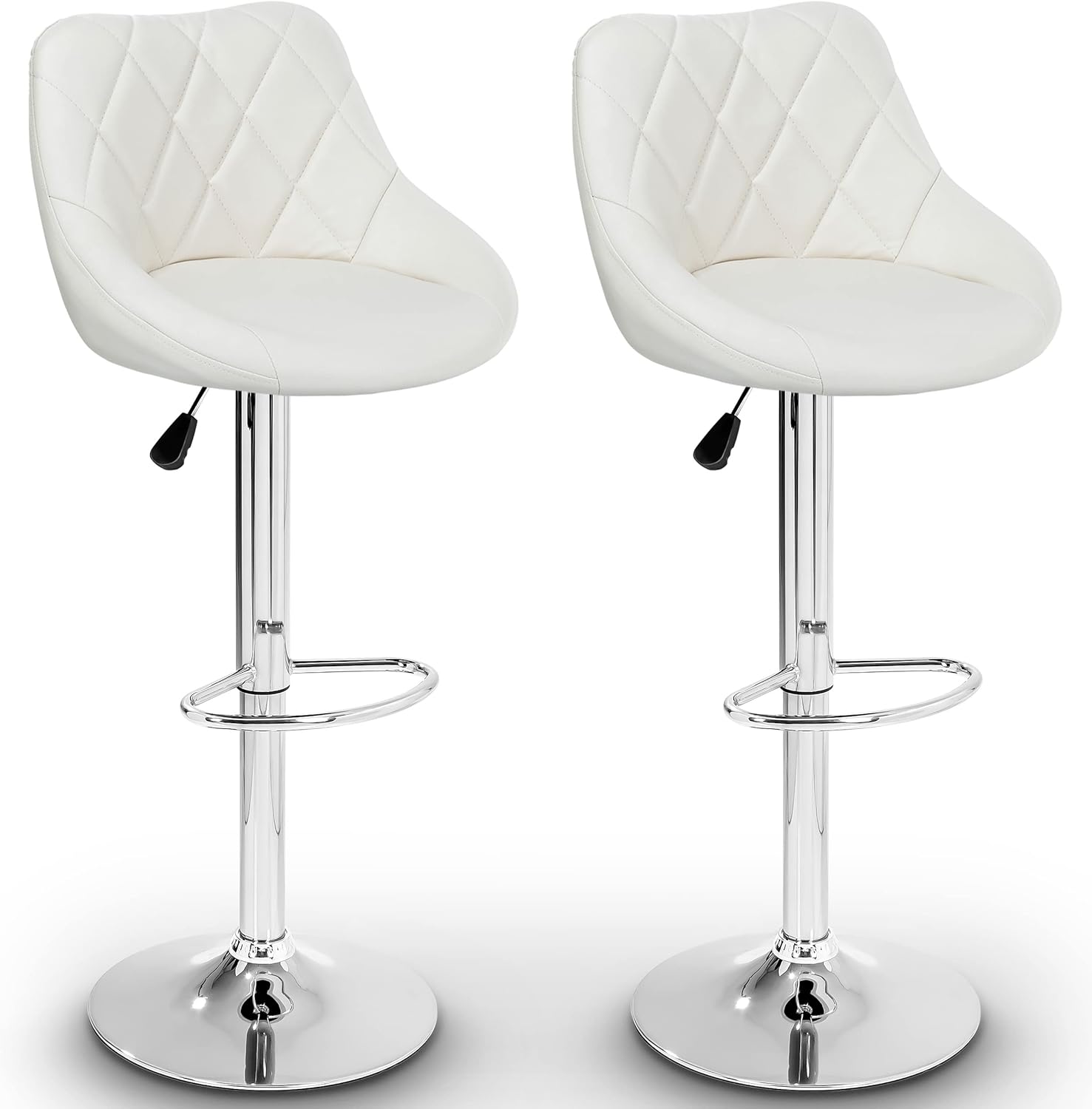

Two TRESKO bar stools showing full view of assembled product

Image 3.1: Fully assembled TRESKO Bar Stools BH-009. Each stool package typically includes:

Seat with backrest (1x per stool)
Gas lift cylinder (1x per stool)
Footrest ring (1x per stool)
Base plate (1x per stool)
Mounting hardware (screws, washers, Allen key)
Instruction manual (this document)

4. Setup and Assembly Instructions

Assembly is straightforward and typically requires one person. Please follow these steps carefully:

Step 1: Prepare the Base

Unpack all components and lay them out on a clean, soft surface to prevent scratches.
Place the chrome base plate (round bottom) on the floor. Ensure the rubberized ring on the bottom is correctly seated to protect your floors.

Close-up of the chrome base plate with rubber ring

Image 4.1: Detail of the base plate, showing the protective rubber ring.

Step 2: Install the Gas Lift and Footrest

Insert the gas lift cylinder into the central hole of the base plate. The wider end of the gas lift should be at the bottom, resting in the base.
Slide the chrome footrest ring over the top of the gas lift cylinder. Ensure it is oriented correctly, with the wider opening facing down to rest on the gas lift's lower section.

Diagram showing assembly steps for gas lift and footrest onto the base

Image 4.2: Illustration of gas lift and footrest assembly onto the base.

Step 3: Attach the Seat

Locate the mounting plate on the underside of the seat.
Carefully align the top of the gas lift cylinder with the central opening on the seat's mounting plate.
Press the seat firmly onto the gas lift cylinder until it is securely seated. You may need to apply some weight to ensure a snug fit.
Ensure the height adjustment lever on the seat is accessible and facing the desired direction.

Side view of an assembled bar stool, showing the seat and gas lift mechanism

Image 4.3: Assembled stool, illustrating the connection between seat and gas lift.

Your TRESKO Bar Stool is now assembled. Repeat these steps for the second stool if you purchased a set.

5. Operating Instructions

The TRESKO Bar Stools feature a gas lift mechanism for height adjustment and a 360-degree swivel function.

Height Adjustment

To raise the seat: Stand up from the stool and pull the height adjustment lever upwards. The seat will automatically rise. Release the lever at the desired height.
To lower the seat: Sit on the stool and pull the height adjustment lever upwards. The seat will lower under your weight. Release the lever at the desired height.

Image 5.1: The height adjustment lever and 360-degree swivel function are integral to the gas lift mechanism.

Swivel Function

The seat is designed to swivel 360 degrees freely. Simply rotate the seat in any direction while seated or standing.

6. Maintenance

Proper care and maintenance will extend the life and appearance of your TRESKO Bar Stools.

Cleaning the Faux Leather Seat: Wipe the seat regularly with a soft, dry cloth. For spills or stains, use a damp cloth with mild soap and water, then immediately wipe dry. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the faux leather.
Cleaning the Chrome Parts: Clean the chrome base, footrest, and gas lift with a soft, dry cloth. For stubborn marks, a slightly damp cloth can be used, followed by immediate drying to prevent water spots or corrosion. Do not use abrasive cleaners.
Hardware Check: Periodically check all screws and connections to ensure they remain tight. Retighten any loose hardware to maintain stability and safety.
Floor Protection: Ensure the rubberized ring on the base plate is intact and clean to protect your floors from scratches.

Close-up of the quilted faux leather upholstery on the bar stool seat

Image 6.1: Detail of the faux leather seat, highlighting the quilted pattern.

7. Troubleshooting

If you encounter any issues with your TRESKO Bar Stools, refer to the following common problems and solutions:

Problem	Possible Cause	Solution
Stool wobbles or is unstable.	Loose assembly screws or uneven floor.	Check and tighten all assembly screws. Ensure the stool is on a flat, level surface.
Gas lift does not adjust height.	Gas lift mechanism stuck or damaged.	Ensure the lever is fully engaged. If the issue persists, the gas lift may be faulty and require replacement. Contact support.
Stool makes squeaking noises.	Loose connections or friction between parts.	Tighten all screws. Apply a small amount of silicone spray to moving parts (e.g., where the gas lift meets the base or seat mechanism), avoiding contact with faux leather.
Seat slowly sinks after adjustment.	Gas lift cylinder losing pressure.	This indicates wear on the gas lift. While minor sinking might occur over time with heavy use, significant sinking suggests the gas lift needs replacement. Contact support.

8. Specifications

Detailed specifications for the TRESKO Bar Stools BH-009:

Model: BH-009
Brand: TRESKO
Material: Faux Leather (seat), Chromed Steel (foot and frame)
Overall Height: 87-107 cm (34.3-42.1 inches)
Seat Height Adjustment: 60-80 cm (23.6-31.5 inches)
Seat Width: 48 cm (18.9 inches)
Seat Depth: 36 cm (14.2 inches)
Backrest Width: 40 cm (15.7 inches)
Backrest Height: 26 cm (10.2 inches)
Base Plate Diameter: 38.5 cm (15.2 inches)
Weight Capacity: 300 lbs (136 kg)
Special Features: 360° Swivel, Height Adjustable Gas Lift, Chrome Footrest
Item Weight: Approximately 7 kg (15.4 lbs) per stool

Detailed diagram of bar stool dimensions including seat height, width, depth, and base diameter

Image 8.1: Dimensional diagram of the TRESKO Bar Stool BH-009.

9. Warranty Information

TRESKO products are manufactured to high-quality standards. Specific warranty terms and conditions may vary by region and retailer. Please refer to the warranty card included with your purchase or visit the official TRESKO website for detailed warranty information.

Keep your proof of purchase (receipt or invoice) as it will be required for any warranty claims.

10. Customer Support

If you have any questions, require assistance with assembly, or need to report a missing/damaged part, please contact your retailer or the TRESKO customer service department. Have your model number (BH-009) and purchase details ready when contacting support.

For the most up-to-date contact information, please visit the official TRESKO website.
