1. Product Overview
This manual provides instructions for the Ariens 07200023 V-Belt, a genuine Original Equipment Manufacturer (OEM) replacement part. This V-belt is designed for specific Ariens and Gravely lawn and garden equipment, ensuring proper fit and performance for your machinery's drive system.

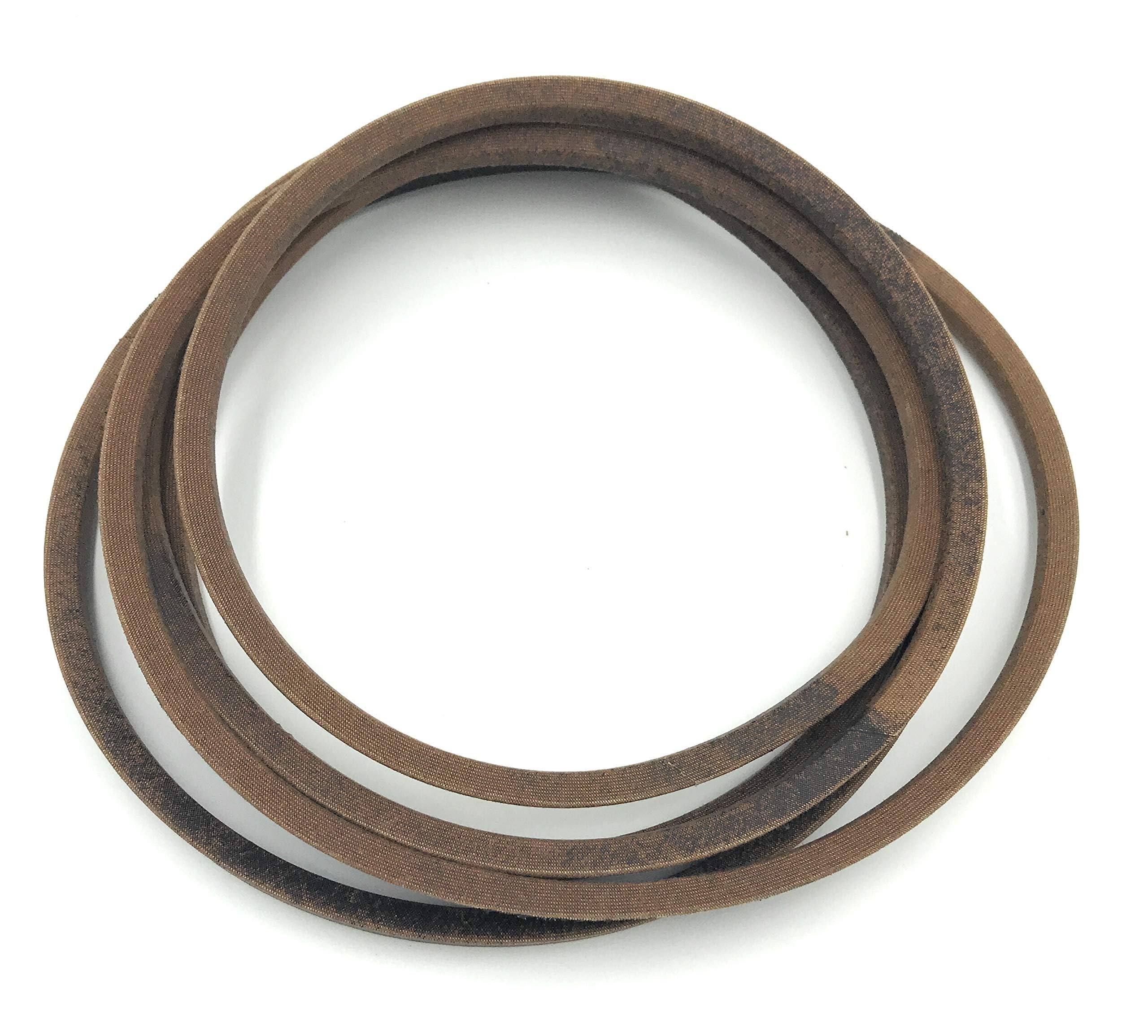

Image: The Ariens 07200023 V-Belt, shown coiled on a white background, highlighting its brown material and part number markings.
2. Safety Information
Always prioritize safety when working with power equipment. Failure to follow safety precautions can result in serious injury.
- Disconnect Power: Before performing any maintenance or installation, ensure the equipment's engine is off and the spark plug wire is disconnected to prevent accidental starting.
- Wear Protective Gear: Always wear appropriate personal protective equipment (PPE), including safety glasses and heavy-duty gloves, to protect against sharp edges and moving parts.
- Allow Cooling: Allow the engine and all components to cool down before handling to avoid burns.
- Secure Equipment: Ensure the equipment is on a stable, level surface and cannot roll or tip during service.
- Read Equipment Manual: Refer to your specific equipment's owner's manual for detailed safety instructions and belt replacement procedures.
3. Installation Instructions
This section provides general guidance for replacing a V-belt. Specific steps may vary depending on your equipment model. Always consult your equipment's service manual for precise instructions.
3.1. Preparation
- Park the equipment on a flat, stable surface.
- Turn off the engine and remove the ignition key.
- Disconnect the spark plug wire to prevent accidental starting.
- Allow all hot components to cool down.
- Gather necessary tools, which may include wrenches, sockets, and a pry bar.
3.2. Removing the Old Belt
- Locate the belt and identify any guards or covers that need to be removed to access it. Remove these components carefully.
- Identify the belt tensioning mechanism. This often involves an idler pulley or spring-loaded arm.
- Release the tension on the old belt. This may require loosening bolts or compressing a spring.
- Carefully remove the old belt from all pulleys. Note its routing path for correct installation of the new belt.
3.3. Installing the New Belt
- Route the new Ariens 07200023 V-Belt around the pulleys, following the exact path of the old belt. Ensure it is seated correctly in all pulley grooves.
- Apply tension to the new belt using the tensioning mechanism. Ensure the belt is taut but not overly tight. Refer to your equipment manual for recommended tension specifications.
- Check the belt's alignment on all pulleys. It should run straight and not rub against any components.
- Reinstall any guards or covers that were removed.
- Reconnect the spark plug wire.
3.4. Post-Installation Check
After installation, perform a brief test run in a safe, open area to ensure the belt operates smoothly and quietly. Listen for any unusual noises or signs of slippage.
4. Maintenance
Regular inspection and maintenance of your V-belt will extend its lifespan and ensure optimal equipment performance.
- Visual Inspection: Periodically inspect the belt for signs of wear, such as cracks, fraying, glazing, or missing chunks. Replace the belt if any significant damage is observed.
- Tension Check: Ensure the belt maintains proper tension. A loose belt can slip, causing power loss, while an overly tight belt can put excessive strain on bearings and reduce belt life.
- Cleanliness: Keep the belt and pulleys free from dirt, debris, oil, and grease. Contaminants can cause slippage and premature wear.
- Storage: If storing the equipment for an extended period, consider releasing belt tension to prevent stretching or deformation.
5. Troubleshooting Common Issues
| Symptom | Possible Cause | Solution |
|---|---|---|
| Belt Slipping | Incorrect tension (too loose), worn belt, glazed pulleys, oil/grease on belt. | Adjust tension, replace worn belt, clean pulleys and belt. |
| Excessive Noise (Squealing/Chirping) | Incorrect tension, misalignment, worn belt, foreign object. | Adjust tension, check pulley alignment, replace worn belt, remove debris. |
| Premature Belt Wear/Breakage | Incorrect tension (too tight or too loose), misalignment, worn pulleys, foreign object, incorrect belt type. | Verify tension, check alignment, inspect pulleys for wear, ensure correct OEM belt is used. |
6. Product Specifications
- Part Number: 07200023
- Brand: Ariens
- Belt Style: V-Belt
- Material: Plastic (typical for V-belt construction, often reinforced)
- Item Weight: Approximately 13.6 ounces
- Product Dimensions (Packaging): Approximately 16 x 10 x 1 inches
- Manufacturer: Ariens
7. Compatible Models
The Ariens 07200023 V-Belt is compatible with a range of Ariens and Gravely lawn and garden equipment. Always verify your specific model number against this list or your equipment's manual to ensure proper fit.
7.1. Ariens Models
- Ikon-X 52
- Ikon-XD 52
- Ikon-XD 52 CE
- Ikon-XD 52 Limited Edition
- Ikon-XL 52
- Zoom 1540
- Zoom 1640
- Zoom 1744
- Zoom 1840
- Zoom 2044
- Zoom 2252
- Zoom 2348
- Zoom 2352
- Zoom 2552
- Zoom XL 42
- Zoom XL 48
- Zoom XL 54
7.2. Gravely Models
- ZT 1640
- ZT 1840
- ZT 2044
- ZT 2252
- ZT 2348
- ZT 2352
- ZT 2552
- ZT XL 1842
- ZT XL 2042
- ZT XL 2448
- ZT XL 2548
- ZT XL 2554
- ZT XL 42
- ZT XL 48
- ZT XL 52
- ZT XL 54
- ZTX 52
- ZTX 52 Stealth
8. Warranty and Support
As an Original Equipment Manufacturer (OEM) part, the Ariens 07200023 V-Belt is designed to meet the highest quality standards. For specific warranty information or technical support, please refer to the documentation provided with your Ariens or Gravely equipment, or contact Ariens customer service directly through their official website.
