Gravely High Lift Lawn Mower Blade 00450200 Instruction Manual

1. Product Overview

This manual provides essential information for the safe and effective use of your Gravely High Lift Lawn Mower Blade, model 00450200. This genuine OEM Gravely part is designed for specific Gravely and Ariens lawn mower models, including ZT HD, Pro-Turn Z, ZX, APEX 48, and Pro-Walk series, featuring a 16.19-inch length.

The high-lift design is engineered to create a strong vacuum under the mower deck, lifting grass blades for a clean, even cut, and efficient discharge of clippings.

2. Safety Information

Always prioritize safety when handling and installing lawn mower blades. Failure to follow these instructions can result in serious injury.

• Disconnect Spark Plug: Before performing any maintenance or installation, always disconnect the spark plug wire(s) to prevent accidental engine starting.
• Wear Protective Gear: Wear heavy-duty gloves and eye protection when handling blades. Blades are sharp and can cause severe cuts.
• Secure the Mower: Ensure the mower is on a flat, stable surface and properly supported to prevent it from tipping.
• Inspect Components: Before installation, inspect the blade, blade adapter, and mounting hardware for damage or wear. Replace any damaged parts.
• Correct Orientation: Install the blade with the cutting edge facing the correct direction as indicated by the manufacturer. Incorrect installation can lead to poor cutting performance and potential hazards.
• Torque Specifications: Tighten blade bolts to the manufacturer's specified torque. Refer to your mower's owner's manual for exact torque values.

3. Setup and Installation

Follow these steps to safely replace your lawn mower blade:

1. Prepare the Mower: Disconnect the spark plug wire(s). If the mower uses gasoline, ensure the fuel tank is less than half full to prevent spills when tilting.
2. Tilt the Mower: Carefully tilt the mower onto its side, ensuring the carburetor and air filter are facing upwards to prevent oil or fuel from leaking.
3. Remove Old Blade: Use a block of wood to brace the old blade against the mower deck to prevent it from turning. Using a wrench, loosen and remove the blade bolt(s) and the old blade. Note the orientation of the old blade for correct installation of the new one.
4. Clean Deck and Spindle: Clean any grass clippings or debris from the underside of the mower deck and around the blade spindle.
5. Install New Blade: Position the new Gravely High Lift Blade (00450200) onto the spindle, ensuring the cutting edges are facing the correct direction (typically upwards towards the deck). The blade should sit flush against the blade adapter.
6. Secure Blade: Reinstall the blade bolt(s) and washer(s). Hand-tighten first, then use a torque wrench to tighten the bolt(s) to the manufacturer's specified torque. Refer to your mower's owner's manual for the correct torque setting.
7. Final Check: Ensure the blade is securely fastened and spins freely without obstruction. Return the mower to its operating position and reconnect the spark plug wire(s).

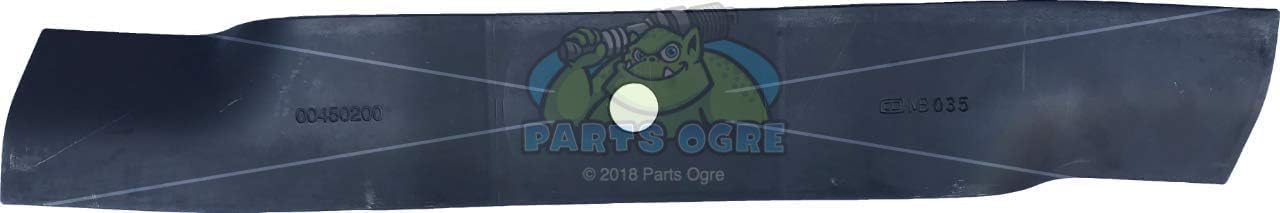

Figure 1: Full view of the Gravely High Lift Lawn Mower Blade 00450200. This image shows the overall shape and design of the blade, including the central mounting hole.

4. Operating Considerations

Once the blade is correctly installed, operate your lawn mower according to its owner's manual. The high-lift design of this blade is optimized for efficient grass cutting and discharge, particularly in conditions where a strong vacuum is beneficial for lifting grass before cutting.

Figure 2: Close-up view of the cutting edge of the Gravely High Lift Blade. This image highlights the sharpened edge responsible for cutting grass.

5. Maintenance

Regular maintenance of your lawn mower blade ensures optimal cutting performance and extends its lifespan.

• Inspection: Before each use, inspect the blade for excessive wear, bends, cracks, or nicks. A damaged blade can cause vibrations, poor cut quality, and be dangerous.
• Cleaning: After each use, clean grass clippings and debris from the blade and the underside of the mower deck. This prevents buildup that can affect cutting performance and balance.
• Sharpening: Sharpen the blade regularly to maintain a keen cutting edge. Use a blade sharpener or file, maintaining the original cutting angle. Ensure the blade remains balanced after sharpening to prevent excessive vibration.
• Balancing: An unbalanced blade can cause severe vibration, damage to the mower, and an uneven cut. After sharpening or if vibration occurs, check the blade's balance using a blade balancer.
• Replacement: Replace the blade if it is severely bent, cracked, or worn beyond safe limits. Refer to your mower's manual for recommended replacement intervals.

Figure 3: Close-up view of the tip of the Gravely High Lift Blade. This shows the upward curve that creates the high-lift action for improved grass vacuum.

6. Troubleshooting

If you experience issues after installing or using your blade, consider the following:

• Poor Cut Quality / Uneven Cut:
  • Blade is dull: Sharpen or replace the blade.
  • Blade is bent or damaged: Replace the blade.
  • Blade installed upside down: Reinstall the blade with the cutting edge facing up.
  • Mower deck is not level: Adjust mower deck height.
• Excessive Vibration:
  • Blade is unbalanced: Balance the blade after sharpening.
  • Blade is bent or damaged: Replace the blade.
  • Blade bolt is loose: Tighten the blade bolt to specifications.
• Inefficient Grass Discharge:
  • Mower deck is clogged with grass: Clean the underside of the deck.
  • Blade is dull or worn: Sharpen or replace the blade.
  • Grass is too wet or too tall: Mow when grass is dry and cut less height at a time.

7. Specifications

8. Warranty Information

This Gravely High Lift Lawn Mower Blade (00450200) comes with a 1-year warranty. This warranty covers defects in materials and workmanship under normal use. It does not cover wear and tear from normal operation, damage due to improper installation, misuse, neglect, or unauthorized modifications. For specific warranty claims or details, please refer to the official Gravely or Ariens warranty policy provided with your original equipment or contact their customer support.

9. Support and Contact

For further assistance, technical support, or to inquire about replacement parts, please contact Gravely or Ariens customer service. Always have your mower's model and serial number, along with the blade's part number (00450200), ready when contacting support.

You can typically find contact information on the official Gravely or Ariens websites, or in your mower's owner's manual.
