1. Introduction
This multi-scissor head is designed specifically for the BLACK+DECKER Multievo EVO183 multi-tool system. It allows for easy control of cutting speed with a stepless variable speed switch. This versatile attachment can cut a wide range of materials such as carpets, vinyl, thin steel plates, and wire mesh, making it highly useful for various DIY projects and hobbies.
2. Safety Information
Always read and understand all safety warnings and instructions provided with your BLACK+DECKER Multievo main unit before using this attachment. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.
- Wear appropriate personal protective equipment: Always wear safety glasses, gloves, and hearing protection when operating power tools.
- Secure your workpiece: Ensure the material you are cutting is stable and securely held to prevent movement during operation.
- Keep hands clear: Never place your hands near the cutting blades while the tool is operating or connected to power.
- Inspect blades: Before each use, check the blades for damage or dullness. Replace worn or damaged blades immediately.
- Disconnect power: Always disconnect the battery pack from the main unit before making any adjustments, changing accessories, or performing maintenance.
- Use in well-ventilated areas: Cutting certain materials can produce dust or fumes. Ensure adequate ventilation.
3. Product Overview
The EMS183 Multi-Scissor Head is an interchangeable attachment for the BLACK+DECKER Multievo 18V multi-tool system. It provides precise cutting capabilities for various flexible and thin materials.

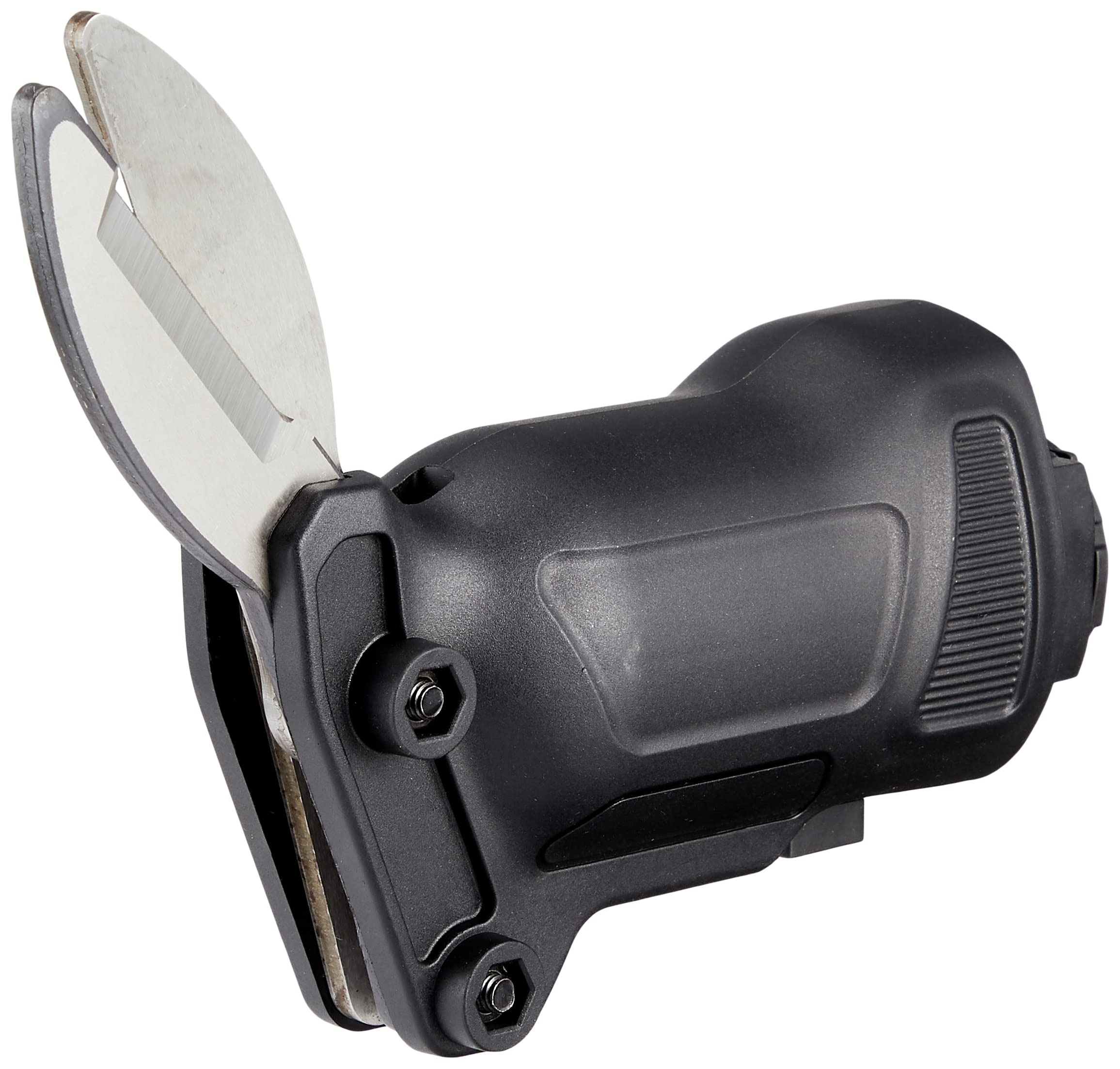

Figure 1: The BLACK+DECKER Multievo Multi-Scissor Head EMS183.
Figure 2: Packaging of the EMS183 Multi-Scissor Head, highlighting its compatibility with the Multievo system.
4. Package Contents
The EMS183 Multi-Scissor Head package typically includes:
- 1 x BLACK+DECKER Multievo Multi-Scissor Head (EMS183)
Note: The Multievo main unit, battery, and charger are sold separately.
5. Setup
To attach the Multi-Scissor Head to your BLACK+DECKER Multievo main unit:
- Ensure the Multievo main unit is switched off and the battery pack is removed.
- Align the Multi-Scissor Head with the main unit's attachment port.
- Push the head firmly onto the main unit until it clicks securely into place.
- To remove, press the release button on the main unit and pull the attachment head off.
Video 1: Demonstration of attaching various heads to the BLACK+DECKER Multievo main unit (EVO185E1 system). This video illustrates the general attachment process applicable to the EMS183 head.
Figure 3: The Multievo system showing the main unit and various interchangeable head attachments, including a multi-saw, jigsaw, circular saw, impact driver, and drill driver.
6. Operating Instructions
Once the Multi-Scissor Head is securely attached and the battery is inserted into the main unit:
- Power On: Press the trigger switch on the main unit to start the cutting action. The tool features a stepless variable speed switch, allowing you to control the cutting speed by varying the pressure on the trigger.
- Positioning: Place the material to be cut between the blades. Ensure the blades are fully open before starting the cut.
- Cutting: Apply gentle, steady pressure to guide the tool through the material. Avoid forcing the tool, as this can damage the blades or the material.
- Material Compatibility: This multi-scissor head is designed for cutting thin and flexible materials. Refer to the specifications for maximum cutting capacities for different materials.
Figure 4: The Multi-Scissor Head in use, demonstrating its ability to cut materials like leather.
7. Maintenance
Regular maintenance ensures optimal performance and extends the life of your Multi-Scissor Head.
- Cleaning: After each use, disconnect the head from the main unit and clean the blades and housing with a dry cloth. Remove any debris or material residue.
- Blade Inspection: Periodically inspect the blades for sharpness and damage. Dull or damaged blades can reduce cutting efficiency and increase strain on the tool.
- Storage: Store the Multi-Scissor Head in a dry, clean place, away from direct sunlight and extreme temperatures.
8. Troubleshooting
If you encounter issues with your Multi-Scissor Head, try the following:
- Tool not operating: Ensure the battery pack is fully charged and properly inserted into the main unit. Check that the Multi-Scissor Head is securely attached.
- Poor cutting performance: Inspect the blades for dullness or damage. Replace if necessary. Ensure you are not attempting to cut materials beyond the tool's specified capacity.
- Excessive vibration or noise: Disconnect power and check for any loose parts or obstructions around the blades. If the issue persists, discontinue use and contact customer support.
9. Specifications
Figure 5: Approximate dimensions of the Multi-Scissor Head.
| Feature | Specification |
|---|---|
| Brand | BLACK+DECKER |
| Model Number | EMS183 |
| Product Type | Power Tool Attachment (Multi-Scissor Head) |
| Color | Black |
| Weight (Head Unit Only) | 0.64 kg |
| Switch Type | Stepless Variable Speed |
| Maximum Cutting Width | 6.35 mm |
| Maximum Capacity (Carpet) | 6 mm |
| Maximum Capacity (Vinyl) | 3 mm |
| Maximum Capacity (Thin Steel Plate) | 0.5 mm |
| Maximum Capacity (Wire Mesh) | 0.5 mm |
| Blade Material | Metal |
| Blade Tip | Straight |
| Finish Type | Powder Coating |
| Included Components | None (Head Unit Only) |
10. Warranty and Support
This BLACK+DECKER product is covered by a manufacturer's warranty. Please refer to the warranty card included with your original Multievo main unit or visit the official BLACK+DECKER website for detailed warranty terms and conditions.
For technical support, spare parts, or service inquiries, please contact BLACK+DECKER customer service through their official website or the contact information provided in your product documentation.
Official Website: www.blackanddecker.com
