1. Safety Information
WARNING: Risk of electric shock. Disconnect power at the fuse box or circuit breaker before installation or servicing. Consult a qualified electrician if you are unsure about the installation process.
CAUTION: This fixture is designed for indoor use only. Do not exceed the maximum wattage specified for the bulbs. Ensure all connections are secure and properly insulated.
Proposition 65 Warning: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Please check your local laws before purchasing this product.
2. Product Overview
The Progress Lighting Replay Collection Three-Light Inverted Pendant Light (Model P3450-31) features a sleek, linear form with a textured black finish and crisp etched white glass shades. This fixture is designed to provide soft, even illumination, making it suitable for dining rooms, kitchens, or entryways.
Key Features:
- Elegant linear design with a sophisticated textured black finish.
- Etched white glass shades diffuse light evenly for a warm glow.
- Designed for easy installation with included mounting hardware.
- Includes 72 inches of chain for adaptable ceiling heights.
- Uses three 100-watt medium base bulbs or LED equivalents (sold separately).

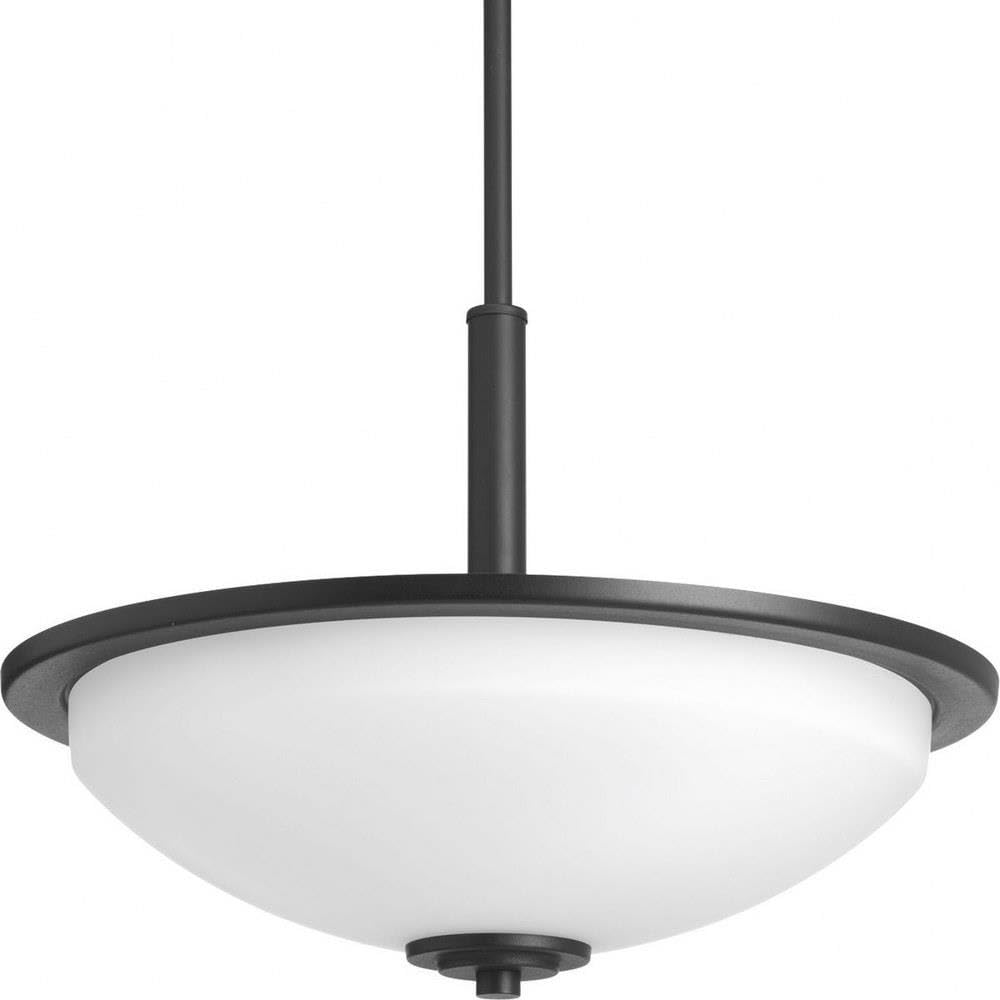

Figure 2.1: Front view of the Progress Lighting Replay Collection Three-Light Inverted Pendant Light in Textured Black.
Dimensions:
Figure 2.2: Dimensional drawing showing the pendant light's height of 18-7/8 inches and width of 16-5/8 inches.
3. Components List
Verify that all components are present before beginning installation. If any parts are missing or damaged, do not attempt to assemble or install the fixture. Contact customer support for assistance.
- Pendant Light Fixture Assembly
- Mounting Hardware Kit
- 72-inch Chain
- Installation Sheet
4. Setup & Installation
This fixture is designed for easy installation. Refer to the included Installation Sheet for detailed, step-by-step instructions specific to your product. Always ensure the power is turned off at the circuit breaker before starting any electrical work.
General Installation Steps:
- Turn off power at the main circuit breaker.
- Attach the mounting bracket to the junction box.
- Adjust the chain length to achieve the desired hanging height. The fixture includes 72 inches of chain for various ceiling heights.
- Connect the electrical wires according to local electrical codes (typically black to black, white to white, and ground to ground).
- Secure the fixture canopy to the mounting bracket.
- Install the glass shades and bulbs.
- Restore power and test the fixture.
Pendant Spacing and Hanging Tips:
For optimal aesthetic and functional lighting, consider the following guidelines when installing multiple pendants over a dining table or kitchen island:
- Start the row of pendants 12-15 inches in from either end of the surface.
- Space the remaining pendants evenly within the span.
- Pendants should be at least 10 inches smaller in diameter than the width of the countertop or table.
- The bottom of the pendant light should hang 30-36 inches above the countertop, dining table, or nightstand.
Video 4.1: This video provides general tips on modern pendant light trends, including spacing and hanging recommendations for various room settings like kitchens and dining areas.
5. Operating Instructions
Once installed, operate the pendant light using a standard wall switch. This fixture is compatible with dimmer switches, allowing you to adjust the light intensity to your preference.
Bulb Requirements:
- Quantity: 3 bulbs
- Type: Medium base (E26)
- Maximum Wattage: 100 watts per bulb
- Recommended: Incandescent or LED equivalent bulbs
Bulbs are sold separately.
6. Maintenance
To maintain the appearance and performance of your pendant light, follow these simple maintenance guidelines:
- Cleaning: Always turn off the power before cleaning. Use a soft, dry cloth to wipe down the metal finish. For the glass shades, use a mild glass cleaner applied to a cloth, then wipe the glass. Avoid abrasive cleaners or solvents that may damage the finish.
- Bulb Replacement: Ensure the fixture is cool before attempting to replace bulbs. Use only bulbs that meet the specified type and wattage requirements.
- Inspection: Periodically check all connections and mounting hardware to ensure they remain secure.
7. Troubleshooting
If your pendant light is not functioning correctly, refer to the following common issues and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on | No power to the fixture Loose wire connections Faulty bulb | Check circuit breaker and wall switch Verify all wire connections are secure (power off first) Replace bulb with a new one |
| Light flickers | Loose bulb Incompatible dimmer switch Loose wire connections | Tighten bulb Ensure dimmer switch is compatible with your bulbs Check wire connections (power off first) |
| Humming noise | Incompatible dimmer switch Loose components | Replace dimmer with a compatible one Check for any loose parts within the fixture |
If the problem persists after trying these solutions, please contact customer support.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | Progress Lighting |
| Model Number | P3450-31 |
| Product Dimensions (L x W x H) | 18.63" x 16.63" x 18.88" |
| Material | Alloy Steel, Glass |
| Color | Textured Black |
| Style | 3-Light |
| Light Fixture Form | Pendant |
| Room Type | Bedroom, Kitchen, Living Room |
| Installation Type | Semi Flush Mount |
| Special Feature | Etched White Glass, Simplified Modern Look |
| Light Source Type | Incandescent, Compact Fluorescent (compatible with LED equivalents) |
| Number of Light Sources | 3 |
| Wattage | 100 watts (per bulb) |
| Voltage | 120 Volts |
| Brightness | 1500 Lumens (total, with 3x 100W bulbs) |
| Switch Type | Dimmer compatible |
| Item Weight | 2.9 pounds |
| UPC | 785247185917 |
9. Warranty
This Progress Lighting fixture is backed by a 1-Year Limited Manufacturer's Warranty. This warranty covers defects in materials and workmanship under normal use and service. Please retain your proof of purchase for warranty claims. For full warranty details, refer to the official Progress Lighting website or contact customer support.
10. Support
For technical assistance, replacement parts, or warranty inquiries, please contact Progress Lighting customer support:
- Website: Visit the official Progress Lighting website for FAQs and support resources.
- Contact Information: Refer to the contact section on the Progress Lighting website for phone numbers or email support.
