1. Introduction
Welcome to the user manual for the Pronomic PT-6 MKII Projector and Beamer Cart. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new cart. Please read this manual thoroughly before use and retain it for future reference.
2. Safety Instructions
- Ensure all components are securely fastened before use.
- Do not exceed the maximum load capacity of 10 kg (22 lbs) per shelf.
- Use caution when adjusting height and tilt to prevent pinching.
- Engage wheel brakes when the cart needs to remain stationary.
- Keep away from children and pets during assembly and operation.
- Do not use the cart on uneven or unstable surfaces.
3. Package Contents
Verify that all parts are present before beginning assembly.
- Main vertical pole
- Base with 4 casters (2 with brakes)
- Upper shelf (approx. 30 x 35 cm)
- Lower shelf (approx. 35 x 40 cm)
- Mounting hardware (screws, knobs, etc.)
- Assembly instructions
Image: All components of the Pronomic PT-6 MKII Projector Cart laid out, showing the main pole, base with wheels, and two adjustable shelves.
4. Setup and Assembly
Follow these steps for proper assembly. It is recommended to have a clear, flat workspace.
Attach the Base: Connect the main vertical pole to the base with the four casters. Ensure the locking mechanism is secure.
Image: The base of the cart with four wheels attached to the main vertical pole.
Install Shelves: Attach the two shelves to the main pole using the provided mounting hardware. The shelves are independently adjustable for height and tilt.
Image: The two shelves mounted on the main pole, showing their relative positions.
Secure Adjustments: Tighten all knobs and fasteners to ensure stability. The smaller shelf can rotate 360 degrees, and both shelves can tilt +/- 35 degrees.
Image: A close-up view of the black adjustment knob used to secure the shelf's tilt and height.
Check Stability: Before placing any equipment, gently test the cart's stability and ensure all wheels roll freely and brakes engage correctly.
Image: Front view of the assembled Pronomic PT-6 MKII cart, showing both shelves and the base with wheels.
5. Operating Instructions
The Pronomic PT-6 MKII is designed for versatile use with projectors, laptops, and other equipment.
Height Adjustment
The cart's height can be adjusted steplessly from 70 cm to 110 cm (27.5 to 43.3 inches). Loosen the height adjustment knob on the main pole, set to the desired height, and re-tighten securely.
Shelf Tilt Adjustment
Both shelves can be tilted +/- 35 degrees. Loosen the tilt adjustment knobs located beneath each shelf, adjust the angle, and then firmly re-tighten the knobs.
Shelf Rotation
The smaller upper shelf can be rotated 360 degrees independently. This allows for optimal positioning of a projector or laptop.
Mobility and Braking
The cart is equipped with four smooth-rolling casters. Two of these casters have brakes. To move the cart, ensure brakes are disengaged. To secure the cart in place, press down on the brake levers on the two braked casters until they click into position.

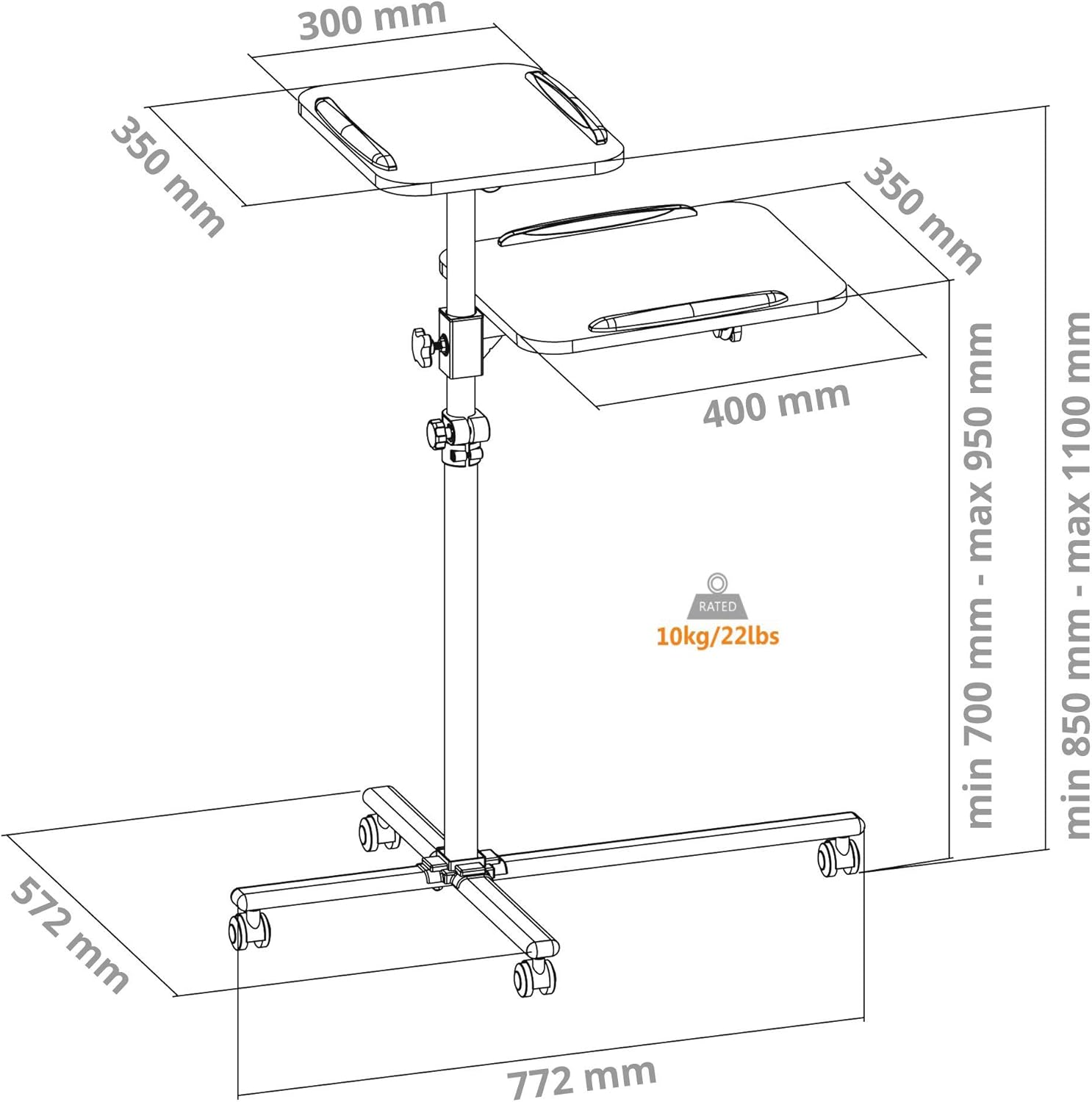

Image: Technical drawing of the Pronomic PT-6 MKII showing key dimensions including height range (min 700mm - max 1100mm), shelf sizes (300x350mm and 350x400mm), and overall base dimensions (772mm x 572mm). It also indicates a 10kg/22lbs load capacity.
6. Maintenance
To ensure the longevity and optimal performance of your Pronomic PT-6 MKII cart, follow these simple maintenance guidelines:
- Cleaning: Wipe down surfaces with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the finish.
- Fasteners: Periodically check all screws, knobs, and fasteners to ensure they are tight. Re-tighten as necessary to maintain stability.
- Casters: Keep the casters free of dust, hair, and debris to ensure smooth movement. Lubricate if necessary.
- Storage: Store the cart in a dry, temperate environment when not in use.
7. Troubleshooting
This section addresses common issues you might encounter with your Pronomic PT-6 MKII cart.
| Problem | Possible Cause | Solution |
|---|---|---|
| Cart is wobbly/unstable. | Loose fasteners; uneven surface; overloaded. | Check and tighten all screws and knobs. Move cart to a flat, stable surface. Reduce load to within specifications. |
| Casters not rolling smoothly. | Debris in wheels; brakes engaged. | Clear any debris from casters. Ensure brakes are fully disengaged. |
| Shelf does not hold position after adjustment. | Adjustment knob not tightened sufficiently. | Ensure the adjustment knob is tightened firmly after setting the desired height or tilt. |
If you encounter issues not listed here, please contact Pronomic customer support.
8. Specifications
Detailed technical specifications for the Pronomic PT-6 MKII Projector and Beamer Cart.
- Model: PT-6 MKII (00037291)
- Brand: Pronomic
- Material: Metal, Plastic
- Color: White
- Upper Shelf Dimensions: Approx. 30 x 35 cm (11.8 x 13.8 inches)
- Lower Shelf Dimensions: Approx. 35 x 40 cm (13.8 x 15.7 inches)
- Load Capacity per Shelf: 10 kg (22 lbs)
- Adjustable Height: 70 cm to 110 cm (27.5 to 43.3 inches)
- Shelf Tilt Adjustment: +/- 35 degrees
- Small Shelf Rotation: 360 degrees
- Casters: 4 swivel casters (2 with brakes)
- Base Dimensions (assembled): Approx. 77.2 cm x 57.2 cm (30.4 x 22.5 inches)
- Weight: 7.31 kg (16.1 lbs)
9. Warranty and Support
For warranty information and customer support, please refer to the documentation provided at the time of purchase or visit the official Pronomic website.
Manufacturer: Pronomic
First Available Date: January 15, 2020
