Introduction
The Canon PowerShot SX530 HS is a versatile digital camera designed to capture high-quality images and Full HD videos. Featuring a powerful 50x optical zoom, built-in Wi-Fi, and NFC capabilities, it offers advanced performance for various shooting scenarios. Its ergonomic design and intelligent systems, such as Intelligent IS and Zoom Framing Assist, aid in capturing clear and focused subjects. The camera is equipped with a 16.0 Megapixel High-Sensitivity CMOS sensor and a DIGIC 4+ Image Processor, forming the Canon HS SYSTEM for impressive results even in low-light conditions.

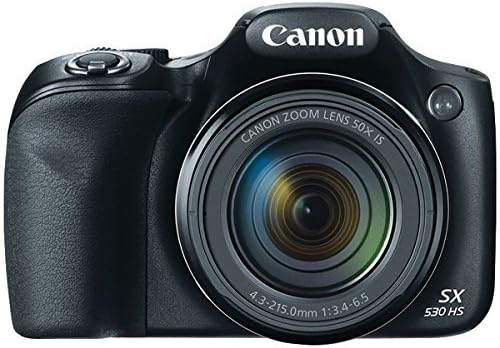

Figure 1: Front view of the Canon PowerShot SX530 HS Digital Camera.
What's in the Box
- PowerShot SX530 HS Digital Camera
- Battery pack NB-6LH
- Battery Charger CB-2LY
- Lens Cap (with strap)
- Neck Strap NS-DC11
- One Year Limited Warranty Card
Key Features
- 50x Optical Zoom: Capture distant subjects with clarity (24-1200mm equivalent).
- Built-in Wi-Fi & NFC: Seamlessly share photos and videos with compatible devices.
- 16.0 Megapixel High-Sensitivity CMOS Sensor: Delivers high-quality images, especially in low light.
- DIGIC 4+ Image Processor: Enhances image quality and processing speed.
- Full HD 1080p Video: Record smooth and lifelike videos at 30 frames per second.
- Intelligent IS: Automatically selects the optimal image stabilization mode for various shooting conditions.
- Zoom Framing Assist: Helps keep track of distant subjects while using high zoom.
Setup
1. Inserting the Battery and Memory Card
Open the battery/memory card compartment cover located on the bottom of the camera. Insert the battery pack NB-6LH, ensuring the correct orientation. Insert a compatible SD/SDHC/SDXC memory card into the designated slot. Close the compartment cover securely.
Figure 2: Battery and memory card compartment.
2. Charging the Battery
Remove the battery pack from the camera. Insert the battery into the provided Battery Charger CB-2LY. Plug the charger into a power outlet. The charging indicator light will show the charging status. Once fully charged, remove the battery from the charger.
Figure 3: Battery and charger.
3. Initial Setup (Date/Time)
Upon first power-on or after the battery has been depleted, the camera may prompt you to set the date and time. Use the directional buttons and the SET button to adjust the settings as required.
4. Connecting to Wi-Fi / NFC
The PowerShot SX530 HS features built-in Wi-Fi and NFC for easy sharing. To connect to a smartphone or other device, press the Wi-Fi button on the camera. Follow the on-screen instructions to select your desired connection method (e.g., connect to a smartphone, connect to a computer, print from a Wi-Fi printer). For NFC, simply touch the camera to a compatible NFC-enabled device to establish a connection.
Video 1: Learn how to connect your Canon PowerShot SX530 Digital Camera to a mobile device for easy photo and video sharing.
Operating the Camera
1. Basic Shooting Modes
Turn the mode dial to select your desired shooting mode. Options include: Auto for automatic settings, P (Program AE) for semi-automatic control, Tv (Shutter-priority AE), Av (Aperture-priority AE), M (Manual) for full manual control, and various SCN (Scene) modes for specific situations like Portrait, Snow, or Fireworks.
Figure 4: Camera back panel with mode dial.
2. Zoom Function
Use the zoom lever around the shutter button to adjust the 50x optical zoom. For distant subjects, utilize the Zoom Framing Assist button to quickly zoom out, locate your subject, and then zoom back in while keeping it framed.
3. Video Recording
To record Full HD 1080p video, press the dedicated movie button. The camera will immediately begin recording. Press the button again to stop recording.
4. Flash Usage
The camera features a built-in flash. Depending on the shooting mode, the flash may pop up automatically or can be manually activated. Adjust flash modes (Auto, On, Off, Slow Sync) via the function menu.
Figure 5: Camera with flash activated.
Maintenance
1. Cleaning the Camera
Use a soft, lint-free cloth to clean the camera body. For the lens, use a lens brush or a specialized lens cleaning cloth and solution. Avoid touching the lens directly with your fingers.
2. Battery Care
Store batteries in a cool, dry place. Avoid exposing them to extreme temperatures. Fully charge batteries before extended use and periodically if stored for long periods to maintain their lifespan.
3. Memory Card Handling
Always format new memory cards in the camera before first use. Avoid removing the memory card while the camera is writing data to prevent corruption. Store memory cards in a protective case when not in use.
Troubleshooting
- Camera not turning on: Ensure the battery is fully charged and correctly inserted.
- Images are blurry: Check focus settings, ensure adequate lighting, and consider using a tripod or activating image stabilization.
- Wi-Fi connection issues: Reset Wi-Fi settings in the camera menu and re-establish the connection. Ensure your mobile device has the Canon Camera Connect app installed and updated.
- Battery drains quickly: Reduce screen brightness, limit Wi-Fi usage, and consider carrying a spare charged battery.
Specifications
| Feature | Specification |
|---|---|
| Brand | Canon |
| Model Name | PowerShot SX530 |
| Effective Still Resolution | 16 MP |
| Photo Sensor Size | 1/2.3-inch |
| Optical Zoom | 50 x |
| Maximum Focal Length | 1200 Millimeters |
| Video Resolution | 1080p |
| Image Stabilization | Optical |
| Screen Size | 3 Inches |
| Connectivity Technology | HDMI, Wi-Fi, NFC |
| Supported File Format | JPEG (Exif v2.3) |
| Item Weight | 0.44 Kilograms |
Warranty and Support
The Canon PowerShot SX530 HS Digital Camera comes with a 1-year limited warranty covering both labor and parts. For detailed warranty information or technical support, please refer to the official Canon website or contact Canon customer service.
