HCDZ Replacement Remote Control for Sony TVs

Introduction

This manual provides comprehensive instructions for the HCDZ Replacement Remote Control, model HCDZ-X16004. This remote is designed to be compatible with various Sony TV models, including KV-32S35, KV-32S36, KV-32S45, KV-32S522, and KV-32S56. It functions immediately upon battery insertion, requiring no additional programming.

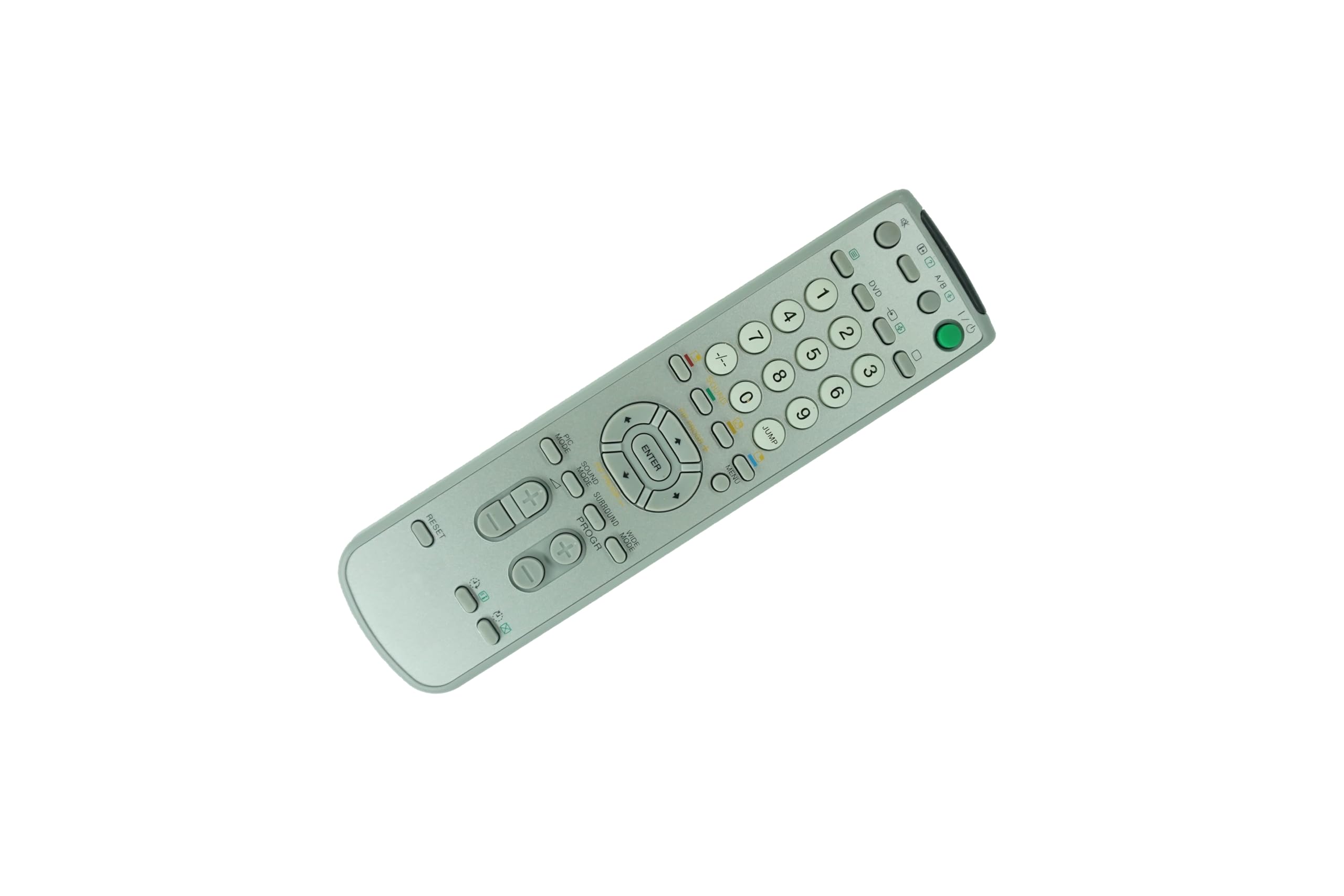

Image: The HCDZ replacement remote control, gray in color, featuring a standard layout of numerical, navigation, and function buttons.

Setup

The package includes one HCDZ replacement remote control. Please note that 2 AA batteries are required for operation and are not included in the package. Follow these steps to install the batteries:

1. Locate the battery compartment cover on the back of the remote control.
2. Slide the cover downwards or press the latch to open it.
3. Insert two AA batteries, ensuring the positive (+) and negative (-) terminals align correctly with the markings inside the compartment.
4. Replace the battery compartment cover, sliding it back into place until it clicks securely.

The remote control is now ready for use with your compatible Sony TV.

Operating Instructions

This remote control is designed for intuitive operation. Point the remote directly at your television's infrared (IR) sensor for optimal performance. No programming is required; simply insert batteries and begin use.

Button Functions:

• Power (Green Button): Turns the television on or off.
• Number Buttons (0-9): Directly select channels or input numerical values.
• -/--: Switches between single-digit and double-digit channel input.
• JUMP: Quickly switch between the current channel and the previously viewed channel.
• DVD: Selects the DVD input source.
• A/B: Likely for selecting audio channels or specific functions on compatible devices.
• Navigation Arrows (Up, Down, Left, Right): Navigate through menus and options.
• ENTER: Confirms selections in menus.
• MENU: Accesses the television's main menu.
• PIC MODE: Adjusts picture settings (e.g., Standard, Dynamic, Movie).
• SOUND MODE: Adjusts audio settings (e.g., Standard, Music, Movie).
• SURROUND MODE: Activates or deactivates surround sound effects.
• WIDE MODE: Changes the screen aspect ratio (e.g., Normal, Zoom, Wide).
• PROGR (+/-): Changes television channels up or down.
• Volume (+/-): Adjusts the audio volume level.
• Mute (): Mutes or unmutes the television audio.
• Input/Source (): Cycles through available input sources (e.g., HDMI, AV).
• RESET: Resets certain settings or functions, depending on the TV model.

Maintenance and Care

To ensure the longevity and proper functioning of your remote control, please observe the following guidelines:

• Avoid exposing the remote control to extremely hot or humid environments.
• Do not mix new batteries with old ones; always replace all batteries simultaneously with new ones.
• Keep the remote control's infrared (IR) sensor away from direct sunlight or strong artificial lighting, as this can interfere with its operation.
• If the remote control will not be used for an extended period, remove the batteries to prevent potential damage from leakage and corrosion.
• Clean the remote control with a soft, dry cloth. Avoid using liquid cleaners or abrasive materials.

Troubleshooting

If your remote control is not functioning as expected, please follow these troubleshooting steps:

1. Check Batteries: Reinstall the batteries, ensuring the contacts are clean and the polarity (+/-) is correct. If the issue persists, replace both batteries with new AA batteries.
2. Check Device Power: Confirm that your television is powered on and functional. Test its operation using the physical buttons on the TV panel.
3. Remove Obstructions: Ensure there are no objects blocking the path between the remote control's IR emitter and the television's IR sensor.
4. Remote Range: Move closer to the television to ensure the remote is within effective operating range.
5. Test the Remote's IR Signal:
   • Open the camera app on your smartphone.
   • Point the front (LED end) of the remote control directly at your phone's camera lens.
   • Press and hold any button on the remote.
   • If the remote is working, you should see a faint white or purple light flashing on your phone's screen. This indicates the remote is emitting an IR signal.
   • If no light is visible, there may be an issue with the batteries or the remote control itself.
6. TV Power Cord: Verify that the power cord to your television is securely plugged in and the TV is turned on.

Specifications

Warranty and Support

For warranty information or technical support regarding your HCDZ Replacement Remote Control, please contact the manufacturer directly. Refer to the product packaging or the HCDZ official website for contact details.
