Introduction
This manual provides essential instructions for the installation, operation, and maintenance of your HQRP Cartridge Filters. These filters are designed for compatibility with various Shop-Vac vacuum cleaner models, including SS16-450, SS16-550A, and SS16-650C.
The HQRP filters are washable and reusable, featuring H12 filtration class to retain 99.97% of particles down to 0.3 micron, contributing to improved air quality.
Image: Two HQRP Cartridge Filters, showcasing their pleated design and black rubber seals.
Setup and Installation
Proper installation of your HQRP cartridge filter is crucial for optimal vacuum performance and filtration efficiency. Always ensure the vacuum cleaner is unplugged before attempting any installation or maintenance.
1. Removing the Old Filter
- Disconnect the vacuum cleaner from the power source.
- Unlatch the tank cover and carefully remove it from the vacuum tank.
- Locate the existing filter. If it's a cartridge filter, it will typically be secured over a lid cage. Unscrew or unlatch any retaining mechanisms.
- Gently slide the old filter off the lid cage. Dispose of the old filter responsibly.
Video: Demonstrating the removal of an old filter from a Shop-Vac.
Video Description: A user demonstrates removing a dirty filter from a Shop-Vac. The filter is heavily covered in dust and debris. The user explains how to clean it by banging it or rinsing it with a hose and allowing it to air dry. This video is from an influencer, but it shows the practical removal process.
2. Installing the New Cartridge Filter
- With the tank cover in an upside-down position, slide the new HQRP cartridge filter down over the lid cage.
- Push the filter until its seal is firmly against the cover, ensuring a tight fit.
- If your model uses a filter retainer, place it into position over the filter opening and secure it by turning the handle until it's tight.
- Carefully place the tank cover back onto the vacuum tank and secure the latches.
Video: Visual guide for installing a new cartridge filter.
Video Description: A seller demonstrates the installation of a 90304 replacement filter. It shows the filter being placed onto the vacuum's motor head and secured, highlighting its compatibility and ease of installation.

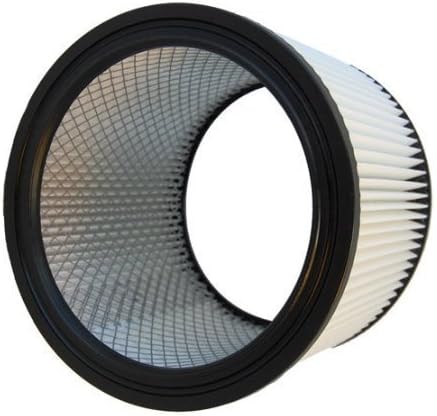

Image: HQRP filter showing its pleated structure and internal mesh.
Operating Considerations
The HQRP cartridge filter is versatile and can be used for both dry and small quantities of wet pick-up. However, for large quantities of liquid, a foam sleeve (sold separately or included in some kits) is recommended.
Dry Pick-Up
For dry debris, dust, and powders, the cartridge filter provides excellent filtration. For very fine dust or powders, using a disposable filter bag in conjunction with the cartridge filter is recommended to extend the life of the cartridge filter and improve filtration.
Image: Filter highlighting its ability to remove dirt, dust, and allergens.
Wet Pick-Up
When vacuuming liquids, it is essential to remove the cartridge filter and any disposable filter bags. Install a foam sleeve over the lid cage for wet pick-up operations. This prevents damage to the cartridge filter and ensures proper wet vacuuming functionality.
Video: Demonstrating the use of a foam sleeve for wet pick-up.
Video Description: A seller demonstrates the installation of a foam sleeve for wet vacuuming, showing how it fits over the filter cage. The video also shows the cartridge filter and its components.
Important: Never use the foam sleeve and the cartridge filter simultaneously, as this can damage both components.
Maintenance and Cleaning
Regular cleaning of your HQRP filter will maintain optimal performance and extend its lifespan. These filters are designed to be washable and reusable.
Cleaning Procedure
- Remove the filter from the vacuum cleaner as described in the "Setup and Installation" section.
- Gently tap the filter against the inside of a trash receptacle to dislodge loose dirt and debris.
- Rinse the filter from the inside out under running water (e.g., with a garden hose). Ensure all pleats are thoroughly cleaned.
- Allow the filter to air dry completely for at least 24 hours before re-installation. Do not use the vacuum with a wet filter.
Video: Official Shop-Vac guide on filter installation and cleaning.
Video Description: An official Shop-Vac video detailing the installation and cleaning process for cartridge filters. It visually guides users through removing, cleaning (shaking off dirt, rinsing with water), and drying the filter, as well as installing disposable filter bags and using the wet pick-up feature with a foam sleeve. This video is highly informative for maintenance.
Image: Diagram illustrating the H12 filtration capability of the filter, capturing various particles.
Troubleshooting
- Reduced Suction: Check if the filter is clogged with debris. Clean or replace the filter as necessary. Ensure the filter is correctly seated and sealed.
- Dust Escaping: Verify that the filter is properly installed and sealed against the motor housing. Inspect the filter for any tears or damage; replace if found.
- Filter Damage: Avoid using the cartridge filter for wet pick-up without a foam sleeve, as this can damage the paper pleats. Ensure the filter is completely dry before re-installation to prevent mold or mildew.
Specifications
| Feature | Detail |
|---|---|
| Brand | HQRP |
| Model Number | 887774412091413 |
| Compatible Devices | Shop-Vac SS16-450, SS16-550A, SS16-650C |
| Material Type | PP (Polypropylene) |
| Filtration Class | H12 (retains 99.97% of particles down to 0.3 micron) |
| Reusability | Washable and Reusable |
| Product Dimensions | 8"L x 8"W x 6.5"H |
Image: HQRP filter illustrating compatibility with various Shop-Vac models.
Warranty and Support
HQRP offers a 2-week DOA (Dead On Arrival) replacement warranty for this product. If you encounter any issues with your filter upon arrival, please contact your retailer for a replacement.
For further assistance or inquiries regarding your HQRP filters, please refer to the contact information provided by your product retailer or visit the official HQRP website.
