GIVI HP1111 Handguard Instruction Manual

1. Product Overview

The GIVI HP1111 Handguards are designed to provide essential protection for motorcycle riders. Constructed from durable injection-molded thermoplastic, these handguards offer defense against cold weather, wind, and light impacts, enhancing rider comfort and safety during various riding conditions.

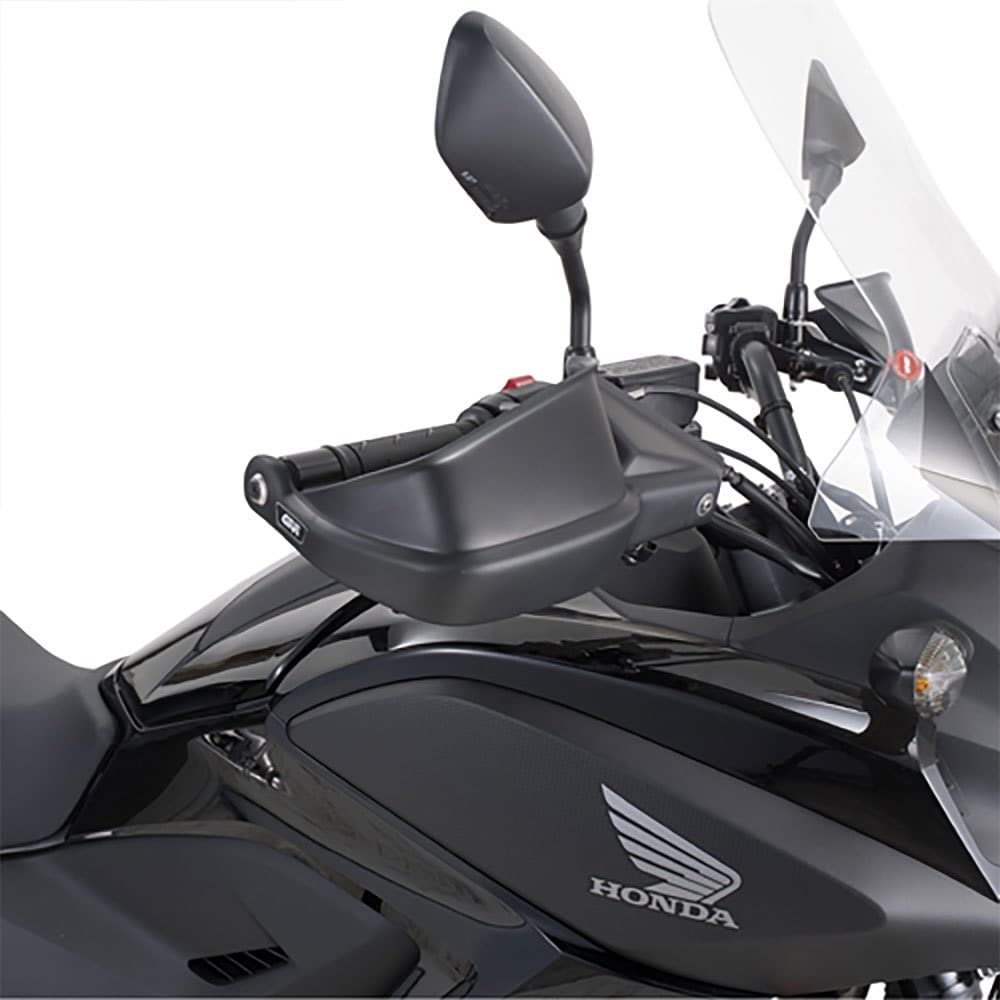

Image 1.1: GIVI HP1111 Handguards. These handguards are designed to integrate seamlessly with your motorcycle's handlebars, providing a protective barrier for your hands.

2. Safety Information

Always prioritize safety when installing and using motorcycle accessories. Improper installation can lead to serious injury or damage to your motorcycle.

• Ensure your motorcycle is stable on its stand before beginning installation.
• Wear appropriate personal protective equipment (PPE) during installation.
• Verify all fasteners are securely tightened according to torque specifications (if available) to prevent loosening during operation.
• Regularly inspect the handguards and mounting hardware for any signs of wear, damage, or looseness before each ride.
• Do not modify the handguards or mounting components, as this may compromise their structural integrity and protective capabilities.

3. Package Contents

Before proceeding with installation, please verify that all components are present in the package:

• Two (2) GIVI HP1111 Handguards (Left and Right)
• Specific Mounting Brackets (may include variations for different transmission types, e.g., manual or automatic)
• Fasteners (bolts, washers, spacers, etc.)
• Installation Instructions (this document)

If any parts are missing or damaged, please contact your retailer or GIVI support before attempting installation.

4. Setup and Installation

Installation of the GIVI HP1111 Handguards requires basic mechanical skills and tools. If you are unsure about any step, it is recommended to seek assistance from a qualified motorcycle technician.

Required Tools:

• Hex key set
• Wrench set
• Torque wrench (recommended)
• Thread-locking compound (optional, for added security)

Installation Steps:

1. Prepare the Motorcycle: Park your motorcycle on a level surface and secure it on its center stand or a paddock stand. Ensure the engine is off and cool.
2. Remove Existing Bar Ends: Carefully remove the existing bar ends or handlebar weights from both sides of the handlebar. Keep any original hardware in a safe place.
3. Identify Brackets: Identify the correct mounting brackets for the left and right sides. Note that for some motorcycle models, there may be specific brackets for manual ('M') or automatic ('A') transmission on the clutch side (left handlebar). Ensure you use the appropriate bracket for your motorcycle's configuration.
4. Attach Mounting Brackets: Secure the GIVI mounting brackets to the handlebar ends using the provided hardware. Ensure they are oriented correctly and allow for full range of motion of the brake and clutch levers. Do not fully tighten at this stage.
5. Mount Handguards: Attach the HP1111 handguards to the installed mounting brackets. Align the handguards to provide optimal coverage and clearance for your hands and controls.
6. Adjust and Tighten: Once the handguards are in the desired position, carefully tighten all mounting bolts. If torque specifications are provided, use a torque wrench to ensure proper tightness. Apply thread-locking compound if desired for critical fasteners.
7. Check Clearance: Turn the handlebars from lock to lock to ensure there is no interference with the fuel tank, fairing, or any other components. Also, check that the brake and clutch levers operate freely without obstruction from the handguards.

After installation, take a short, slow test ride to confirm proper fitment and operation before riding at higher speeds.

5. Operating Instructions

The GIVI HP1111 Handguards are designed for passive protection and do not require active operation. Once correctly installed, they provide continuous benefits:

• Weather Protection: They shield your hands from wind, rain, and cold, significantly improving comfort during adverse weather conditions.
• Impact Protection: The robust thermoplastic construction offers protection against light impacts from road debris, branches, or minor falls.
• Enhanced Riding Comfort: By reducing direct exposure to elements, hand fatigue can be minimized, leading to a more enjoyable and safer riding experience.

6. Maintenance

To ensure the longevity and effectiveness of your GIVI HP1111 Handguards, follow these simple maintenance guidelines:

• Regular Inspection: Periodically check all mounting bolts for tightness. Vibrations from riding can cause fasteners to loosen over time.
• Cleaning: Clean the handguards with mild soap and water. Use a soft cloth or sponge. Avoid abrasive cleaners, solvents, or harsh chemicals, as these can damage the thermoplastic material.
• Damage Check: Inspect the handguards for cracks, deep scratches, or other damage. If significant damage is present, consider replacing the handguards to maintain optimal protection.

7. Troubleshooting

Most issues with handguards are related to installation or fitment. Here are some common troubleshooting tips:

• Handguards Feel Loose: Re-check all mounting bolts and ensure they are tightened securely. Refer to the installation section for proper tightening procedures.
• Interference with Controls/Tank: If the handguards interfere with the brake/clutch levers or touch the fuel tank at full lock, loosen the mounting bolts slightly and adjust the position of the handguards and brackets. Ensure adequate clearance before re-tightening.
• Difficulty with Installation: Double-check that you are using the correct mounting brackets for your specific motorcycle model and transmission type. Some motorcycles may require specific bracket orientations.
• Vibration: Excessive vibration might indicate loose mounting hardware. Ensure all bolts are tightened correctly.

If you continue to experience issues, consult a professional motorcycle mechanic or contact GIVI customer support.

8. Specifications

9. Warranty and Support

For detailed information regarding the warranty terms and conditions for your GIVI HP1111 Handguards, please refer to the official GIVI website or contact your authorized GIVI dealer. It is recommended to retain your proof of purchase for any warranty claims.

For technical assistance, installation queries, or to report any issues, please reach out to GIVI customer support or your local GIVI service center. Contact information can typically be found on the official GIVI website.
