Amazon Basics 6-Sheet High-Security Micro-Cut Shredder

1. Introduction and Overview

The Amazon Basics 6-Sheet High-Security Micro-Cut Shredder is designed for home and office use, providing a secure way to dispose of sensitive documents and credit cards. Its micro-cut technology transforms paper into tiny confetti-like pieces, meeting high security level P-4 standards.

Key features include:

• Micro-cut shredding for enhanced security.
• Capacity to shred up to 6 sheets of 20-pound bond paper simultaneously.
• Dedicated slot for shredding credit cards (one at a time).
• Ability to shred staples and small paper clips.
• Overheat protection with automatic shut-off.
• Convenient 3-mode power switch (Auto, Off, Reverse).
• Easy-to-empty 4.1-gallon bin.

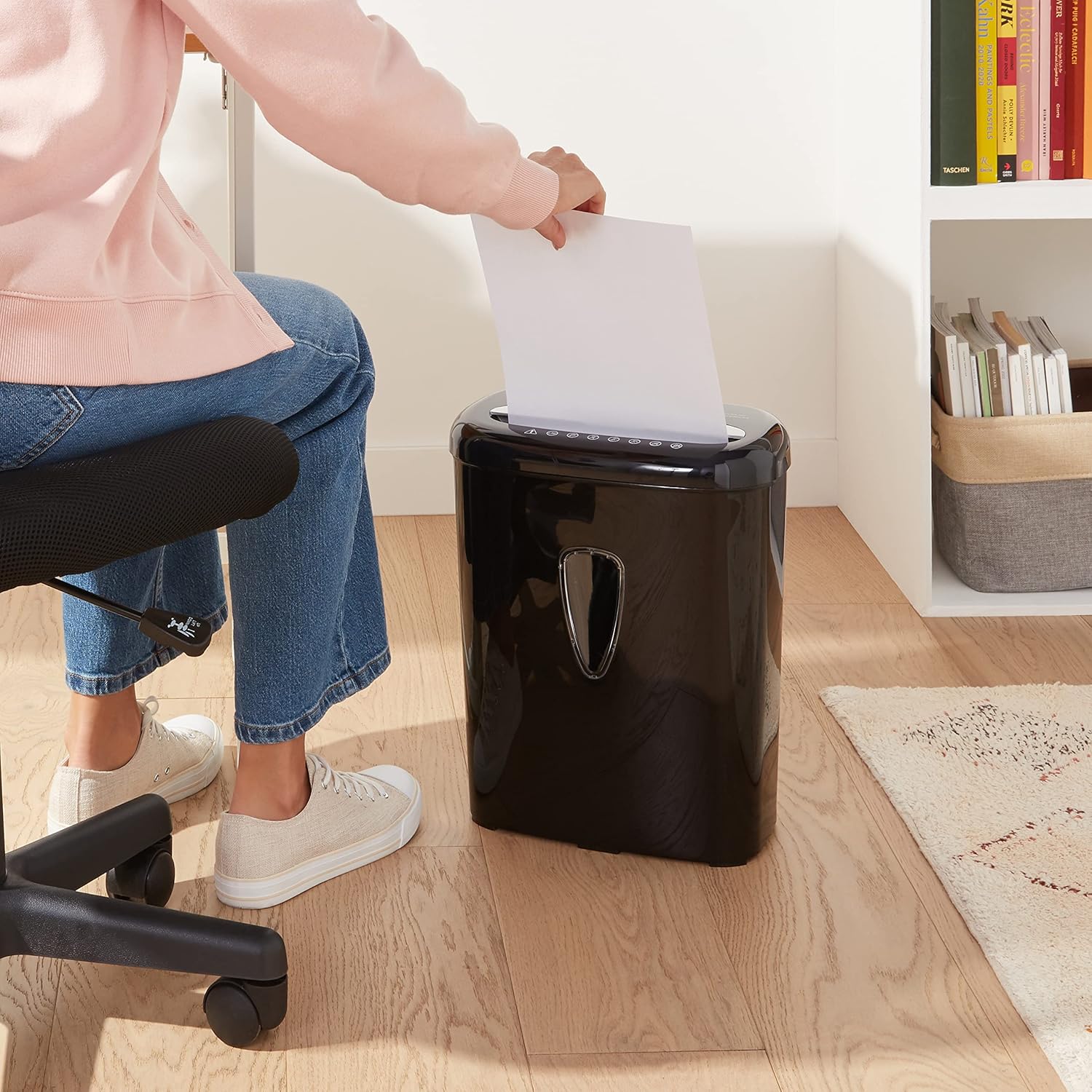

Figure 1: The Amazon Basics 6-Sheet Micro-Cut Shredder in operation, demonstrating its ability to shred paper into small, secure particles.

2. Safety Information

Please read and understand all safety warnings before using this product to prevent injury or damage.

• Important Note: Do not spray or keep any aerosol products in or around the shredder.
• Do not shred items like metallic credit cards, adhesive labels, or continuous forms.
• Keep loose clothing, jewelry, hair, and hands away from the paper entry slot.
• Always unplug the shredder when not in use or before cleaning.
• Supervise children and pets when the shredder is in use.
• Do not operate the shredder if the power cord is damaged.

For more detailed safety guidelines, refer to the official Safety Information (PDF).

3. Setup

Follow these steps to set up your shredder:

1. Unpack: Carefully remove all components from the packaging.
2. Placement: Place the shredder on a stable, flat surface near a standard electrical outlet. Ensure there is adequate space around the unit for ventilation.
3. Assemble: Place the shredder head securely onto the waste bin. Ensure it is properly seated to allow for safe operation.
4. Power Connection: Plug the power cord into a grounded electrical outlet.

Figure 2: Front view of the shredder, showing its compact design and the clear window for viewing shredded contents.

For detailed installation instructions, please consult the Installation Manual (PDF).

4. Operating Instructions

Your shredder features a 3-mode power switch located on the top of the unit.

• AUTO: The shredder will automatically start when paper is inserted and stop when shredding is complete.
• OFF: The shredder is powered off.
• REVERSE: Use this setting to clear paper jams by reversing the shredding mechanism.

4.1. Shredding Paper

1. Ensure the power switch is set to AUTO.
2. Insert up to 6 sheets of 20-pound bond paper into the 8.7-inch paper-entry width slot. The shredder will automatically begin shredding.
3. Once shredding is complete, the motor will stop.

4.2. Shredding Credit Cards

1. Ensure the power switch is set to AUTO.
2. Insert one credit card at a time into the dedicated credit card slot.
3. The shredder will destroy the card and stop automatically.

4.3. Overheat Protection

The shredder is designed for intermittent use. It has a maximum continuous run time of 3 minutes, followed by a 30-minute cool-down period. If the shredder runs continuously beyond its maximum run time, it will automatically shut off to protect the motor from overheating. An LED indicator will illuminate to signal an overheat condition. Allow the shredder to cool down before resuming operation.

Figure 3: Visual representation of the shredder's main features and capacities.

Figure 4: Proper technique for feeding documents into the shredder's paper entry slot.

5. Maintenance

Regular maintenance ensures optimal performance and extends the life of your shredder.

5.1. Emptying the Waste Bin

When the 4.1-gallon bin is full, lift the shredder head using the integrated lift handle and empty the shredded material. For convenience, you may line the bin with a standard trash bag.

5.2. Oiling the Shredder Blades

To maintain shredder performance and prevent jams, regularly oil the shredder blades. Apply shredder oil (or use lubricating sheets) across the paper entry slot. Run the shredder in reverse for a few seconds, then in auto mode to distribute the oil. This should be done after every 30 minutes of accumulated shredding or when performance decreases.

5.3. Cleaning

Wipe the exterior of the shredder with a soft, dry cloth. Do not use abrasive cleaners or solvents. Periodically clear any paper dust or debris from around the shredding mechanism when the unit is unplugged.

6. Troubleshooting

If you encounter issues with your shredder, refer to the following common problems and solutions:

For more comprehensive troubleshooting steps, please refer to the Troubleshooting Guide (PDF).

7. Specifications

Detailed technical specifications for your Amazon Basics Shredder:

• Model: AU600MA-Parent
• Cut Type: Micro Cut
• Sheet Capacity: 6 sheets (20-pound bond paper)
• Credit Card Capacity: 1 card at a time
• Bin Capacity: 4.1 Gallons
• Paper Entry Width: 8.7 inches
• Shred Size: 5/32 x 15/32 inches (4 x 12 mm)
• Security Level: P-4
• Continuous Run Time: 3 minutes
• Cool-down Time: 30 minutes
• Item Weight: 9.9 pounds
• Product Dimensions: 7.32 x 12.76 x 15.94 inches
• Material Type: Plastic
• Color: Black

Figure 5: Detailed dimensions of the shredder for proper placement and space planning.

8. Warranty and Support

Your Amazon Basics shredder comes with a limited warranty. For specific warranty terms and conditions, please refer to the official Warranty (PDF) document.

For product support, technical assistance, or to inquire about replacement parts, please visit the Amazon Basics support page or contact customer service through your Amazon account.
