Volkswagen GASKET 06D-145-117 Instruction Manual

1. Introduction

This manual provides essential information for the proper handling, installation, and maintenance of the Volkswagen GASKET, model number 06D-145-117. This component is designed to create a static seal between two mating surfaces, preventing leakage of fluids or gases within an automotive system. Adherence to these instructions is crucial for optimal performance and longevity of the gasket and the associated system.

2. Safety Information

• Always wear appropriate personal protective equipment (PPE), such as gloves and eye protection, when handling automotive components.
• Ensure the vehicle's engine is cool and depressurized before beginning any work involving gaskets.
• Refer to the vehicle's specific service manual for detailed procedures and torque specifications.
• Keep all tools and parts clean and free from contaminants.
• If unsure about any step, consult a qualified automotive technician.

3. Installation

Proper installation is critical for the effective sealing function of the gasket. It is recommended that installation be performed by a certified automotive technician.

1. Preparation: Ensure the mating surfaces are thoroughly cleaned, free from old gasket material, debris, oil, and corrosion. Use a suitable gasket scraper and cleaning agent if necessary. Inspect surfaces for any damage or irregularities.
2. Gasket Placement: Carefully position the new Volkswagen GASKET (06D-145-117) onto one of the clean mating surfaces. Ensure it is correctly aligned with all bolt holes and passages. Do not stretch or deform the gasket during placement.
3. Component Assembly: Gently bring the second mating component into contact with the gasket. Ensure proper alignment before tightening any fasteners.
4. Fastener Tightening: Install all fasteners by hand until snug. Then, using a torque wrench, tighten fasteners to the manufacturer's specified torque values and sequence. Typically, a crisscross or spiral pattern is used to ensure even compression. Overtightening or uneven tightening can lead to gasket failure.
5. Final Inspection: After installation, visually inspect the sealed area for proper fitment.

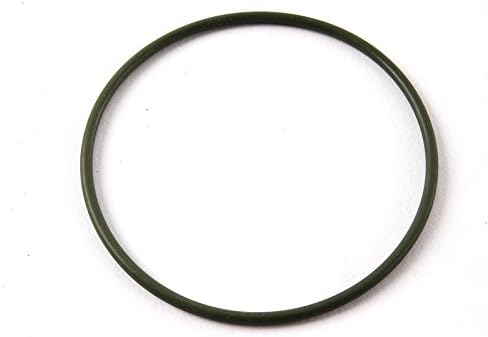

Figure 1: The Volkswagen GASKET, model 06D-145-117, a circular sealing component designed for automotive applications.

4. Maintenance

Once installed, the Volkswagen GASKET (06D-145-117) typically requires no direct maintenance. However, periodic inspection of the sealed area is recommended as part of routine vehicle maintenance to check for any signs of leakage or degradation. If any leaks are detected, the gasket may need to be replaced.

5. Troubleshooting

If issues arise after gasket installation, consider the following common problems and potential solutions:

• Leakage:
  • Cause: Improper surface preparation, incorrect torque, damaged gasket during installation, or a faulty mating surface.
  • Solution: Re-inspect the installation. If necessary, remove the component, clean surfaces thoroughly, replace the gasket with a new one, and re-install following all torque specifications.
• Premature Failure:
  • Cause: Exposure to incompatible fluids, excessive temperature, or pressure beyond design limits.
  • Solution: Verify the gasket is the correct type for the application. Address any underlying system issues (e.g., overheating, over-pressurization).

For persistent issues, consult a professional automotive service center.

6. Specifications

7. Warranty Information

This Volkswagen GASKET is covered by the manufacturer's standard warranty. For specific details regarding warranty terms, conditions, and duration, please refer to the official Volkswagen warranty documentation provided with your purchase or contact an authorized Volkswagen dealer.

8. Support

For technical assistance, installation guidance, or inquiries regarding the Volkswagen GASKET (06D-145-117), please contact your authorized Volkswagen service center or refer to the official Volkswagen service resources.
