Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of the Schellenberg Maxi 50201 Roller Set. This product is designed for use with roller shutter systems, specifically for shutter belts with a width of 23mm. Please read these instructions carefully before installation and use to ensure proper function and longevity of the product.
Product Overview and Components
The Schellenberg Maxi 50201 roller set is a durable and robust component for your roller shutter system. It includes the roller mechanism and the frame for mounting.
- Sturdy and high-quality roller mechanism for smooth operation.
- Designed for roller shutter belts with a width of 23 mm (Maxi system).
- Suitable for shutter belts up to 5.2 meters in length.
- Features a steel frame for secure installation.

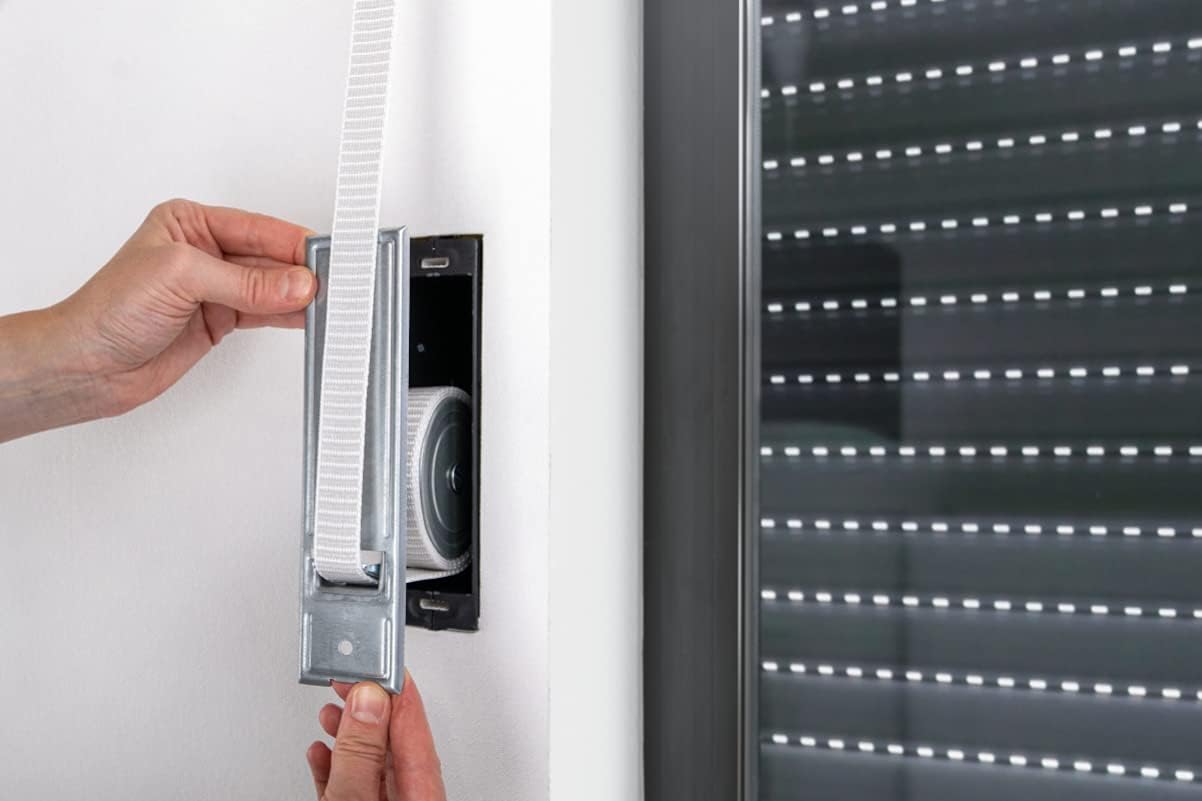

Setup and Installation
The Schellenberg Maxi 50201 roller set is designed for recessed installation within a wall opening. Ensure the wall opening dimensions are appropriate for the product.
- Prepare the Wall Opening: Ensure the wall opening has the correct dimensions. The product dimensions are approximately 194 mm (height) x 50 mm (width) x 122 mm (depth). The hole spacing for mounting screws is 160 mm.
- Insert the Roller Set: Carefully place the roller set into the prepared wall opening.
- Attach the Shutter Belt: Guide the 23mm wide shutter belt through the roller mechanism. Ensure the belt is properly wound onto the roller.
- Secure the Frame: Fasten the frame of the roller set to the wall using appropriate screws (not included) through the designated mounting holes. The hole spacing is 16 cm.
- Test Functionality: After installation, gently pull and release the shutter belt to ensure smooth operation of the roller mechanism.
Operating Instructions
Once installed, the Schellenberg Maxi 50201 roller set operates as part of your roller shutter system. To operate your roller shutter:
- To Lower the Shutter: Gently pull the shutter belt downwards. The roller mechanism will unwind the belt, allowing the shutter to descend.
- To Raise the Shutter: Pull the shutter belt upwards. The roller mechanism will wind the belt, causing the shutter to ascend.
- Stopping the Shutter: Release the belt at the desired position. The internal mechanism of the roller set will hold the shutter in place.
Always operate the shutter belt with a smooth, controlled motion to prevent damage to the belt or the roller mechanism.
Maintenance
The Schellenberg Maxi 50201 roller set requires minimal maintenance to ensure long-term performance.
- Cleaning: Periodically wipe the visible parts of the roller set with a soft, damp cloth. Avoid abrasive cleaners or solvents.
- Inspection: Regularly inspect the shutter belt for any signs of wear, fraying, or damage. A damaged belt should be replaced promptly to prevent operational issues.
- Lubrication: The internal mechanism is generally maintenance-free. Do not attempt to lubricate internal components unless specifically instructed by the manufacturer.
Troubleshooting
If you encounter issues with your Schellenberg Maxi 50201 roller set, consider the following common problems and solutions:
- Shutter Belt Does Not Move Smoothly:
- Check if the shutter belt is frayed or damaged. Replace if necessary.
- Ensure the belt is correctly aligned within the roller mechanism and not snagged.
- Verify that the roller set is securely mounted and not obstructed.
- Shutter Does Not Stay in Position:
- This may indicate wear in the internal spring mechanism. Professional inspection or replacement of the roller set may be required.
- Unusual Noises During Operation:
- Inspect for any foreign objects or debris within the roller mechanism.
- Ensure all mounting screws are tight.
For persistent issues, contact Schellenberg customer support or a qualified technician.
Specifications
Refer to the following technical specifications for the Schellenberg Maxi 50201 Roller Set:
| Feature | Detail |
|---|---|
| Model Number | 50201 |
| Brand | Schellenberg |
| Product Dimensions (L x H x D) | 50 x 194 x 122 mm |
| Hole Spacing | 160 mm (16 cm) |
| Compatible Shutter Belt Width | 23 mm (Maxi system) |
| Maximum Shutter Belt Length | Up to 5.2 m (or 5.3 m as per packaging) |
| Material | Plastic (housing), Steel (frame) |
| Color | Gray |
| Weight | 0.25 Kilograms |
| Included Components | 1 cable winder (partially without strap) |
Warranty and Support
For information regarding warranty terms and conditions, please refer to the documentation provided with your purchase or visit the official Schellenberg website. For technical support or further assistance, please contact Schellenberg customer service.
Contact information can typically be found on the product packaging or the manufacturer's official website.
