Pentair SuperFlo VS Variable Speed Pool Pump User Manual

Model: 342001

Your guide to efficient pool pump operation and maintenance.

1. Introduction

Thank you for choosing the Pentair SuperFlo VS Variable Speed Pool Pump, Model 342001. This pump is designed to provide superior performance and energy efficiency for your swimming pool circulation system. Its variable speed technology allows for precise control over water flow, leading to significant energy savings and quieter operation. This manual provides essential information for the safe installation, operation, and maintenance of your new pool pump.

Pentair SuperFlo VS Variable Speed Pool Pump, front-side view

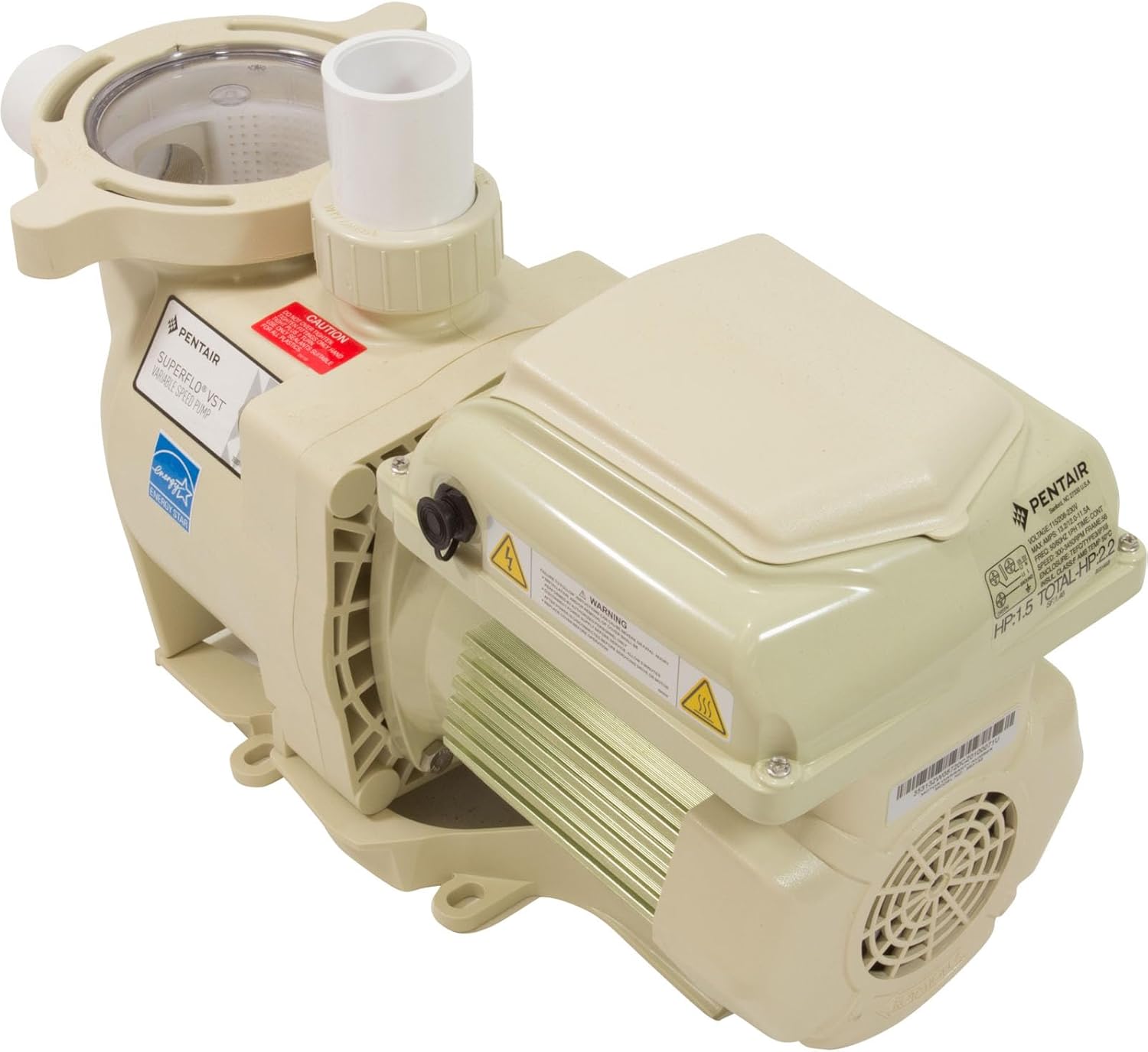

Image 1.1: Front-side view of the Pentair SuperFlo VS Variable Speed Pool Pump.

2. Important Safety Information

Always follow basic safety precautions when installing and operating this product. Failure to follow these instructions could result in severe injury, death, or property damage. This product must be installed and serviced by a qualified pool professional in accordance with all applicable local and national codes and ordinances.

  • Electrical Hazard: Disconnect power before servicing. Failure to do so could result in serious injury or death.
  • Pressure Hazard: Do not operate the pump if any part of the system is not properly assembled or if air is present in the system.
  • Risk of Electric Shock: Install the pump at least 5 feet (1.5 meters) from the inside wall of the pool.
  • Ensure proper grounding and bonding as per local electrical codes.
  • For detailed safety guidelines, refer to the complete User Manual (PDF).

3. Product Features

The Pentair SuperFlo VS pump incorporates advanced features for optimal performance and durability:

  • Variable Speed Technology: Provides optimal energy efficiency by allowing precise control of pump speed.
  • Totally Enclosed Fan Cooled (TEFC) Motor: Enhances durability and extends motor life by protecting against environmental elements.
  • Wide Voltage Compatibility: Operates efficiently with 115V to 230V and 50/60Hz power without requiring special wiring.
  • Digital Control Keypad: Features three programmable speeds for customized operation.
  • Improved Mechanical Seal: Ensures long-lasting, leak-free performance.
  • Genuine O.E.M. Product: Guarantees quality and compatibility.
Digital Control Keypad of Pentair SuperFlo VS pump

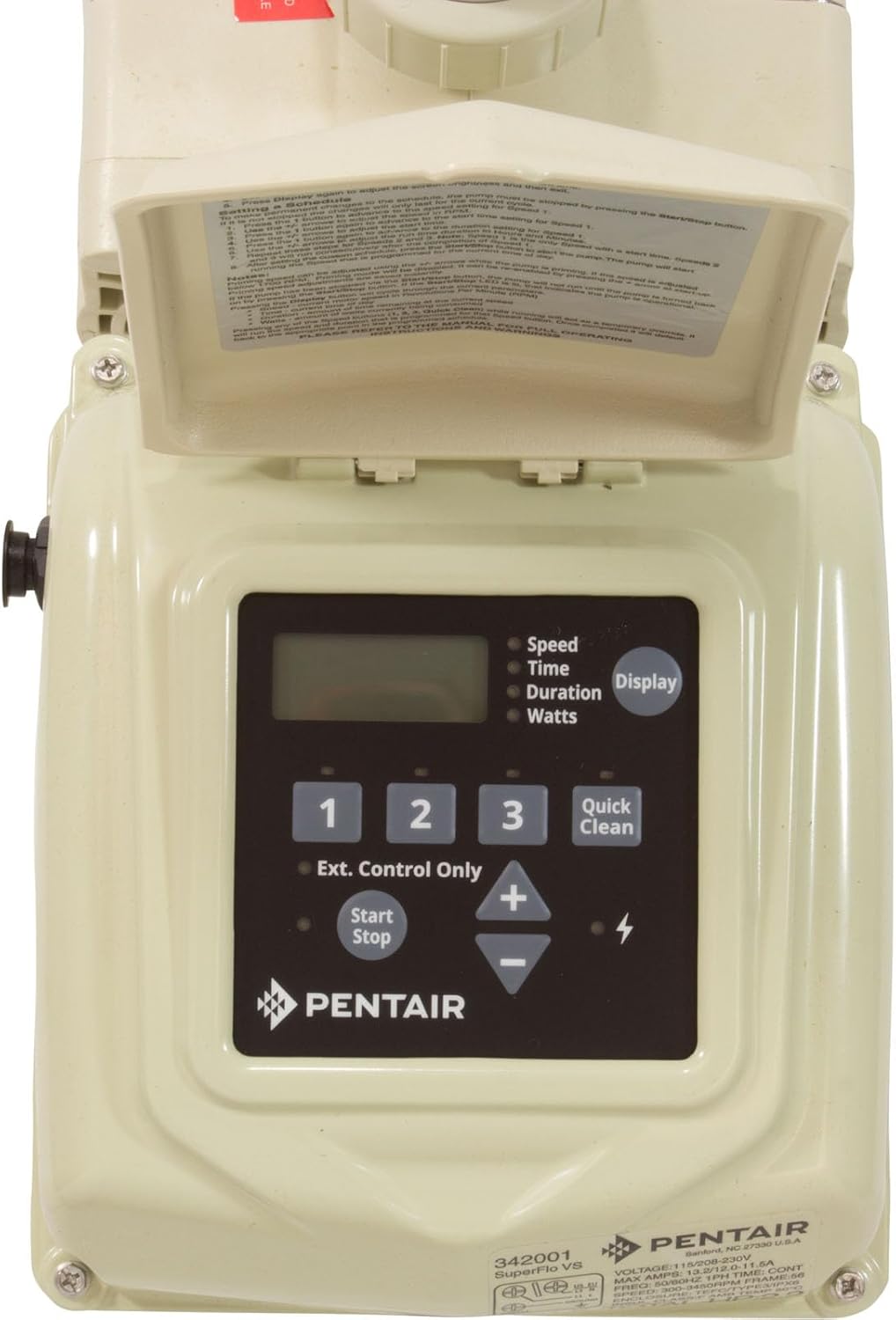

Image 3.1: Digital control keypad for programming speeds.

Rear view of Pentair SuperFlo VS pump showing TEFC motor

Image 3.2: Rear view highlighting the Totally Enclosed Fan Cooled (TEFC) motor.

4. Setup and Installation

Proper installation is crucial for the safe and efficient operation of your SuperFlo VS pump. It is highly recommended that installation be performed by a certified pool professional.

  1. Location: Choose a well-ventilated area, protected from direct sunlight and excessive moisture. Ensure the pump is installed at least 5 feet (1.5 meters) from the pool edge.
  2. Mounting: Securely mount the pump to a solid, level surface to minimize vibration and noise.
  3. Plumbing: Connect the pump to your pool's plumbing system using appropriate fittings. Ensure all connections are watertight. The pump is designed for in-ground pool applications.
  4. Electrical Connection: Connect the pump to a dedicated electrical circuit. The pump is compatible with 115V to 230V and 50/60Hz power. All wiring must comply with local and national electrical codes. Ensure proper grounding and bonding.
  5. Priming: Before initial startup, ensure the pump is properly primed by filling the pump basket with water.
Diagram showing pump dimensions from multiple angles

Image 4.1: Pump Dimensions. Refer to this diagram for space requirements and plumbing considerations.

5. Operating Instructions

The SuperFlo VS pump features an intuitive digital control keypad for easy operation and programming.

  1. Initial Startup: After ensuring the pump is primed and all connections are secure, turn on the power at the circuit breaker.
  2. Using the Digital Keypad:
    • Programmable Speeds (1, 2, 3): Use buttons 1, 2, and 3 to select pre-programmed speeds. These can be customized to suit your pool's needs.
    • Quick Clean: Activates a high-speed cycle for quick cleaning tasks.
    • Start/Stop: Initiates or halts pump operation.
    • Display Button: Cycles through display information such as Speed, Time, Duration, and Watts.
    • +/- Buttons: Adjust settings and values during programming.
  3. Programming Speeds: Consult the full user manual for detailed instructions on how to program custom speeds and schedules for optimal energy efficiency.
  4. Monitoring: Regularly check the pump's performance and the digital display for any alerts or unusual readings.

6. Maintenance

Regular maintenance ensures the longevity and efficient operation of your Pentair SuperFlo VS pump.

  • Pump Basket Cleaning: Regularly inspect and clean the pump's strainer basket to prevent debris buildup, which can restrict flow and strain the pump. Turn off power before opening the basket lid.
  • Mechanical Seal: The pump features an improved mechanical seal for long-lasting performance. If any leaks are observed around the shaft, contact a qualified professional for inspection and replacement.
  • Motor Ventilation: Ensure the motor's fan and vents are clear of obstructions to allow for proper cooling. The TEFC motor is designed for durability, but proper airflow is still essential.
  • Winterization: In colder climates, follow proper winterization procedures to protect the pump from freezing damage. This typically involves draining the pump and plumbing lines.
  • General Inspection: Periodically check for loose connections, unusual noises, or signs of wear. Address any issues promptly.

7. Troubleshooting

This section provides general guidance for common issues. For detailed troubleshooting steps and error codes, refer to the complete User Manual (PDF).

ProblemPossible CauseSolution
Pump not startingNo power, tripped breaker, motor overload, wiring issue.Check power supply, reset breaker, inspect wiring (by professional).
Low water flowClogged strainer basket, dirty filter, air leak in suction line, low water level.Clean basket/filter, check for leaks, ensure adequate water level.
Pump making unusual noiseAir in system, cavitation, worn bearings, debris in impeller.Bleed air from system, check for suction leaks, contact professional for internal inspection.
Water leaking from pumpLoose fittings, worn mechanical seal, cracked housing.Tighten fittings, replace seal (professional), inspect housing.

8. Specifications

AttributeDetail
BrandPentair
Model Number342001
Product Dimensions28"L x 12.5"W x 15.5"H
Item Weight35 Pounds
Power SourceCorded Electric
Voltage115/208-230 Volts
Phase1 Phase
Frequency50/60Hz
Horsepower1.5 HP (Total HP 2.2)
Maximum Flow Rate112 Gallons Per Minute
Maximum Lifting Height5 Meters
MaterialPlastic
ColorTan
Energy Star CertifiedYes
UPC079063764594, 788379866228
Motor label of Pentair SuperFlo VS pump showing specifications and warranty number

Image 8.1: Motor label with electrical specifications and warranty number (353132W08720CZ0100071U).

9. Warranty and Support

As a Genuine O.E.M. Product, the Pentair SuperFlo VS Variable Speed Pool Pump is manufactured to high standards. For specific warranty terms and conditions, please refer to the documentation included with your purchase or visit the official Pentair website.

  • Motor Warranty Number: For warranty claims related to the motor, please refer to the number located on the motor label (e.g., 353132W08720CZ0100071U).
  • Official User Manual: For comprehensive details, including full warranty information, safety warnings, and detailed installation guides, download the official Pentair SuperFlo VS User Manual (PDF).
  • Customer Support: For technical assistance or service inquiries, please contact Pentair customer support through their official channels.
