Intex C330 Krystal Clear Cartridge Filter Pump User Manual

Introduction

This manual provides essential information for the safe operation, installation, maintenance, and troubleshooting of your Intex C330 Krystal Clear Cartridge Filter Pump. Please read all instructions carefully before use to ensure optimal performance and longevity of your product.

Safety Information

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Always follow basic safety precautions when installing and using this electrical equipment. Disconnect the pump from the power source before performing any maintenance or cleaning. Keep children away from the pump and pool area during operation.

Setup and Installation

The Intex C330 Krystal Clear Cartridge Filter Pump is designed for easy setup. Follow these steps for proper installation:

1. Unpack Components: Carefully remove all parts from the packaging. Ensure all components listed in the packing list are present.


   Image: The Intex C330 Krystal Clear Cartridge Filter Pump, showing the main unit and attached hoses.

2. Position the Pump: Place the filter pump on a solid, level surface, at least 8 feet (2.4 meters) away from the pool. Ensure the pump is accessible for maintenance.


   Image: The filter pump positioned on a grassy area, indicating its placement near an above-ground pool.

3. Connect Hoses: Connect the two hoses to the pump and to the pool's inlet and outlet fittings. The pump is suitable for INTEX pools up to 2,400 gallons with 1.25-inch (32mm) diameter hose fittings. Secure all connections with clamps to prevent leaks.


   Image: A close-up view of the hose securely connected to the pool's fitting, featuring a valve for water flow control.

4. Install Filter Cartridge: Open the filter housing and insert the Type H filter cartridge (Item #29007E). Ensure it is seated correctly.


   Image: A Type H filter cartridge, which is easy to clean and made with Dacron paper for effective filtration.

5. Prime the Pump: Before plugging in, ensure the pump is filled with water. Open the air release valve on top of the filter housing to allow air to escape until water flows out. Close the valve once water appears.

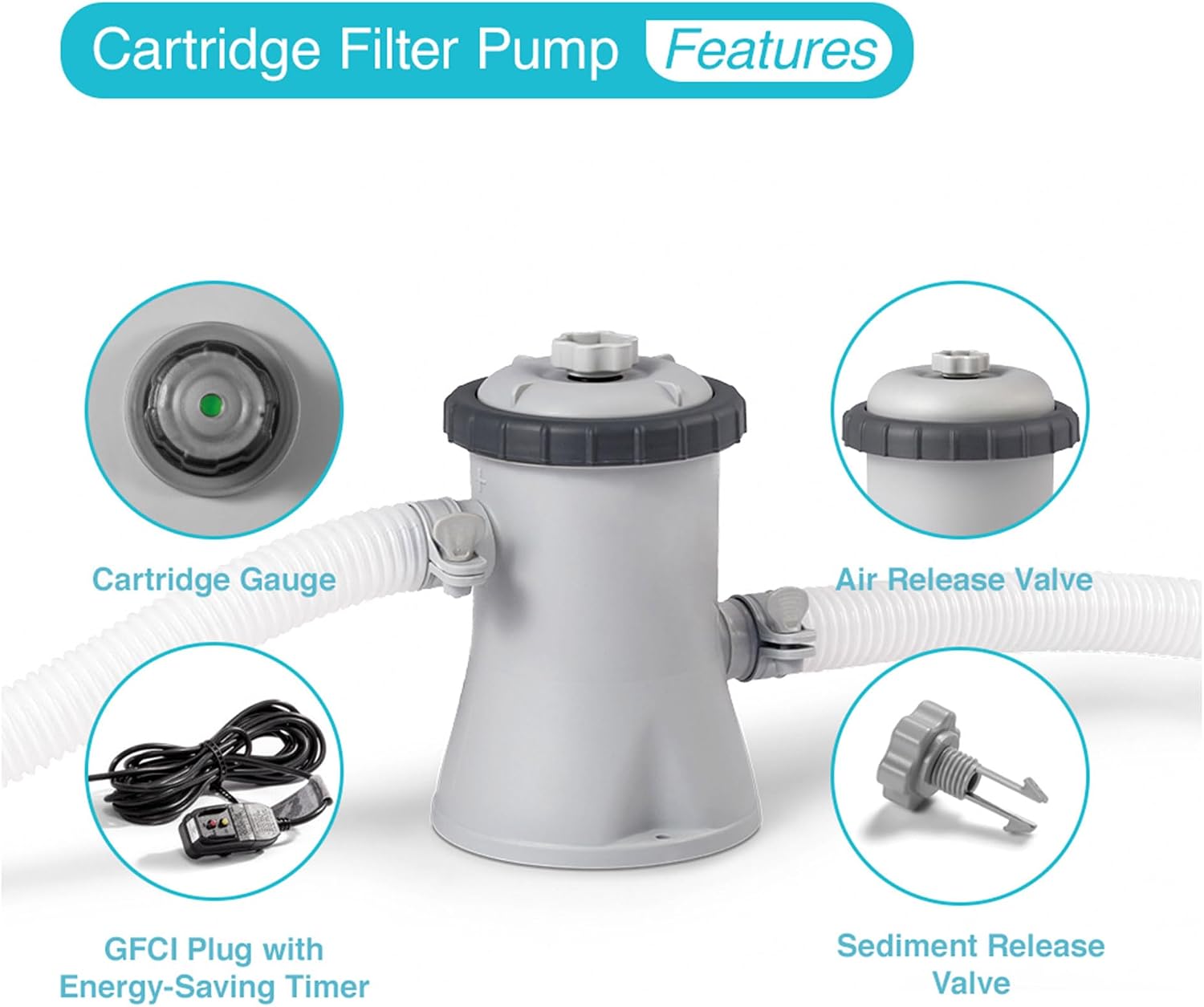

   Image: An exploded view highlighting key features of the filter pump, including the air release valve on top.

6. Connect to Power: Plug the pump into a grounded electrical outlet. The pump features a GFCI plug with an energy-saving timer for added safety and convenience.

Operating Instructions

Your Intex C330 Krystal Clear Cartridge Filter Pump is designed for efficient water circulation and filtration. It has a pump flow rate of 330 GPH (1,250 lph) and a system flow rate of 300 GPH (1,136 lph).

Image: A graphic detailing the specifications of the Intex Cartridge Filter Pump, including flow rate, voltage, and maximum water capacity.

The pump incorporates HydroAeration Technology, which transforms the above-ground pool industry by providing revolutionary water aeration benefits:

• Improved Circulation and Filtration: Injecting air into the water accelerates circulation and joins fine particles into larger clusters that can be filtered more effectively.


  Image: A close-up of the HydroAeration technology in an Intex pool, showing air bubbles being introduced into the water for enhanced circulation and filtration.

• Improved Water Clarity: Aeration removes minerals through oxidation, leading to ultimate water clarity.
• Increased Negative Ions: More negative ions are generated at the water surface, which improves overall air quality around the pool.

Use the built-in energy-saving timer to set desired operating hours for automatic filtration.

Maintenance

Regular maintenance of your filter pump is crucial for maintaining clean and clear pool water. The C330 Krystal Clear Cartridge uses Type H filter cartridges (Item #29007E).

• Filter Cartridge Cleaning: The filter cartridge should be cleaned regularly. A cartridge gauge on the pump notifies when cleaning or replacement is needed.


  Image: A summary of the Intex C330 Cartridge Filter Pump's features, including its compatibility, ease of installation, the presence of a cartridge gauge, and the use of Type H filter cartridges.

• Filter Cartridge Replacement: For optimal filtration, the Type H filter cartridge should be changed every two weeks.
• Sediment Release Valve: Periodically open the sediment release valve at the bottom of the filter housing to drain accumulated debris.
• Winterization: Before winter, disconnect and drain the pump and hoses. Store all components in a dry, protected area to prevent damage from freezing temperatures.

Troubleshooting

If you encounter issues with your Intex C330 Krystal Clear Cartridge Filter Pump, consider the following common solutions:

• Low Water Flow: Check if the filter cartridge is dirty and needs cleaning or replacement. Ensure hoses are not kinked or blocked. Verify that the pool's inlet and outlet fittings are clear of debris.
• Pump Not Starting: Ensure the pump is properly plugged into a functional GFCI outlet. Check the GFCI for a tripped breaker and reset if necessary.
• Air in System: If you hear gurgling noises or see excessive bubbles from the return jet, there might be air in the system. Turn off the pump, open the air release valve until water flows out, then close it and restart the pump. Check all hose connections for tightness.
• Leaks: Inspect all hose connections and O-rings for proper seating and tightness. Replace any worn or damaged seals.

If problems persist, refer to the official Intex support resources or contact customer service.

Specifications

Image: The product packaging displaying key specifications and highlighting the 2-year limited warranty.

Warranty and Support

The Intex C330 Krystal Clear Cartridge Filter Pump comes with a 2-year limited warranty, ensuring quality and reliability.

For further assistance, detailed user guides, or to contact customer support, please refer to the official Intex website or the documents provided with your product:
