Introduction
This manual provides essential instructions for the proper installation, use, and maintenance of your ProTeam Pro 6 Coach Vac Cloth Bag, Model 834072. This cloth bag is designed specifically for ProTeam Pro 6 Coach Vacuums to ensure optimal performance and filtration.

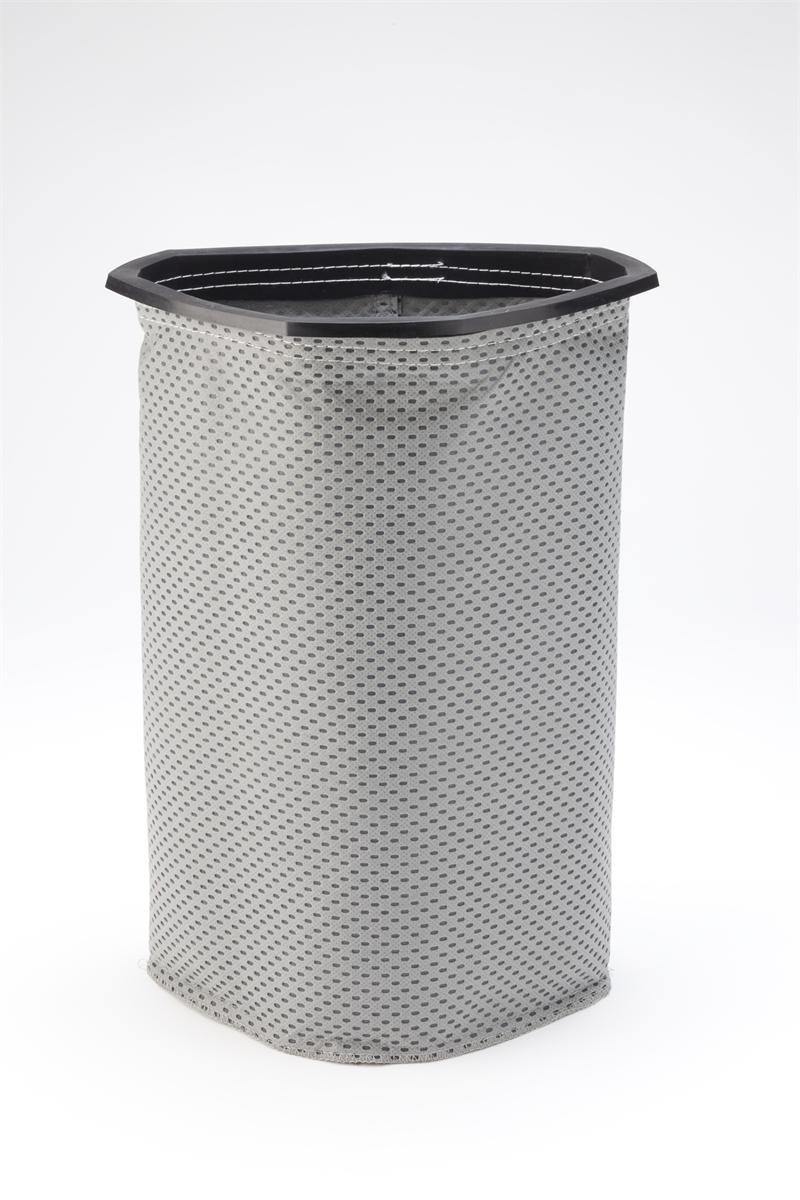

Image: ProTeam Pro 6 Coach Vac Cloth Bag, Model 834072. This image shows the cloth bag folded, highlighting its material and design.
Setup and Installation
Follow these steps to correctly install the cloth bag into your ProTeam Pro 6 Coach Vac:
- Power Off: Ensure the vacuum cleaner is unplugged from the power source before beginning installation. This prevents accidental startup and ensures safety.
- Open Vacuum: Unlatch and remove the lid of your ProTeam Pro 6 Coach Vac. Set it aside carefully.
- Remove Old Bag (if applicable): If replacing an existing bag, carefully remove the old bag. Dispose of it according to local regulations.
- Insert New Cloth Bag: Take the new ProTeam Pro 6 Coach Vac Cloth Bag (Model 834072). Align the bag's collar with the vacuum's inlet port. Ensure a snug fit to prevent dust leakage.
- Secure Bag: Push the bag's collar firmly onto the inlet port until it is fully seated. The bag should hang freely inside the vacuum canister without obstruction.
- Close Vacuum: Replace the vacuum lid and secure the latches firmly. Ensure the lid is properly sealed.
- Verify: Before operating, double-check that the bag is correctly installed and the lid is securely fastened.
Operating Instructions
Once the cloth bag is installed, your ProTeam Pro 6 Coach Vac is ready for operation. The cloth bag acts as the primary filtration and collection system for debris.
- Regular Use: Operate your vacuum as usual. The cloth bag will collect dirt and debris, allowing air to pass through while retaining particles.
- Monitor Performance: Pay attention to the vacuum's suction power. A decrease in suction may indicate a full or clogged bag.
- Avoid Overfilling: Do not allow the bag to become excessively full. Overfilling can reduce suction efficiency and potentially damage the vacuum motor.
Maintenance
Proper maintenance of your cloth bag ensures longevity and consistent vacuum performance.
- Regular Emptying: The cloth bag should be emptied regularly, ideally when it is about two-thirds full. This maintains optimal suction and prevents strain on the vacuum motor.
- Cleaning the Bag:
- Remove the bag from the vacuum.
- Shake the bag vigorously outdoors to dislodge accumulated dust and debris.
- For deeper cleaning, the cloth bag can be hand-washed in cold water with a mild detergent. Rinse thoroughly.
- Allow the bag to air dry completely before reinstallation. Ensure it is fully dry to prevent mold or mildew growth.
- Inspection: Periodically inspect the cloth bag for any tears, holes, or excessive wear. A damaged bag will compromise filtration and vacuum performance. Replace the bag if damage is found.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Reduced Suction | Bag is full or clogged. | Empty or clean the cloth bag. |
| Reduced Suction | Bag is not properly seated. | Reinstall the bag, ensuring the collar is snug on the inlet port. |
| Dust Leakage | Bag is torn or damaged. | Inspect the bag for damage and replace if necessary. |
| Dust Leakage | Bag is not properly seated or lid is not sealed. | Ensure the bag is correctly installed and the vacuum lid is securely latched. |
Specifications
- Model: 834072
- Part Number: PV-834072
- Compatibility: ProTeam Pro 6 Coach Vacuums
- Material: Cloth
- Item Weight: 3.7 ounces
- Package Dimensions: 10.43 x 7.2 x 2.17 inches
- Number of Pieces: 1
- Special Features: Lightweight
Warranty and Support
For specific warranty information or technical support regarding your ProTeam Pro 6 Coach Vac Cloth Bag (Model 834072), please refer to the documentation provided with your ProTeam vacuum cleaner or visit the official ProTeam website. Contact information for customer service is typically available on the manufacturer's website or product packaging.
You can visit the ProTeam Store on Amazon for more products and information.
