Introduction
Thank you for choosing the INVICTA Pro Diver Men's Watch, Model 14357. This manual provides essential information for the proper setup, operation, and maintenance of your timepiece. Please read it thoroughly to ensure optimal performance and longevity of your watch.

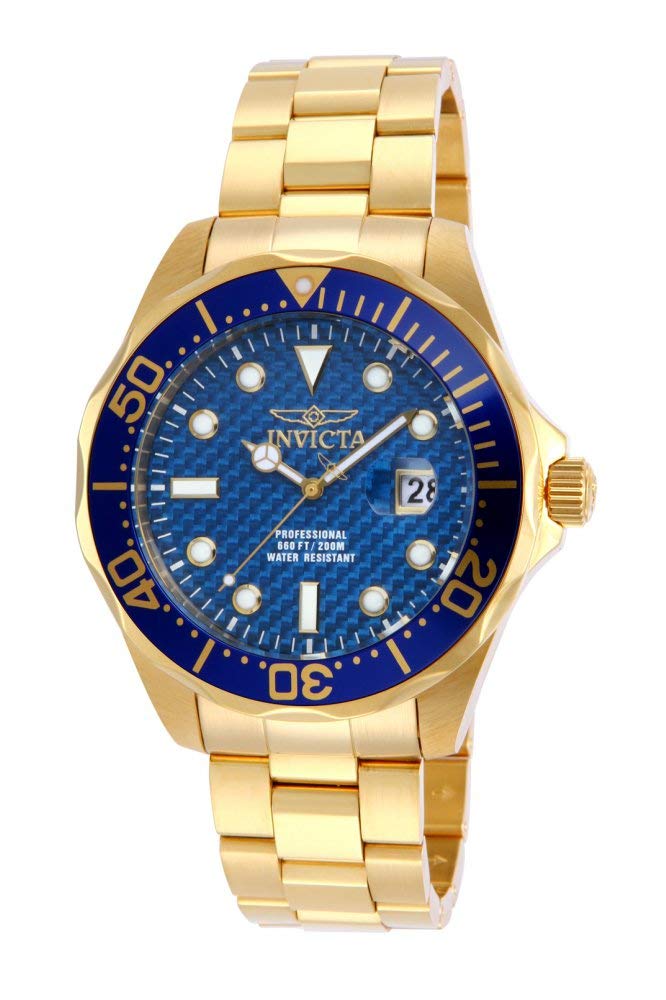

Front view of the Invicta Pro Diver Men's Watch, Model 14357, featuring a gold-plated stainless steel case and bracelet with a blue dial and unidirectional rotating bezel.
Important Safety Information
This manual contains instructions that should be strictly followed at all times not only for optimal use, but to prevent any injuries to yourself, other persons or property. We encourage you to read the entire booklet and understand the meaning of the following symbols:
- DANGER: Highly likely to cause death or serious injury.
- WARNING: Can cause serious injury or death.
- CAUTION: Can or will cause minor or moderate injury or damage.
Button Cell Battery Warnings:
- INGESTION HAZARD: This product contains a button cell or coin battery. DEATH or serious injury can occur if ingested.
- A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
- KEEP new and used batteries OUT OF REACH OF CHILDREN.
- Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.
- This product is intended to be opened only by professionals.
- Remove and immediately recycle or dispose of used batteries according to local regulations and keep away from children.
- Do NOT dispose of batteries in household trash or incinerate.
- Even used batteries may cause severe injury or death.
- Non-rechargeable batteries are not to be recharged.
- Do not try to discharge batteries by any means, and above (manufacturer's specified temperature rating) or incinerate. Doing so may result in injury due to venting, leakage or explosion resulting in chemical burns.
Initial Setup
Setting the Time
- Pull the crown (located on the right side of the watch case) out to position 2.
- Rotate the crown clockwise or counter-clockwise to set the hour and minute hands to the desired time.
- Push the crown back in to position 0 to start the watch.
Setting the Date
- Pull the crown out to position 1.
- Rotate the crown clockwise or counter-clockwise to adjust the date.
- Once the correct date is displayed, push the crown back in to position 0.
Angled view of the watch, highlighting the crown for time and date adjustments.
Operation
Using the Unidirectional Rotating Bezel
The Pro Diver watch features a unidirectional rotating bezel, which is designed to rotate only counter-clockwise. This feature is useful for timing events, such as dive times, by aligning the bezel's zero marker with the minute hand at the start of an event. The bezel will then indicate elapsed time.
Water Resistance
The Invicta Pro Diver Model 14357 is water resistant to 200 meters (660 feet). This rating makes the watch suitable for professional marine activity and serious surface water sports, but not for saturation diving.
Illustration of water resistance levels for Invicta watches. This model is rated for 200M, suitable for swimming and diving.
WARNING: Ensure the crown is fully pushed in to position 0 before exposing the watch to water to maintain its water resistance.
Care and Maintenance
Cleaning
To clean your watch, wipe the case and bracelet with a soft, damp cloth. For stainless steel, a mild soap solution can be used. Rinse thoroughly with clean water and dry immediately with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.
Battery Replacement
This watch is powered by a Swiss Parts ISA 2331/103 quartz movement. When the battery needs replacement, it is recommended to take the watch to an authorized Invicta service center or a qualified watchmaker. Improper battery replacement can compromise the watch's water resistance and internal components.
Storage
When not wearing your watch, store it in a cool, dry place away from direct sunlight and extreme temperatures. Avoid storing it near strong magnetic fields, which can affect the accuracy of the quartz movement.
Troubleshooting
- Watch Not Running: Check if the crown is fully pushed in to position 0. If the watch still does not run, the battery may need replacement.
- Date Not Changing: Ensure the time is set correctly, passing midnight to advance the date. If the date changes at noon, you may need to advance the time by 12 hours.
- Condensation Under Crystal: This may indicate a loss of water resistance. Avoid further exposure to water and have the watch inspected by a qualified technician immediately.
Product Specifications
| Feature | Specification |
|---|---|
| Model Number | 14357 |
| Case Diameter | 47 mm |
| Case Thickness | 14 mm |
| Movement | Swiss Parts ISA 2331/103 Quartz |
| Dial Color | Blue (Carbon Fiber Texture) |
| Bezel | Blue Scallop Edged Unidirectional Rotating |
| Case Material | Gold Plated Solid Stainless Steel |
| Band Material | Gold Plated Solid Stainless Steel |
| Crystal Type | Scratch Resistant Mineral |
| Water Resistance | 200 meters (660 feet) |
| Clasp Type | Fold Over Safety Lock Clasp |
| Item Weight | 408 g |
Rear view of the watch, showing the case back and bracelet.
Warranty and Support
Your Invicta Pro Diver Model 14357 comes with a 5-year limited warranty. For warranty registration and to access the full manual, please visit the official Invicta service website.
Warranty Registration: https://www.invictaservice.com/manual/
Back of the Invicta watch box, displaying warranty registration details and a QR code.
The Invicta watch box, open and ready to house the timepiece.
Additional Product Views
The watch displayed on a male wrist.
Detail of the watch's fold-over safety lock clasp in an open position.
