Orbegozo RA 1000 D Oil Radiator User Manual

Introduction

Thank you for choosing the Orbegozo RA 1000 D Oil Radiator. This manual provides essential information for the safe and efficient operation of your new appliance. Please read these instructions carefully before use and retain them for future reference. This oil radiator is designed to provide supplemental heating for indoor spaces.

Safety Instructions

WARNING: To reduce the risk of fire, electric shock, or injury, observe the following safety precautions:

• Always plug the radiator directly into a wall outlet. Never use with an extension cord or relocatable power tap.
• Do not operate any heater with a damaged cord or plug, or after the heater malfunctions, has been dropped, or damaged in any manner.
• Keep combustible materials, such as furniture, pillows, bedding, papers, clothes, and curtains at least 1 meter (3 feet) from the front of the heater and keep them away from the sides and rear.
• Do not use outdoors.
• This heater is not intended for use in bathrooms, laundry areas, or similar indoor locations. Never locate heater where it may fall into a bathtub or other water container.
• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Arrange cord away from traffic area and where it will not be tripped over.
• To disconnect heater, turn controls to OFF, then remove plug from outlet.
• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the heater.
• A heater has hot and arcing or sparking parts inside. Do not use it in areas where gasoline, paint, or flammable liquids are used or stored.
• Use this heater only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
• Always unplug the heater when not in use.

Package Contents

Please check the contents of the package upon opening:

• Orbegozo RA 1000 D Oil Radiator unit
• Wheel assembly (4 swivel wheels)
• Instruction Manual

Product Overview

Familiarize yourself with the components of your Orbegozo RA 1000 D Oil Radiator.

Figure 1: Full view of the Orbegozo RA 1000 D Oil Radiator, showcasing its white finish, 5 heating elements, control panel, and four swivel wheels for portability.

• Heating Elements (5 modular elements)
• Control Panel (Thermostat and Power Switches)
• Carrying Handle
• Swivel Wheels (4 units)
• Cable Storage
• Power Cord and Plug
• Power Indicator Light

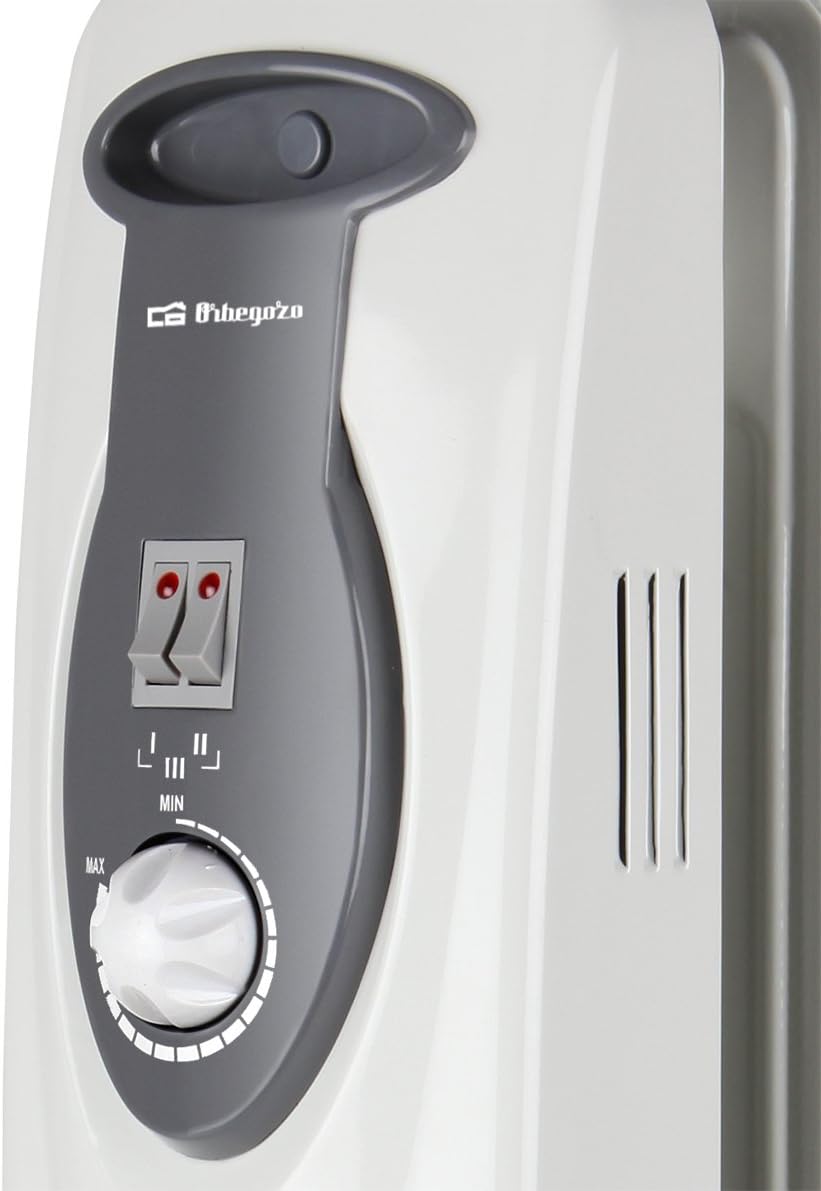

Figure 2: Detailed view of the control panel, featuring the adjustable thermostat dial (MIN to MAX) and two power switches for heat settings. The Orbegozo logo is visible above the controls.

Figure 3: Close-up of the base of the radiator, showing one of the swivel wheels and the integrated cable storage area where the power cord can be neatly wrapped.

Setup

1. Wheel Assembly

1. Carefully invert the radiator to access the underside.
2. Locate the mounting points for the wheels at the base of the radiator.
3. Attach each swivel wheel securely to its designated mounting point. Ensure they are firmly in place before uprighting the unit.
4. Return the radiator to its upright position.

2. Placement

• Place the radiator on a firm, level surface.
• Ensure there is at least 1 meter (3 feet) of clear space around the radiator from walls, furniture, and other objects to allow for proper heat circulation and prevent fire hazards.
• Do not place the radiator directly below a power outlet.
• Avoid placing the radiator in areas with high humidity or near water sources.

Operating Instructions

1. Connecting to Power

• Ensure the radiator is in the OFF position (thermostat set to MIN, power switches off).
• Unwind the power cord from the cable storage and plug it into a suitable 230V AC wall outlet.
• The power indicator light will illuminate when the unit is connected to power and turned on.

2. Adjusting Heat Settings

• The Orbegozo RA 1000 D features two power switches, allowing for flexible heat output.
• Press one switch for a lower heat setting.
• Press both switches for the maximum 1000W heat output.
• The power indicator light will confirm the unit is operating.

3. Setting the Thermostat

• Turn the thermostat dial clockwise towards MAX for higher temperatures, or counter-clockwise towards MIN for lower temperatures.
• Once the desired room temperature is reached, slowly turn the thermostat dial counter-clockwise until the power indicator light turns off. The radiator will now maintain this temperature, cycling on and off as needed.

4. Turning Off the Radiator

• Turn the thermostat dial to the MIN position.
• Switch off both power switches.
• Unplug the radiator from the wall outlet.

Maintenance

Cleaning

• Always unplug the radiator and allow it to cool completely before cleaning.
• Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Ensure no water enters the internal components.
• Do not immerse the radiator in water or any other liquid.

Storage

• When not in use, store the radiator in a cool, dry place.
• Wrap the power cord neatly around the integrated cable storage area to prevent damage.
• If possible, store the radiator in its original packaging to protect it from dust and damage.

Troubleshooting

Specifications

Warranty and Support

Orbegozo products are manufactured to high-quality standards. For information regarding warranty coverage, technical support, or service, please refer to the warranty card included with your purchase or visit the official Orbegozo website.
