DOMINO Short-Stroke Enduro Throttle Grip Set (Model 872638) Instruction Manual

1. Introduction

This manual provides essential information for the proper installation, operation, and maintenance of your DOMINO Short-Stroke Enduro Throttle Grip Set, Model 872638. Please read this manual thoroughly before installation and retain it for future reference. This product is designed for universal application on Enduro motorcycles, offering a 2.3-degree short-stroke action with a 46mm cable pull.

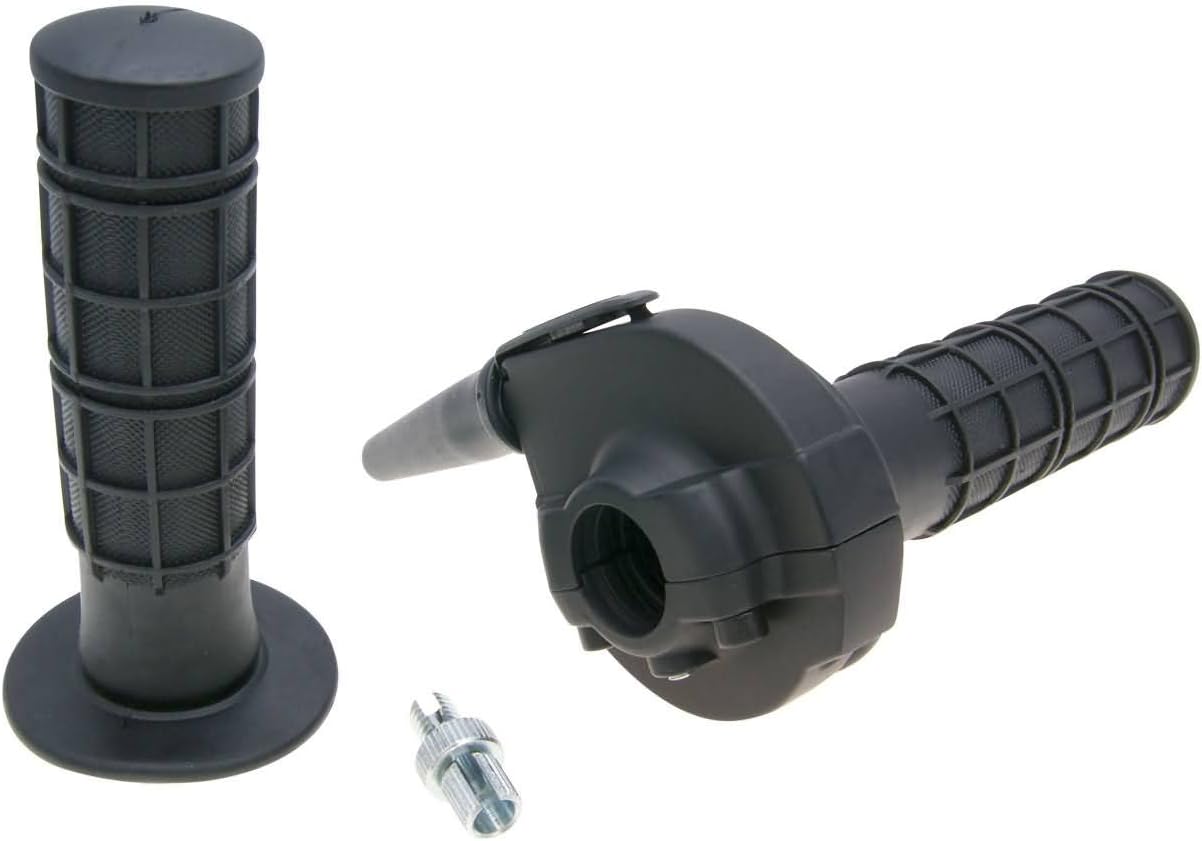

Figure 1: The complete DOMINO Short-Stroke Enduro Throttle Grip Set. This image displays the main throttle housing with the integrated grip, a separate matching grip for the left handlebar, and a small metal cable adjuster component. All parts are black, with the grips featuring a textured surface for improved handling.

2. Safety Information

Always prioritize safety during installation and operation. Failure to follow these instructions may result in injury or damage to the product or vehicle.

• Ensure the vehicle's engine is off and cool before beginning any installation.
• Wear appropriate personal protective equipment (PPE), such as gloves and eye protection.
• If you are unsure about any step, consult a qualified motorcycle mechanic.
• Verify proper throttle function and cable routing after installation and before riding.
• Do not modify the throttle grip set components.

3. Package Contents

Verify that all components are present and undamaged upon opening the package:

• 1x DOMINO Short-Stroke Throttle Housing with Integrated Grip (Right Side)
• 1x Matching Handlebar Grip (Left Side)
• 1x Cable Adjuster (Metal)

4. Setup and Installation

4.1. Tools Required

• Screwdriver set (Phillips and Flathead)
• Hex key set (Allen wrenches)
• Wrenches (appropriate sizes for cable adjusters and handlebar clamps)
• Grip glue (optional, for secure grip attachment)
• Clean cloth
• Lubricant (cable lubricant)

4.2. Installation Steps

Follow these steps carefully for proper installation:

1. Preparation: Park the motorcycle on a stable surface. Turn off the engine and ensure the ignition is off.
2. Remove Old Grips: Carefully remove the existing throttle grip and housing from the right handlebar. Remove the left handlebar grip. Disconnect the throttle cable(s) from the carburetor/throttle body and the old throttle housing.
3. Clean Handlebar: Thoroughly clean the handlebar surface where the new grips and throttle housing will be installed. Remove any old glue or residue.
4. Install New Throttle Housing: Slide the DOMINO throttle housing onto the right handlebar. Position it correctly and secure it with its mounting screws/clamps, ensuring it does not interfere with other controls (e.g., brake lever). Do not overtighten.
5. Connect Throttle Cable: Route the throttle cable(s) through the new throttle housing. Connect the cable end(s) to the throttle cam inside the housing. Ensure the cable moves freely without binding.
6. Install Left Grip: Slide the matching grip onto the left handlebar. If using grip glue, apply a thin, even layer to the handlebar before sliding the grip on. Allow adequate drying time if glue is used.
7. Adjust Cable Tension: Use the provided cable adjuster (and any adjusters on the cable itself) to set the correct throttle cable tension. There should be a small amount of free play (typically 2-3mm) at the throttle grip before the cable begins to pull.
8. Final Check: Rotate the throttle grip from fully closed to fully open several times. Ensure it returns smoothly and completely to the closed position without sticking. Check that the throttle does not bind when turning the handlebars from lock to lock. Start the engine and verify that the idle speed is stable and the throttle operates correctly.

5. Operating Instructions

The DOMINO Short-Stroke Enduro Throttle Grip Set provides a quicker throttle response due to its reduced rotation angle. Operate the throttle by rotating the right grip towards you to increase engine RPM and away from you to decrease engine RPM. Always operate the throttle smoothly and deliberately, especially when accustomed to a standard throttle setup.

6. Maintenance

Regular maintenance ensures optimal performance and longevity of your throttle grip set.

• Cable Lubrication: Periodically lubricate the throttle cable(s) to ensure smooth operation and prevent corrosion.
• Grip Inspection: Inspect the grips for wear, tears, or looseness. Replace worn grips to maintain proper control.
• Housing Inspection: Check the throttle housing for any cracks, damage, or loose fasteners. Ensure all components are securely attached.
• Cable Adjustment: Regularly check and adjust throttle cable free play. Excessive free play can lead to delayed response, while too little can cause the throttle to stick or the engine to rev unexpectedly.
• Cleaning: Keep the throttle housing and grips clean from dirt and debris. Use a mild cleaner and a soft cloth.

7. Troubleshooting

Refer to the table below for common issues and their potential solutions.

8. Specifications

Key specifications for the DOMINO Short-Stroke Enduro Throttle Grip Set (Model 872638):

9. Warranty and Support

For warranty information, technical support, or replacement parts, please refer to the official DOMINO manufacturer's website or contact your authorized DOMINO dealer. Keep your proof of purchase for warranty claims.
