Lionel ZW-L Transformer Instruction Manual

Introduction

The Lionel ZW-L Transformer is a robust power supply designed for operating Lionel model railroad layouts. This unit provides variable AC voltage for controlling train speed and fixed voltage outputs for accessories. It incorporates safety features to protect your layout from electrical shorts and overloads, ensuring reliable and safe operation.

Safety Information

Please read and understand all safety instructions before operating the ZW-L Transformer. Failure to do so may result in electric shock, fire, or damage to the product or your model railroad layout.

• Always disconnect the transformer from the main power outlet before making any electrical connections or performing maintenance.
• Ensure the transformer is placed on a stable, level, and non-flammable surface, away from moisture and excessive heat.
• Do not operate the transformer if the casing is damaged or if any wires are frayed or exposed.
• Use only the specified voltage and current ratings for your model railroad components.
• Keep the transformer out of reach of small children.
• The ZW-L Transformer is designed for indoor use only.

Package Contents

Verify that all items are present upon unboxing:

• 1 x Lionel ZW-L Transformer

Setup

Follow these steps to set up your Lionel ZW-L Transformer:

1. Unboxing and Placement: Carefully remove the transformer from its packaging. Place the unit on a flat, stable, and dry surface, ensuring adequate ventilation around the transformer to prevent overheating.
2. Connecting to Track: Identify the track terminals on the transformer. Connect the track wires from your model railroad layout to the appropriate terminals. Refer to your track system's instructions for specific wiring configurations.
3. Connecting Accessories: The ZW-L Transformer provides dedicated accessory terminals. Connect your layout accessories (e.g., lights, switches, operating accessories) to these terminals. Ensure correct polarity if required by the accessory.
4. Power Connection: Once all track and accessory connections are secure, plug the transformer's power cord into a standard wall outlet.

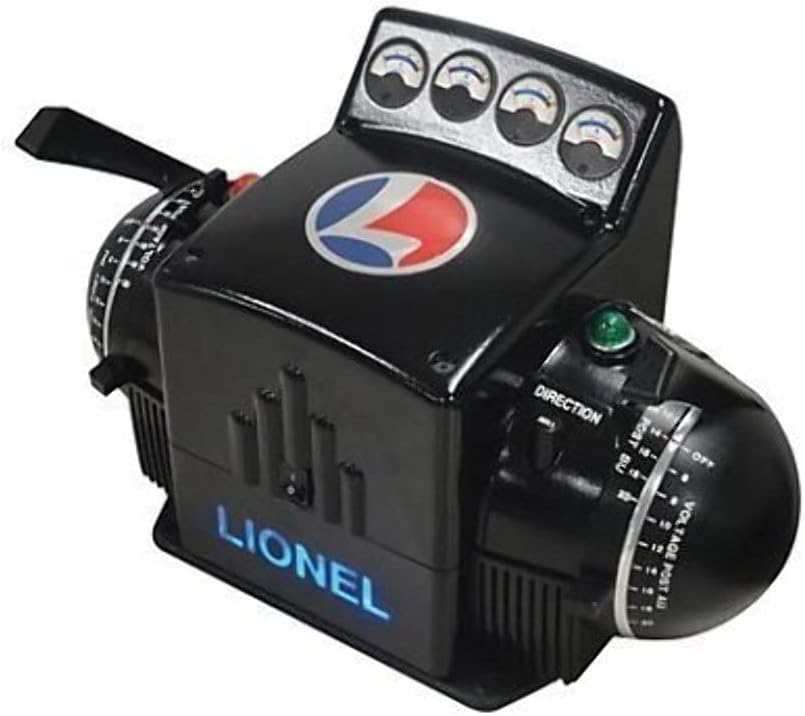

This image shows the Lionel ZW-L Transformer, a robust power supply for model train layouts. It features multiple control dials and output terminals for track and accessories, designed for precise control of your model railway.

Operating Instructions

The ZW-L Transformer offers intuitive controls for managing your model railroad:

• Power On/Off: Locate the main power switch and turn the unit on. Indicators will illuminate to confirm power is supplied.
• Variable Speed Control: Use the primary control levers to adjust the voltage output to the track. Moving the lever increases or decreases the voltage, thereby controlling the train's speed. The ZW-L provides a 0-18 Volt output range.
• Direction Control: Press the direction button to change the direction of your locomotive.
• Whistle/Bell Functions: Dedicated buttons are provided for activating the whistle and bell sounds on compatible locomotives.
• Accessory Operation: Accessories connected to the fixed voltage terminals will operate continuously when the transformer is powered on.

Maintenance

To ensure the longevity and optimal performance of your ZW-L Transformer, follow these maintenance guidelines:

• Cleaning: Periodically wipe the exterior of the transformer with a soft, dry cloth. Do not use liquid cleaners or solvents.
• Inspection: Regularly inspect all wiring for signs of wear, fraying, or damage. Replace any damaged wires immediately.
• Storage: When not in use, store the transformer in a dry, dust-free environment.
• Ventilation: Ensure that the ventilation slots on the transformer are not obstructed during operation.

Troubleshooting

If you encounter issues with your ZW-L Transformer, consider the following common solutions:

• No Power: Check if the transformer is securely plugged into a working wall outlet. Verify that the main power switch is in the 'ON' position.
• Train Not Moving: Ensure all track connections are secure and there are no short circuits on the track. The ZW-L has built-in circuit protection that may trip if a short is detected. Reset the circuit breaker if it has tripped.
• Accessories Not Working: Confirm that accessories are correctly wired to the accessory terminals and that their power requirements match the transformer's output.
• Overheating: If the transformer feels excessively hot, disconnect it from power immediately. Check for proper ventilation and ensure no components are drawing excessive current.

Specifications

Warranty Information

The Lionel ZW-L Transformer is covered by a manufacturer's warranty. Please refer to the warranty card included with your product or visit the official Lionel website for detailed information regarding warranty terms, conditions, and registration procedures.

Support

For further assistance, technical support, or to explore other Lionel products, please visit the official Lionel store or contact their customer service department:

• Lionel Store: Visit the Lionel Store on Amazon
• Manufacturer Website: Refer to the official Lionel website for comprehensive support resources.
