Product Overview

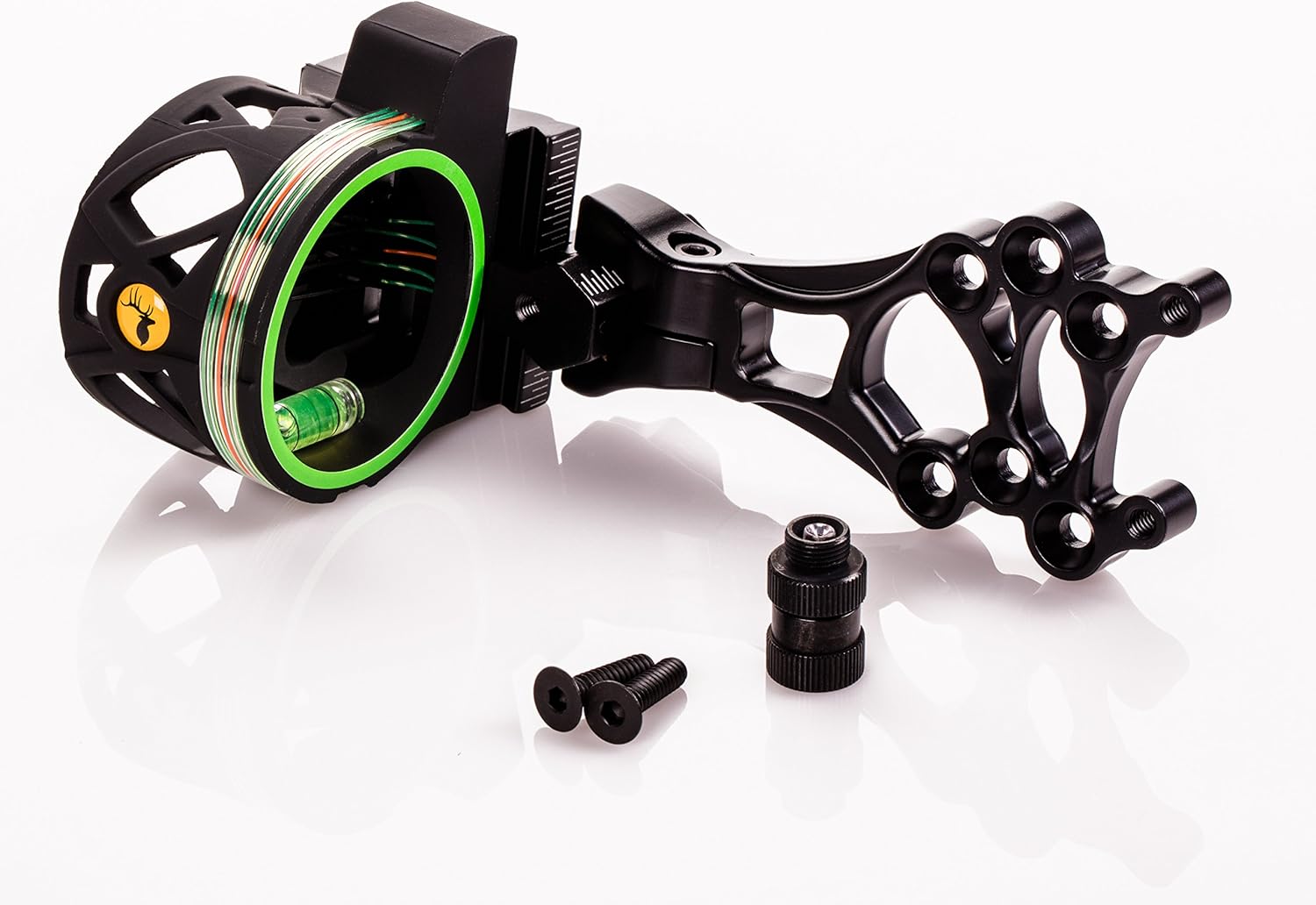

The Trophy Ridge Volt 5-Pin sight offers a balance of performance and features. It incorporates a Ballistic Co-Polymer sight hood for protection and extended fiber length for enhanced pin brightness. Laser-etched markings facilitate precise adjustments. This sight is designed to provide reliable performance in the field.
Key Features
- Enhanced Visibility: Features five ultra-bright .019" medium horizontal fiber optic pins for clear sight picture.
- Universal Fit: Designed with offset mounting holes for customizable installation on various bows.
- Increased Stability: Includes a precision-installed bubble level to assist in proper shot alignment.
- Quicker Acquisition: A green hood accent aids in faster sight acquisition.
- Ambidextrous Design: Reversible mount allows for use with both left- and right-hand bows.
Setup
Proper setup of your Trophy Ridge Volt sight is crucial for optimal performance. Ensure your bow is securely held in a bow vise or similar stable fixture before beginning installation.
Installation
- Identify the appropriate mounting holes on your bow's riser for the sight. The Volt sight features offset mounting holes for versatility.
- Attach the sight bracket to the bow riser using the provided screws. Ensure the screws are tightened securely, but do not overtighten.
- For ambidextrous use, the mount can be reversed to accommodate left- or right-hand bows. Adjust as necessary for your shooting preference.
Figure 1: Windage and elevation adjustment points on the sight. Laser-etched markings provide clear indicators for precise adjustments.
Operating
The Volt sight is designed for intuitive use, allowing for quick target acquisition and precise aiming.
Sight Adjustment
- Windage Adjustment: Use the horizontal adjustment knob to move the sight housing left or right. Adjust until your arrows consistently hit the center of the target horizontally.
- Elevation Adjustment: Use the vertical adjustment knob to move the sight housing up or down. Adjust until your arrows consistently hit the center of the target vertically.
- Pin Adjustment: Each of the five fiber optic pins can be individually adjusted for different distances. Loosen the small set screw next to the desired pin, move the pin to the correct elevation for a specific distance, and then re-tighten the set screw.
- Bubble Level: Utilize the integrated bubble level to ensure your bow is held perfectly vertical during aiming, which helps eliminate torque and improves accuracy.
Low Light Operation
The Volt sight features ultra-bright fiber optic pins and a rheostat light for visibility in low-light conditions.
Figure 2: Ultra-bright fiber optic pins and the rheostat light for maintaining visibility in low and changing light conditions. The green accent ring enhances sight acquisition.
- To activate the rheostat light, twist the knob located on the side of the sight. Adjust the brightness as needed for ambient light conditions.
- Ensure the plastic disc insulating the batteries is removed before first use of the light.
Maintenance
Regular maintenance will prolong the life and performance of your Trophy Ridge Volt sight.
- Cleaning: Wipe down the sight with a soft, dry cloth after each use to remove dirt and debris. Avoid using harsh chemicals or abrasive materials.
- Fiber Optic Care: Keep the fiber optic pins clean and free from obstructions to ensure maximum brightness.
- Screw Check: Periodically check all mounting and adjustment screws to ensure they are snug. Do not overtighten.
- Battery Replacement: If the rheostat light dims or stops working, replace the batteries. Refer to the battery compartment for correct orientation and type.
Troubleshooting
If you encounter issues with your Volt sight, consider the following common solutions:
- Pins Not Bright Enough:
- Ensure fiber optics are clean and exposed to sufficient ambient light.
- Check the rheostat light battery and ensure the insulating plastic disc has been removed.
- Sight Pins Not Holding Position:
- Verify that all pin adjustment set screws are tightened securely.
- Inconsistent Shot Grouping:
- Confirm the sight is securely mounted to the bow riser.
- Ensure the bubble level is used consistently to maintain proper bow cant.
- Check for any loose components on the sight or bow.
Specifications
| Attribute | Detail |
|---|---|
| Brand | Trophy Ridge |
| Model Name | Volt |
| Model Number | AS109 |
| Color | Multi |
| Style | Compact |
| Sport | Archery |
| Item Weight | 0.52 Pounds |
| Material | Aluminum |
| Objective Lens Diameter | 1.88 Inches |
| Magnification Minimum | 1 x |
| Compatible Devices | Compound Bow, Recurve Bow |
| Mounting Type | Offset Mount |
| Reticle Type | 5-pin |
| Hand Orientation | Ambidextrous |
| Country of Origin | China |
Warranty & Support
This product is covered by a manufacturer's warranty. For specific details regarding warranty terms, conditions, and how to claim support, please refer to the documentation included with your purchase or contact Trophy Ridge customer service directly.
For additional support or inquiries, please visit the official Trophy Ridge website or contact their customer service department.
