Introduction
This manual provides essential information for the setup, operation, and maintenance of your Roco 43208 DB Class 80 014 steam locomotive model. Please read these instructions carefully before operating your model to ensure safe and optimal performance. Retain this manual for future reference.
Product Overview
The Roco 43208 is a detailed model of the DB Class 80 014 steam locomotive, designed for DC (Direct Current) operation at a scale of 1:87 (HO gauge). This model accurately represents the locomotive from Epoche IIIb, featuring an electric motor drive and suitable for indoor use.
Image 1: Front-side view of the Roco 43208 DB Class 80 014 steam locomotive model. The locomotive is black with red wheels and chassis details, positioned on model train tracks. The number "80 014" is visible on the front.

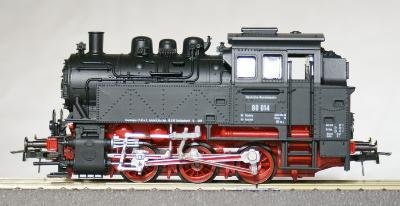

Image 2: Side view of the Roco 43208 DB Class 80 014 steam locomotive model. This perspective highlights the detailed black body, red driving rods, and wheels, along with the cab and boiler structure. The locomotive is resting on model train tracks.
Setup
- Unpacking: Carefully remove the locomotive from its packaging. Inspect for any visible damage. Keep the original packaging for storage or transport.
- Track Preparation: Ensure your HO gauge model train tracks are clean and properly assembled on a stable surface. Dirt or debris can hinder electrical contact and smooth operation.
- Power Connection: Connect your DC power supply to the tracks according to the power supply's instructions. Ensure the voltage is appropriate for HO scale DC models.
- Placing the Locomotive: Gently place the locomotive on the tracks, ensuring all wheels are correctly seated on the rails. Verify that the electrical contacts are made.
Operating Instructions
This model operates on a DC (Direct Current) system. Control is typically managed via a DC power pack, which allows for speed and direction adjustments.
- Starting the Locomotive: Gradually increase the voltage from your DC power pack. The locomotive should begin to move smoothly. Avoid sudden high voltage changes.
- Direction Control: Use the direction switch on your DC power pack to change the locomotive's travel direction. It is recommended to bring the locomotive to a complete stop before reversing direction.
- Speed Control: Adjust the throttle on your power pack to control the speed. Operate the locomotive at realistic speeds to enhance longevity and realism.
- Stopping the Locomotive: Gradually decrease the voltage until the locomotive comes to a complete stop.

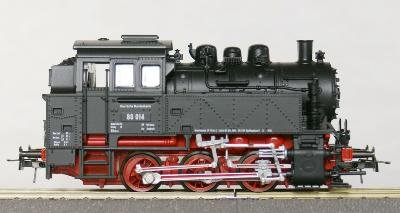

Image 3: Full side view of the Roco 43208 DB Class 80 014 steam locomotive model. This image provides a comprehensive view of the locomotive's length and intricate details, including the tender and various mechanical components, all resting on tracks.
Maintenance
Regular maintenance ensures the smooth operation and extends the lifespan of your model locomotive.
- Cleaning Wheels and Pickups: Periodically clean the locomotive's wheels and electrical pickups with a soft, lint-free cloth and a small amount of model train track cleaner. This prevents poor electrical contact and erratic running.
- Lubrication: Refer to the manufacturer's specific lubrication guidelines if provided with the model. Generally, a small amount of specialized model train lubricant can be applied to moving parts like gears and axles, but avoid over-lubrication.
- Track Cleaning: Keep your tracks clean. Dirty tracks are a common cause of poor performance.
- Storage: When not in use, store the locomotive in its original packaging or a protective case, away from dust, direct sunlight, and extreme temperatures.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Locomotive does not move. | No power to tracks; dirty wheels/track; locomotive not seated correctly. | Check power supply connection; clean tracks and wheels; re-seat locomotive on tracks. |
| Erratic or jerky movement. | Dirty wheels/track; poor electrical contact; track misalignment. | Clean wheels and tracks thoroughly; ensure track sections are properly joined. |
| Locomotive derails frequently. | Track misalignment; obstacles on track; damaged wheels. | Inspect track for proper alignment; remove any debris; check wheels for damage. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | 43208 |
| Scale | 1:87 |
| Engine Type | Electric Motor Drive |
| Track Width/Gauge | HO |
| Radio Control Suitability | Indoor |
| Colour | Black |
| Package Dimensions | 19 x 9 x 4 cm |
| Item Weight | 500 g |
| Manufacturer Recommended Age | 14 years and up |
| Manufacturer | Roco |
| First Available | 30 September 2014 |
Warranty and Support
Specific warranty information for the Roco 43208 model is not provided in this manual. Please refer to the original product packaging or the official Roco website for detailed warranty terms and conditions.
For technical support, spare parts, or further assistance, please contact Roco customer service through their official channels. Always provide your model number (43208) when seeking support.
