Introduction
Thank you for choosing a Hitachi refrigerator. This manual provides essential information for the safe and efficient use of your new 565 L 4 Star Frost Free Double Door Refrigerator, model R-VG610PND3. Please read these instructions carefully before installation and use, and keep them for future reference.
Safety Information
Always follow basic safety precautions when using this appliance to reduce the risk of fire, electric shock, or injury.
- Ensure the refrigerator is properly grounded.
- Do not damage the refrigerant circuit.
- Keep ventilation openings clear of obstruction.
- Do not use electrical appliances inside the food storage compartments unless they are of the type recommended by the manufacturer.
- Unplug the appliance before cleaning or performing maintenance.
- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
Setup
Unpacking
Carefully remove all packaging materials. Inspect the refrigerator for any damage. Retain packaging for transport if needed.
Location
- Place the refrigerator on a firm, level floor.
- Avoid direct sunlight and heat sources.
- Allow adequate space around the appliance for proper ventilation (at least 10 cm at the back and sides, 30 cm at the top).
Electrical Connection
Connect the refrigerator to a dedicated, grounded power outlet. Do not use extension cords or adapters.

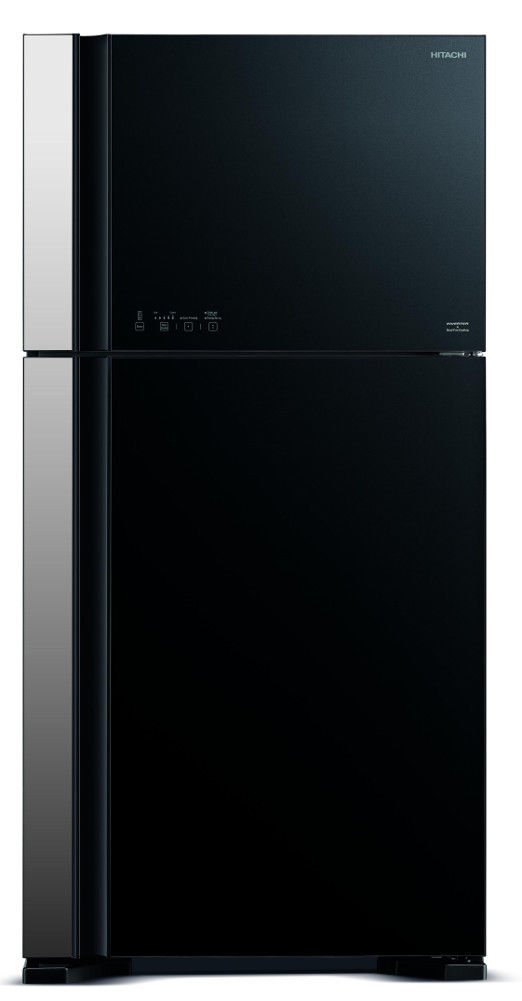

Image: Front view of the Hitachi 565 L Double Door Refrigerator (R-VG610PND3). This image illustrates the overall design and dual door configuration of the appliance.
Operating Instructions
Initial Start-up
After connecting to power, allow the refrigerator to run for 2-3 hours empty before placing food inside. This allows the internal temperature to stabilize.
Temperature Control
The refrigerator features adjustable temperature settings. Refer to the control panel inside the fresh food compartment to set your desired temperature. For optimal food preservation, a setting of 3-4°C for the refrigerator and -18°C for the freezer is generally recommended.
Food Storage Guidelines
- Store raw meat, poultry, and fish in sealed containers on the lowest shelf to prevent dripping onto other foods.
- Keep fruits and vegetables in the crisper drawers.
- Ensure all food is covered to prevent drying out and odor transfer.
Maintenance
Cleaning the Interior
Clean the interior regularly with a mild detergent and warm water. Wipe dry thoroughly. Do not use abrasive cleaners or solvents.
Cleaning the Exterior
Wipe the exterior surfaces with a soft, damp cloth. For glass surfaces, use a glass cleaner. Avoid spraying water directly onto the control panel.
Defrosting
This refrigerator features a Frost Free defrost system, eliminating the need for manual defrosting of the freezer compartment.
Door Gasket Maintenance
Periodically check and clean the door gaskets to ensure a tight seal. A damaged or dirty gasket can lead to inefficient operation.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator not cooling | Power outage; Plug not inserted; Temperature setting too high; Door left open. | Check power supply; Ensure plug is secure; Adjust temperature setting; Close door properly. |
| Excessive noise | Refrigerator not level; Objects touching the back wall; Compressor noise (normal). | Adjust leveling feet; Move objects away; Normal operation sound. |
| Water on floor | Drain tube blocked; Refrigerator not level. | Clear drain tube; Level the refrigerator. |
If the problem persists after attempting these solutions, please contact customer support.
Specifications
- Brand: Hitachi
- Model: R-VG610PND3
- Capacity: 565 Litres
- Energy Efficiency: 4 Star Rating
- Defrost System: Frost Free
- Configuration: Double Door
- Installation Type: Freestanding
- Shelf Type: Toughened Glass
- Door Material: Glass
- Dimensions (LxWxH): 74 x 85.5 x 176 Centimeters
- Special Feature: Automatic Defrost
Warranty & Support
Warranty Information
Your Hitachi R-VG610PND3 refrigerator comes with a comprehensive warranty:
- Product Warranty: 1 year from the date of purchase.
- Compressor Warranty: 10 years from the date of purchase.
Please retain your purchase receipt for warranty claims. The warranty covers manufacturing defects under normal use conditions.
Customer Support
For technical assistance, service requests, or warranty inquiries, please contact Hitachi customer support. Refer to the contact information provided in your warranty card or visit the official Hitachi website for your region.
