Megahome MH943SBS Heavy Duty Distiller Instruction Manual

1. Introduction and Overview

The Megahome MH943SBS Heavy Duty Distiller is designed to produce pure, clean water for various household needs. This countertop water distiller features a 316-grade stainless steel boil chamber and dome, ensuring durability and high-quality distillation. It operates by boiling water to create steam, which is then condensed back into liquid, leaving impurities behind. This manual provides essential information for the safe and efficient operation and maintenance of your distiller.

Figure 1: Megahome MH943SBS Distiller with its glass collection carafe.

2. Product Features

• 316 Stainless Steel Construction: The boil chamber and dome are constructed from high-grade 316 stainless steel for enhanced durability and purity.
• Pure Water Production: Designed to consistently produce cleaner water by distilling at an optimal temperature, ensuring high purity.
• UL Listed: Certified by Underwriters Laboratory (UL) for compliance with important safety standards in the United States.
• Top Quality Parts: Manufactured with high-quality components, each unit undergoes Quality Control (QC) testing before shipment.
• Compact Countertop Design: Freestanding unit suitable for kitchen countertops.

3. Components

Familiarize yourself with the main components of your Megahome Distiller:

1. Distiller Unit: The main body containing the boil chamber and heating element.
2. Lid/Condenser Unit: Sits atop the distiller unit, housing the fan and condensing coils.
3. Glass Collection Carafe: A 1-gallon glass pitcher with a plastic top for collecting distilled water.
4. Spout: Attaches to the lid and holds the activated charcoal packets.
5. Power Cord: Connects the distiller to a power outlet.
6. Activated Charcoal Packets: Used for post-distillation filtration to improve taste and odor.
7. Cleaning Product: Powdered cleaner for descaling the boil chamber.

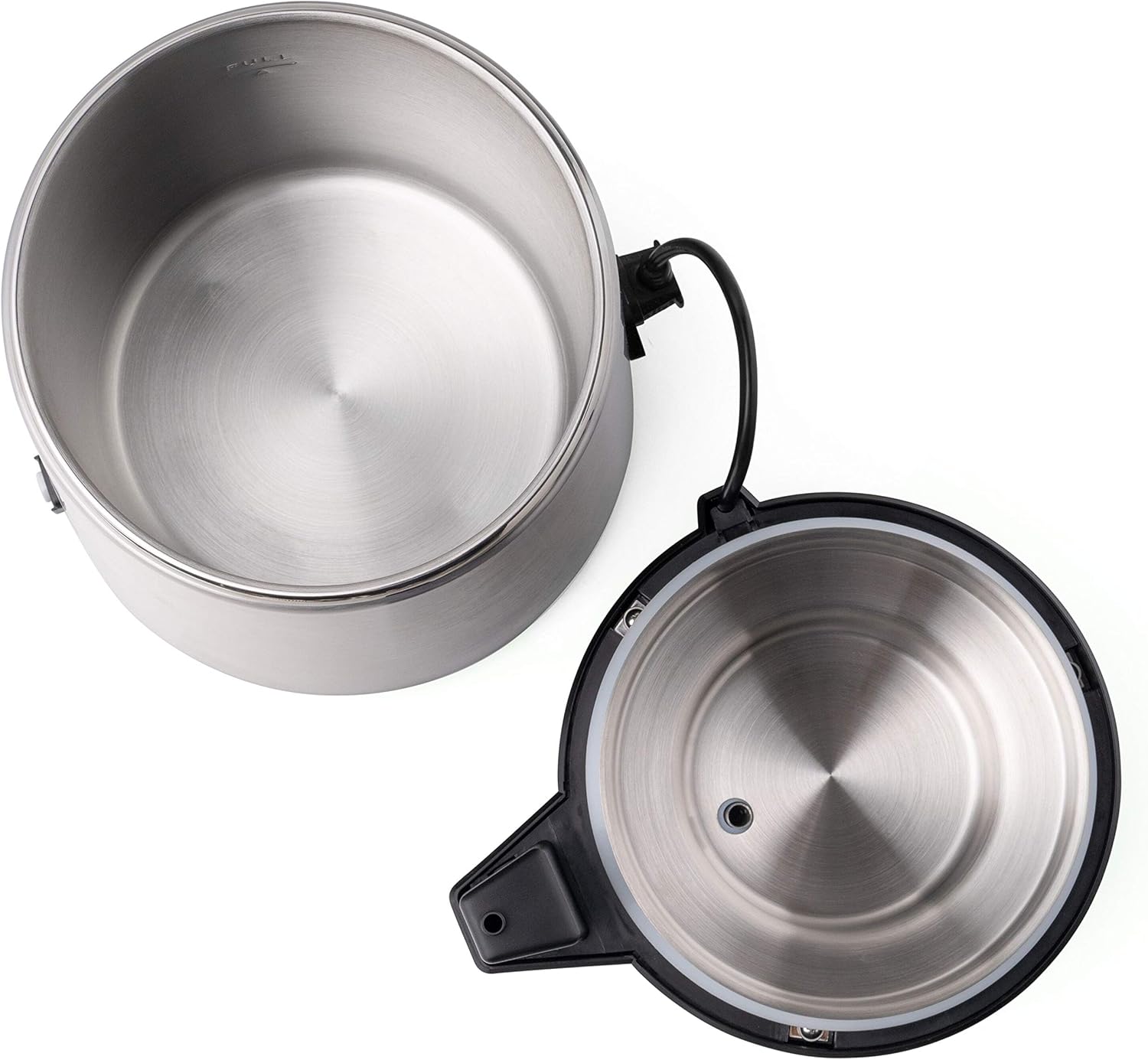

Figure 2: The distiller unit with the lid removed, revealing the stainless steel boil chamber.

Figure 3: Close-up of the spout and its internal components, where the activated charcoal filter is placed.

Figure 4: Illustrative diagram showing the water distillation process within the unit.

4. Setup Instructions

1. Unpack: Carefully remove all components from the packaging.
2. Place the Distiller: Position the distiller on a stable, flat surface, such as a kitchen countertop. Ensure it is near a power outlet.
3. Prepare the Spout: Insert an activated charcoal packet into the spout. The spout is designed to hold these packets for final filtration.
4. Fill the Boil Chamber: Remove the lid/condenser unit from the distiller. Fill the stainless steel boil chamber with tap water up to the indicated 'FULL' line. Do not overfill.
5. Replace the Lid: Carefully place the lid/condenser unit back onto the distiller unit. It may fit snugly, requiring a firm push to secure.
6. Connect the Power Cord: Plug the power cord into the designated port at the back of the distiller unit. The power cord is approximately 6 feet long, providing ample reach.
7. Position the Carafe: Place the glass collection carafe directly underneath the distiller's spout to collect the distilled water.

Note: An informational video titled "What you should know before you buy!" demonstrates the setup process, including removing the lid, filling the boil chamber, and attaching the spout. While this video is not from the seller, it provides a visual guide to these steps.

5. Operating Instructions

1. Power On: Plug the distiller's power cord into a standard 120V electrical outlet. Press the power button located on the front of the distiller. The fan will start, indicating operation. The fan noise is minimal and not bothersome.
2. Distillation Process: The distiller will begin heating the water, turning it into steam. The steam rises into the condenser unit, where it cools and condenses back into pure liquid water. This water then drips through the activated charcoal filter in the spout and into the collection carafe.
3. Distillation Time: A full 1-gallon batch of distilled water typically takes approximately 5 to 6 hours to complete.
4. Automatic Shut-off: The distiller is equipped with an automatic shut-off feature. Once all the water in the boil chamber has been distilled and the tank is empty, the unit will automatically power off.
5. Cool Down: After distillation is complete, allow the unit to cool down before opening the lid or attempting to clean. Steam can cause burns if the lid is opened immediately after operation.
6. Optional Remineralization: Distilled water is stripped of all minerals. Some users choose to remineralize their water with trace minerals or Himalayan pink salt for taste and health benefits. This is an optional step performed after distillation.

6. Maintenance and Cleaning

Regular cleaning and maintenance are crucial for the longevity and optimal performance of your Megahome Distiller.

• Boil Chamber Cleaning: The inside of the boil chamber will accumulate mineral buildup from the tap water. Use the provided cleaning product (or a suitable alternative like citric acid) to clean the chamber. Fill the chamber with water, add the cleaning powder, and let it sit for approximately 12 hours (e.g., overnight). In the morning, dump the solution and rinse thoroughly. Do not use abrasive scrubbers or harsh chemicals on the stainless steel interior, as this can scratch it, as advised by the manufacturer.
• Activated Charcoal Packet Replacement: Activated charcoal packets should be changed regularly to ensure optimal water taste and odor. It is generally recommended to replace the packets after approximately 25 to 30 uses.
• Fan Cleaning: The fan located in the lid/condenser unit may accumulate dust or debris. Periodically clean the fan area to ensure proper airflow and cooling.

Figure 5: The distiller shown with the cleaning product and activated charcoal packets, essential for maintenance.

7. Troubleshooting

If you encounter issues with your Megahome Distiller, consider the following common solutions:

• Distiller Not Turning On: Ensure the power cord is securely plugged into both the distiller and a functioning electrical outlet. Check if the power button is pressed.
• Water Not Distilling: Verify that the boil chamber has enough water and that the lid is properly seated.
• Unusual Taste/Odor in Distilled Water: Replace the activated charcoal packet. Ensure the unit is cleaned regularly to prevent mineral buildup from affecting water quality.
• Excessive Noise: While the fan is generally quiet, ensure no obstructions are blocking the fan vents on the lid.

For persistent issues, refer to the warranty and support section.

8. Specifications

9. Warranty and Support

The Megahome MH943SBS Distiller comes with a 1-Year Warranty that covers both parts and labor. In the event of an issue with your distiller, Nutriteam Inc. (the seller) offers customer service for support and parts.

For warranty claims or technical assistance, please contact the seller directly through your purchase platform or refer to the contact information provided with your product packaging.
