DEWALT DWE74911 Rolling Table Saw Stand

Product Overview

The DEWALT DWE74911 Rolling Table Saw Stand is engineered for efficient setup and breakdown, offering exceptional stability during use. Its lightweight design ensures enhanced mobility and portability, making it ideal for various job sites. Constructed from durable steel, this stand is built to withstand rigorous use and is designed for easy loading and unloading into and out of vehicles.

This stand is compatible with several DEWALT table saw models, including DWE7490X, DWE7491RS, DWE7499GD, DWE7480, and DW745.

Key Features:

• Durable Steel Construction: Ensures longevity and resilience in demanding work environments.
• Easy Setup and Breakdown: Designed for quick and efficient deployment and storage, providing excellent stability when in use.
• Enhanced Mobility and Portability: Lightweight design and integrated wheels facilitate easy transport and maneuverability.
• Vehicle Loading and Unloading: Optimized for convenient placement and removal from transport vehicles.

Important Safety Instructions

Always adhere to these safety guidelines to prevent personal injury and damage to the product. Failure to follow these instructions may result in serious injury or property damage.

• Read the Manual: Before assembly or operation, thoroughly read and understand all instructions in this manual and the table saw's manual.
• Wear Personal Protective Equipment (PPE): Always wear appropriate safety glasses, hearing protection, and other necessary PPE.
• Stable Surface: Ensure the stand is placed on a firm, level, and stable surface before operating any power tools on it.
• Secure the Saw: Always ensure the table saw is securely mounted to the stand according to the assembly instructions before use.
• Keep Area Clear: Maintain a clear work area free from obstructions and distractions.
• Inspect Before Use: Before each use, inspect the stand for any damage, loose fasteners, or worn parts. Do not use if damaged.
• Proper Lifting: When moving the stand with or without the saw, use proper lifting techniques to avoid injury. Utilize the wheels for transport whenever possible.
• Children and Bystanders: Keep children and bystanders away from the work area.

Assembly Guide

The DEWALT DWE74911 Rolling Table Saw Stand comes partially pre-assembled. Follow these steps carefully for complete assembly and secure attachment of your table saw.

1. Unpacking and Component Identification

Carefully remove all components from the packaging. Verify that all parts listed in the packing list are present and undamaged. Refer to the included hardware bags for specific fasteners.

Figure 1: DEWALT DWE74911 Rolling Table Saw Stand in its folded, transport position. This view shows the compact form factor for storage and mobility.

2. Initial Stand Assembly

1. Place the main frame of the stand on a clean, flat surface.
2. Attach the wheels to the designated axles using the provided hardware. Ensure they are securely fastened but can rotate freely.
3. Connect any remaining frame components or support bars as indicated in the diagram, tightening all bolts and nuts firmly.

3. Attaching the Table Saw Mounting Brackets

1. Identify the front (F) and rear (R) mounting brackets. These are specific to the orientation of your table saw.
2. Securely attach these brackets to the top frame of the stand using the appropriate bolts. Do not overtighten at this stage, as minor adjustments may be needed.

Figure 2: DEWALT DWE74911 Rolling Table Saw Stand fully deployed. This image illustrates the wide, stable footprint of the stand when ready for operation.

4. Mounting the Table Saw to the Stand

For optimal stability and safety, it is recommended to lay your table saw flat on its cutting surface (with blade guard and fence removed if necessary) to attach the stand. Alternatively, you can carefully align the saw with the stand's mounting brackets.

1. Align the mounting holes on the base of your DEWALT table saw (e.g., DWE7490X, DWE7491RS, DWE7499GD, DWE7480, DW745) with the holes on the stand's mounting brackets.
2. Insert the appropriate bolts through the saw's base and into the stand's brackets. Use the washers and nuts provided, ensuring a snug fit.
3. Tighten all bolts securely. Double-check that the saw is firmly attached to the stand and there is no wobble.

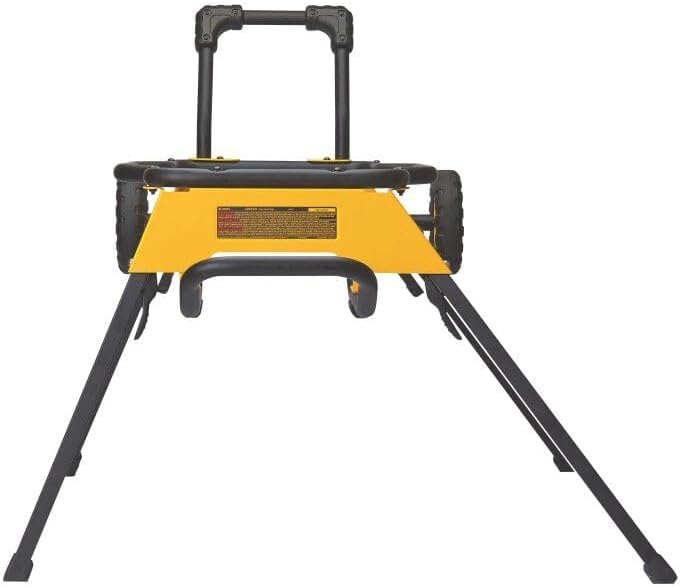

Figure 3: Rear view of the DEWALT DWE74911 Rolling Table Saw Stand in its deployed state. This angle highlights the robust leg structure designed for maximum stability during cutting operations.

Setup and Operation

Deploying the Stand for Use

1. With the table saw securely mounted and the stand in its folded, upright position (as shown in Figure 1), grasp the handle firmly.
2. Locate the quick-release levers on the stand's legs. Simultaneously depress these levers.
3. While holding the levers, carefully lower the stand until the legs fully extend and lock into place, creating a stable, wide base (as shown in Figure 2). Ensure all leg detents are securely engaged.
4. Verify the stand is stable and level before placing any material on the saw or beginning operation.

Folding the Stand for Storage or Transport

1. Ensure the table saw is turned off and unplugged. Clear any material from the saw table.
2. Grasp the handle of the stand.
3. Locate the quick-release levers on the legs. Simultaneously depress these levers.
4. Carefully lift the stand, allowing the legs to fold inward until the stand returns to its compact, upright position (as shown in Figure 1). Ensure the legs are fully retracted and locked.
5. The stand can now be easily rolled on its wheels or loaded into a vehicle for transport.

Maintenance

Regular maintenance will ensure the longevity and safe operation of your DEWALT DWE74911 Rolling Table Saw Stand.

• Cleaning: Wipe down the stand with a damp cloth to remove dust and debris. Avoid using harsh chemicals or abrasive cleaners.
• Lubrication: Periodically apply a light lubricant to moving parts, such as the quick-release levers and leg pivot points, to ensure smooth operation.
• Fastener Check: Regularly inspect all bolts, nuts, and fasteners for tightness. Tighten any loose fasteners to maintain structural integrity.
• Wheel Inspection: Check the wheels for wear or damage. Ensure they rotate freely and are not obstructed by debris.
• Storage: Store the stand in a dry, protected area when not in use. Folding the stand (as per instructions) will save space.

Troubleshooting

This section addresses common issues you might encounter with your rolling table saw stand.

Technical Specifications

Warranty and Customer Support

This DEWALT DWE74911 Rolling Table Saw Stand is covered by a 1-year limited warranty from the date of purchase. This warranty covers defects in material or workmanship. For full warranty terms and conditions, please refer to the warranty card included with your product or visit the official DEWALT website.

For technical assistance, parts, or warranty claims, please contact DEWALT Customer Service. Have your model number (DWE74911) and proof of purchase ready when contacting support.

Contact Information:

• Website: www.dewalt.com
• Phone: Refer to your regional DEWALT website for local contact numbers.
