NEMCO 55136 Easy Slicer Replacement Solid Bushing Instruction Manual

1. Introduction

This manual provides detailed instructions for the installation and maintenance of the NEMCO 55136 Replacement Solid Bushing. This component is designed specifically for use with the NEMCO Easy Slicer Model N55200AN. Please read these instructions carefully before proceeding with installation to ensure proper function and longevity of your equipment.

2. Product Overview

The NEMCO 55136 Solid Bushing is a critical replacement part for the Easy Slicer Model N55200AN. It is manufactured from durable plastic and is white in color. This bushing ensures smooth operation of the slicer's moving parts, contributing to efficient and consistent slicing of fruits and vegetables.

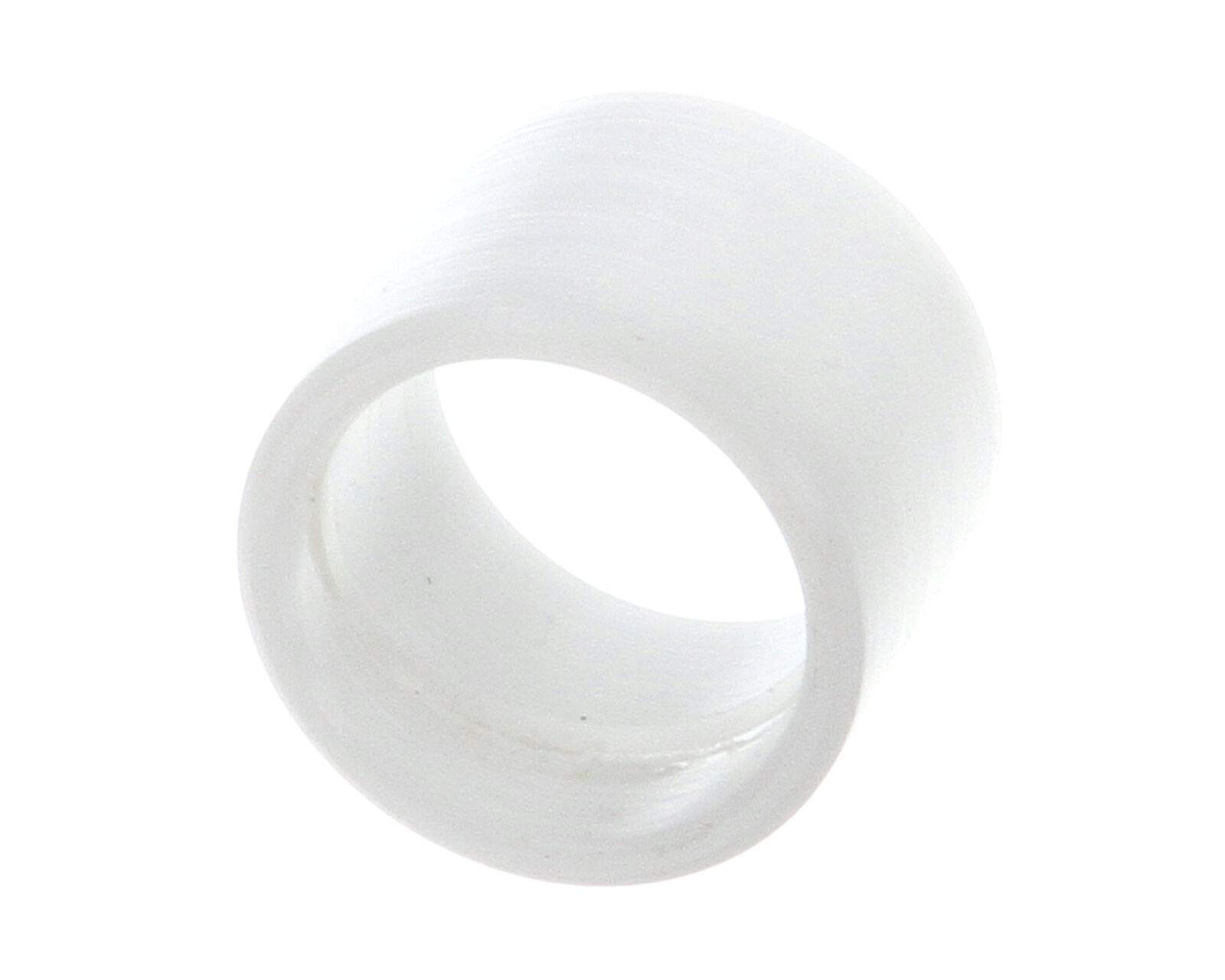

Figure 2.1: NEMCO 55136 Easy Slicer Replacement Solid Bushing. This image shows the white plastic bushing, which is a key component for the Easy Slicer's mechanism.

Key Features:

• Model Number: 55136
• Material: Durable Plastic
• Color: White
• Compatibility: Specifically designed for NEMCO Easy Slicer Model N55200AN
• Function: Replacement part to restore smooth operation of the slicer

3. Installation Instructions

Before beginning installation, ensure the NEMCO Easy Slicer is unplugged and completely disassembled according to its primary instruction manual. Refer to the Easy Slicer's manual for specific disassembly steps.

Required Tools:

• Appropriate wrenches or screwdrivers (as specified in the Easy Slicer manual)
• Clean cloth

Installation Steps:

1. Identify Worn Bushing: Locate the existing bushing within the Easy Slicer mechanism. It is typically found at pivot points or where moving parts connect.
2. Remove Old Bushing: Carefully remove the worn or damaged bushing. This may require gentle prying or unscrewing retaining components. Dispose of the old bushing responsibly.
3. Clean Area: Clean the area where the new bushing will be installed, ensuring it is free from debris, food particles, or old lubricant.
4. Insert New Bushing: Align the NEMCO 55136 Solid Bushing with the designated slot or opening. Gently press or tap it into place until it is seated securely. Ensure it is flush and does not impede movement.
5. Reassemble Slicer: Reassemble the NEMCO Easy Slicer according to its primary instruction manual, ensuring all components are correctly fitted and secured.
6. Test Functionality: Once reassembled, manually operate the slicer's moving parts to confirm smooth and unrestricted movement.

4. Operation and Function

The NEMCO 55136 Solid Bushing is an internal component that facilitates the smooth operation of the NEMCO Easy Slicer. Once correctly installed, it requires no direct user interaction during the slicer's operation. Its function is to reduce friction and wear between moving parts, ensuring the slicer performs efficiently and accurately.

For instructions on operating the NEMCO Easy Slicer itself, please refer to the original product manual for Model N55200AN.

5. Maintenance

Proper maintenance of the NEMCO 55136 Solid Bushing, as part of the overall Easy Slicer maintenance, will extend its lifespan and ensure optimal performance.

Cleaning:

• Regularly clean the area around the bushing during routine cleaning of the Easy Slicer.
• Use mild soap and water with a soft cloth. Avoid abrasive cleaners or harsh chemicals that could damage the plastic.
• Ensure the bushing and surrounding components are thoroughly dried after cleaning.

Inspection:

• Periodically inspect the bushing for signs of wear, cracking, or deformation.
• If the slicer's operation becomes less smooth or if there is increased play in moving parts, inspect the bushing for potential replacement.

6. Troubleshooting

If you experience issues after installing the NEMCO 55136 Solid Bushing, consider the following:

• Slicer Movement is Stiff or Restricted:
  • Ensure the bushing is correctly seated and not misaligned.
  • Check for any debris or foreign objects obstructing the movement around the bushing.
  • Verify that all other components of the Easy Slicer are reassembled correctly and not overtightened.
• Excessive Play or Looseness:
  • Confirm the bushing is fully inserted and secured.
  • Inspect the surrounding components for wear or damage that might affect the bushing's fit.

For issues unrelated to the bushing or for further assistance, please refer to the NEMCO Easy Slicer Model N55200AN's main troubleshooting guide or contact NEMCO customer support.

7. Specifications

8. Warranty and Support

This replacement part is designed for durability and performance. Specific warranty information for replacement parts may vary. Please refer to the original NEMCO Easy Slicer Model N55200AN product warranty documentation for details regarding replacement parts or contact NEMCO customer service directly.

Customer Support:

For technical assistance, parts inquiries, or warranty claims, please contact Nemco customer support. Contact information can typically be found on the official Nemco website or in the original product manual for the Easy Slicer.

Note: Always provide your product model number (N55200AN) and the replacement part number (55136) when contacting support.
