1. Introduction

The Schellenberg RolloDrive 45 allows for easy control of a roller shutter by simply pressing a button or using an automatic timer. This electric belt winder is suitable for plastic roller shutters up to 4 m² and is compatible with the Maxi roller shutter system, requiring a strap width of 23 mm. It directly replaces an existing mechanical belt winder. The RolloDrive 45 can be installed in all standard wall boxes with an opening width of at least 35 mm and a height of at least 103 mm. It features two mounting hole spacings: 135 mm and 165 mm. This electric belt winder is ideal for rental properties as it does not require opening the roller shutter box for installation. The integrated automatic timer allows the roller shutter to be raised or lowered automatically at desired times, with one up and one down movement programmable. If the roller shutter jams or encounters an obstacle, the electric belt winder stops automatically. The large buttons on the RolloDrive 45 facilitate ease of use and setting of end positions. Power is supplied via a power cable. Optionally, the roller shutter can be controlled based on sun position using a separately available solar sensor, protecting furniture and plants from excessive sunlight.

2. Key Features

• Easy Recessed Installation: Designed to fit many standard wall boxes, making it ideal for rental properties as it avoids opening the roller shutter box.
• Wide Compatibility: Supports 23 mm wide straps (Maxi system).
• Capacity: Manages plastic roller shutters up to 4 m² (based on 3.0 kg/m²) and aluminum/wood roller shutters up to 2.0 m² (based on 4.5 kg/m²).
• Automatic Timer: Integrated timer allows programming one automatic up and one automatic down movement daily.
• Obstacle Detection: Automatically stops if the roller shutter encounters an obstacle or jams.
• Optional Solar Sensor Control: Can be extended with a separately available solar sensor for sun-dependent control.
• User-Friendly Interface: Large buttons for easy operation and setting of end positions.

3. Technical Specifications

Image: Detailed dimensions of the RolloDrive 45 unit, showing measurements for length, width, height, and mounting hole spacing (135mm, 165mm).

Image: Diagram illustrating the maximum roller shutter area supported by the RolloDrive 45 for different materials: 4.0 m² for plastic and 2.0 m² for aluminum/wood, along with the maximum pull force of 12 kg.

4. Setup and Installation

4.1 Unpacking and Contents

Carefully unpack all components. Ensure the following items are present:

• Schellenberg RolloDrive 45 Electric Belt Winder
• Power cable
• Mounting screws and wall plugs
• Instruction manual

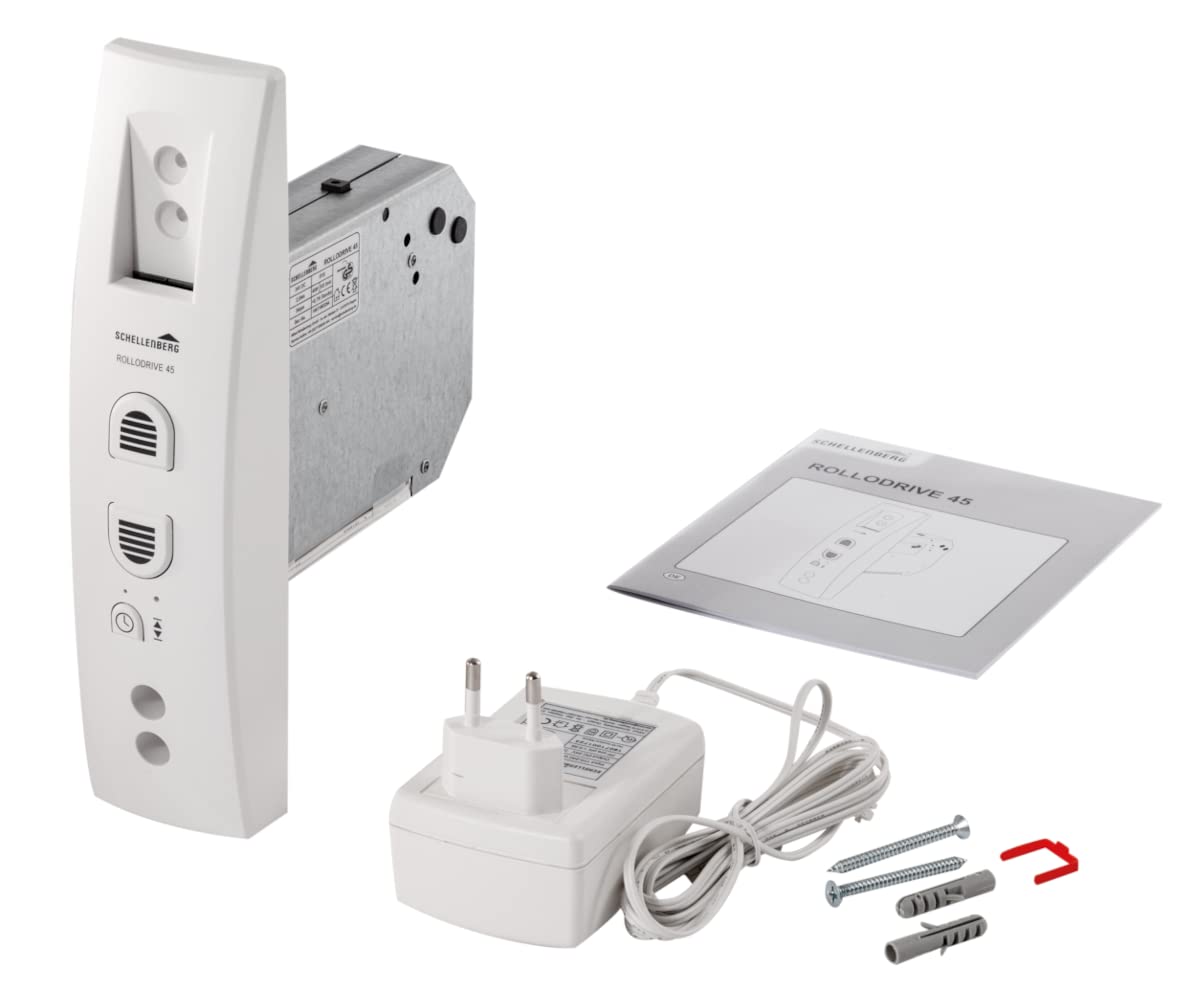

Image: The RolloDrive 45 unit, power adapter, mounting screws, wall plugs, and the instruction manual, laid out on a white surface.

4.2 Pre-Installation Check

Before installation, inspect the existing roller shutter system. Ensure the roller shutter operates smoothly and the belt is in good condition, free from fraying or excessive wear. If the roller shutter is stiff or difficult to move manually, address these issues first. Neglecting this can lead to increased noise and wear on the RolloDrive 45.

4.3 Installation into Wall Box

The RolloDrive 45 is designed for recessed installation in standard wall boxes. It requires a minimum opening width of 35 mm and a minimum height of 103 mm. The mounting holes are spaced at either 135 mm or 165 mm.

1. Remove the existing manual belt winder from the wall box.
2. Ensure the wall box dimensions are compatible with the RolloDrive 45.
3. Feed the roller shutter belt through the opening of the RolloDrive 45.
4. Secure the RolloDrive 45 into the wall box using the provided screws and wall plugs, aligning with the appropriate mounting hole spacing (135 mm or 165 mm).
5. Connect the power cable to the device and plug it into a suitable power outlet.

Image: A person installing the Schellenberg RolloDrive 45 electric belt winder into a prepared wall recess, demonstrating the ease of fitting.

5. Operation

5.1 Manual Control

The RolloDrive 45 features large, intuitive buttons for manual control:

• Press the Up button to raise the roller shutter.
• Press the Down button to lower the roller shutter.
• Press either button again to stop the movement at any desired position.

Image: A person's hand pressing one of the control buttons on the Schellenberg RolloDrive 45, demonstrating manual operation.

5.2 Automatic Timer Function

The integrated timer allows you to program automatic opening and closing times for your roller shutter. You can set one opening time and one closing time per day.

1. To set the automatic opening time, navigate to the timer setting mode (refer to the detailed manual for specific button sequences).
2. Set the desired time for the roller shutter to open.
3. Repeat the process to set the desired time for the roller shutter to close.
4. Once programmed, the roller shutter will automatically move at the set times daily.

Note: If power is interrupted, programmed times may need to be reset.

5.3 Obstacle Detection

The RolloDrive 45 is equipped with an automatic obstacle detection feature. If the roller shutter encounters resistance or an obstacle during movement, the device will automatically stop to prevent damage to the roller shutter or the motor.

5.4 Optional Solar Sensor Control

For enhanced automation, the RolloDrive 45 can be connected to a separately available solar sensor. This allows the roller shutter to react to sunlight, providing sun protection for furniture and plants by automatically lowering when intense sunlight is detected.

6. Maintenance

To ensure the longevity and optimal performance of your Schellenberg RolloDrive 45, consider the following maintenance tips:

• Belt Inspection: Regularly check the roller shutter belt for any signs of wear, fraying, or damage. A worn belt can affect the winder's performance and lifespan. Replace damaged belts promptly.
• Cleaning: Keep the belt winder and the roller shutter belt clean. Dust and debris can accumulate and hinder smooth operation. Use a soft, dry cloth for cleaning. Do not use abrasive cleaners or solvents.
• Roller Shutter Condition: Periodically inspect the roller shutter itself. Ensure all moving parts are clean and lubricated if necessary, to minimize friction and strain on the belt winder.
• Power Supply: Ensure the power cable and adapter are free from damage.

7. Troubleshooting

This section addresses common issues you might encounter with your RolloDrive 45.

• Roller Shutter Stops Unexpectedly:
  • Check for any physical obstructions in the path of the roller shutter.
  • Ensure the roller shutter is not jammed or stiff. The integrated obstacle detection will stop the unit if resistance is too high.
• Automatic Times Not Working After Power Outage:
  • The device may reset programmed times after a power interruption. Reprogram the desired opening and closing times as described in the "Automatic Timer Function" section.
• Increased Noise During Operation:
  • Inspect the roller shutter mechanism for any worn or unlubricated parts. Lubricating moving parts can reduce noise.
  • Ensure the roller shutter belt is clean and not rubbing against any surfaces.
  • Verify the roller shutter itself is in good condition; older, poorly maintained roller shutters can cause increased operational noise.
• Roller Shutter Not Moving Smoothly:
  • Check the roller shutter belt for proper tension and alignment.
  • Ensure the roller shutter guides are clean and free of debris.

8. Warranty and Support

For warranty information, technical support, or spare parts availability, please contact Schellenberg customer service directly. Refer to the product packaging or the official Schellenberg website for contact details.

Schellenberg is committed to quality and durability. For any questions regarding product selection, installation, or replacement, their support team is available to assist you.
