1. Introduction
The Nescafé Gold Blend Barista TAMA is a coffee machine designed exclusively for Nescafé soluble coffee. This manual provides essential information for the safe and efficient operation of your coffee machine. Please read it thoroughly before use and keep it for future reference.
Enjoy five types of coffee menus (espresso-type coffee, black coffee, mug-size black coffee, cappuccino, and café latte) with simple button operations. By refilling the coffee tank with Nescafé Eco & System Packs, the aroma is preserved.
2. Product Overview

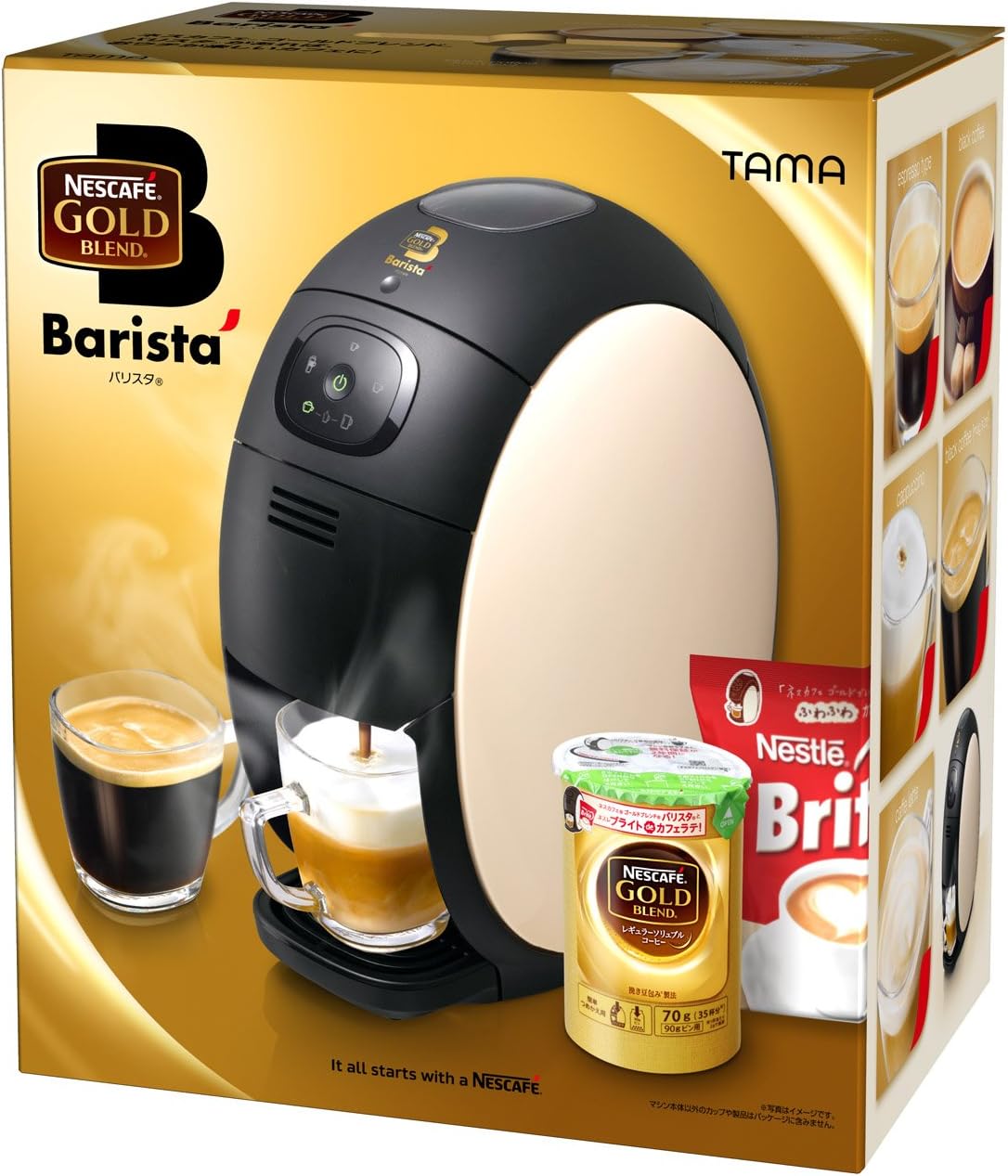

Figure 1: Nescafé Gold Blend Barista TAMA SPM9633W coffee machine in its retail packaging.
The Nescafé Gold Blend Barista TAMA SPM9633W is a compact and versatile coffee machine. It features a sleek design and user-friendly controls for preparing various coffee beverages.
3. Setup
3.1 Unpacking
Carefully remove all components from the packaging. Ensure all parts are present and undamaged. Retain packaging for future transport or storage.
3.2 Initial Cleaning
Before first use, wash the water tank and coffee tank with mild detergent and rinse thoroughly. Wipe the exterior of the machine with a damp cloth.
3.3 Water Tank Installation and Filling
Video 1: Product demonstration showing the water tank and coffee tank installation and refilling process.
- Remove the water tank from the back of the machine.
- Open the lid and fill the tank with fresh, cold water up to the MAX line.
- Replace the lid and securely reinsert the water tank into the machine.
3.4 Coffee Tank Refill
- Open the top lid of the machine.
- Remove the coffee tank.
- Refill the coffee tank with Nescafé Gold Blend Eco & System Pack soluble coffee.
- Securely place the coffee tank back into its compartment and close the top lid.
Figure 2: Compatible Nescafé Gold Blend Eco & System Packs for refilling.
4. Operating Instructions
4.1 Power On
Plug the machine into a suitable power outlet. Press the power button to turn on the machine. The indicator light will illuminate.
4.2 Selecting a Beverage
Place a cup on the drip tray. The machine offers five different coffee menu options:
Figure 3: Available coffee menu options and recommended cup sizes.
- Espresso-type Coffee: For a rich, concentrated coffee.
- Black Coffee: Standard black coffee.
- Mug-size Black Coffee: Larger serving of black coffee.
- Cappuccino: Coffee with frothy milk.
- Café Latte: Coffee with steamed milk.
Press the button corresponding to your desired beverage. The machine will begin preparation automatically.
4.3 Adjusting Cup Height
The drip tray can be adjusted or removed to accommodate different cup sizes. For taller mugs, remove the upper drip tray grid.
5. Maintenance
5.1 Daily Cleaning
- After each use, wipe the dispensing spout and drip tray with a clean, damp cloth.
- Empty and rinse the drip tray regularly.
5.2 Weekly Cleaning
- Remove and thoroughly wash the water tank and coffee tank with warm, soapy water. Rinse well and allow to air dry.
- Clean the interior of the machine where the coffee tank sits, ensuring no coffee residue remains.
5.3 Descaling
Depending on water hardness and frequency of use, descaling may be required periodically. Refer to the full instruction manual for detailed descaling procedures using a suitable descaling solution.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not turn on | No power supply | Check if the power cord is securely plugged into the outlet. |
| Coffee is not dispensed | Water tank empty or coffee tank empty | Refill the water tank or coffee tank. |
| Coffee tastes weak | Insufficient coffee powder or incorrect setting | Ensure the coffee tank is adequately filled. Select a stronger coffee option if available. |
| Machine making unusual noises | Air in the system or blockages | Run a cleaning cycle. If the issue persists, contact customer support. |
For more complex issues, please refer to the comprehensive troubleshooting guide in the full product manual or contact customer support.
7. Specifications
- Brand: Nestlé
- Model Number: SPM9633W
- Main Unit Dimensions: W178 x H320 x D289 mm
- Package Dimensions: 34.6 x 31.9 x 21.7 cm
- Color: White
- Power Source: AC powered
- Wattage: 1460 W
- Voltage: 100 V
- Package Weight: 3.56 kg
- Batteries Required: No
- Human Interface Input: Buttons
8. Warranty and Support
This product comes with a standard manufacturer's warranty. For detailed information regarding warranty terms, coverage, and duration, please refer to the warranty card included with your purchase or visit the official Nestlé website.
For technical support, service, or spare parts, please contact Nestlé customer service. Contact details can be found on the Nestlé website or in your product documentation.
