1. Product Overview
The Ferroli Calypso 80VE is an 80-liter vertical electric water heater designed to provide domestic hot water. It features a high-quality steel tank internally insulated with polyurethane foam, an extractable copper electric heating element, and a thermostatic probe control. A magnesium anode protects the tank from corrosion, ensuring longevity. The unit includes a temperature level indicator, an on/off light, and a safety valve set at 8 bar. Manual external temperature adjustment is available.

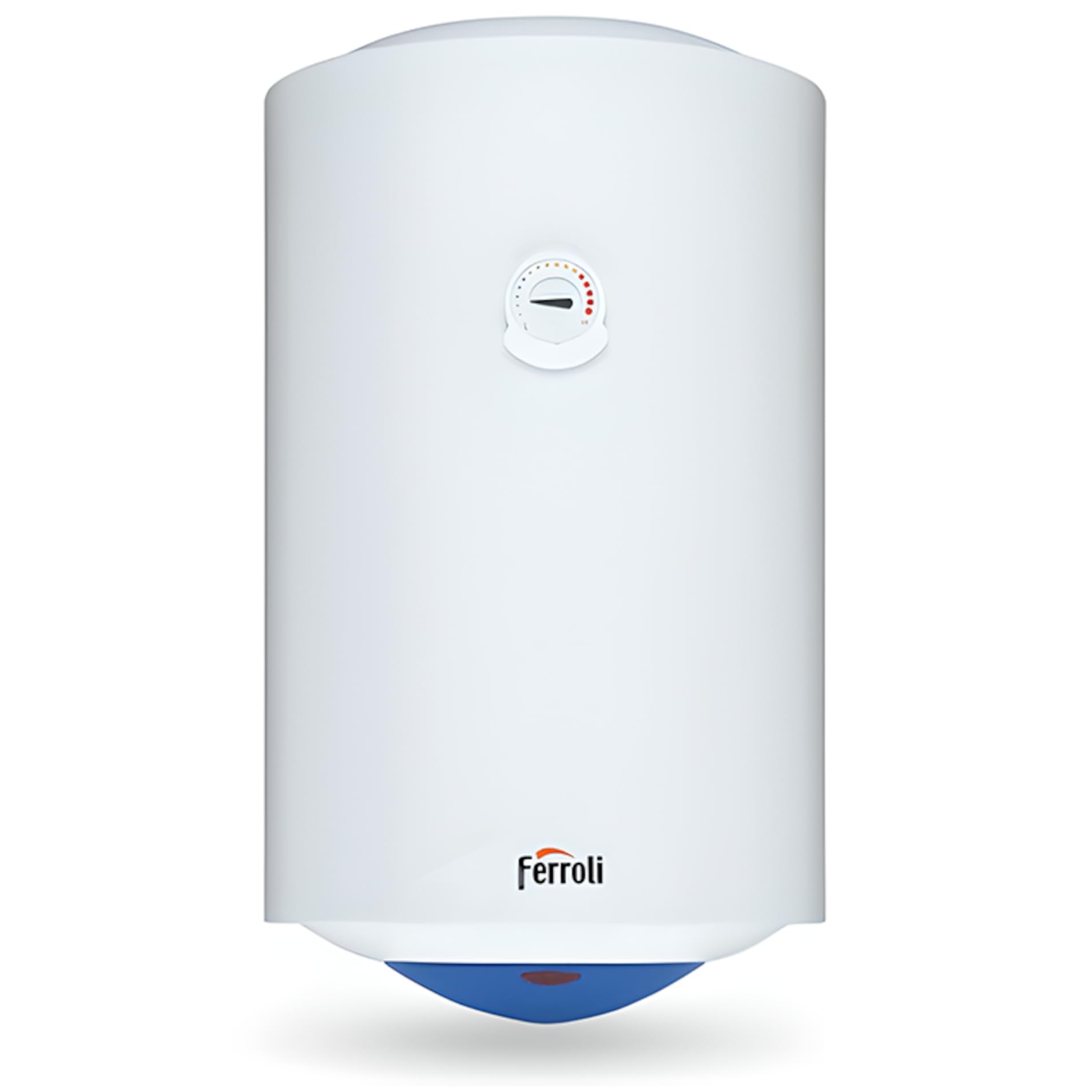

Image 1.1: Front view of the Ferroli Calypso 80VE 80 Liter Vertical Electric Water Heater. This image shows the white cylindrical body of the water heater with the Ferroli logo and a temperature control dial on the front. The bottom part is blue, indicating the water inlet/outlet area.
- Capacity: 80 liters, suitable for households up to 3 people.
- Mounting: Vertical wall mounting for space optimization.
- Tank Material: Powder-enameled steel for durability and corrosion resistance.
- Heating Element: Copper electric heating element.
- Corrosion Protection: Magnesium anode.
- Insulation: High-density CFC-free polyurethane to minimize heat dispersion and reduce energy consumption.
- Temperature Control: Manual external temperature adjustment.
2. Safety Information
Please read all safety instructions carefully before installation and use. Failure to follow these instructions may result in property damage, personal injury, or death.
- Electrical Safety: Ensure the water heater is connected to a properly grounded electrical outlet. Do not operate with damaged cords or plugs. Disconnect power before any maintenance or repair.
- Water Pressure: The unit is equipped with a safety valve set at 8 bar. Do not tamper with or remove this valve. Ensure your household water pressure does not exceed this limit.
- Installation: Installation must be performed by a qualified technician in accordance with local regulations and plumbing codes.
- Water Temperature: Hot water can cause severe burns. Exercise caution when using hot water from the unit. Adjust the temperature to a safe level, especially in households with children or elderly individuals.
- Maintenance: Regular maintenance, including anode inspection, should be performed by a qualified professional.
- Flammable Materials: Do not store or use flammable materials near the water heater.
3. Installation and Setup
The Ferroli Calypso 80VE is designed for vertical wall mounting. Professional installation is highly recommended.
- Location Selection: Choose a suitable location for vertical wall mounting, ensuring the wall can support the weight of the water heater when full (approximately 102.2 kg for the 80-liter model). Ensure adequate clearance for maintenance and ventilation.
- Mounting: Securely attach the mounting bracket to the wall using appropriate wall plugs and screws (not included). The bracket spacing is between 26 and 30 cm.
- Water Connections: Connect the cold water inlet and hot water outlet pipes. Flexible hoses are typically required (not included). Ensure all connections are watertight.
- Safety Valve Installation: Install the provided safety valve on the cold water inlet. A discharge pipe should be connected to the safety valve to safely drain any released water.
- Electrical Connection: Connect the water heater to a dedicated, grounded electrical circuit. Ensure the voltage matches the unit's requirements (230 Volt).
- Filling the Tank: Before switching on the power, open a hot water tap in your home to allow air to escape and the tank to fill completely with water. Close the tap once water flows steadily.
- Initial Power-Up: Switch on the electrical power to the unit. The on/off indicator light should illuminate.
Image 3.1: Diagram showing the internal components and connections of the Ferroli Calypso 80VE. This image illustrates the heating element, thermostat, magnesium anode, and water inlet/outlet points, providing a visual guide for installation.
4. Operating Instructions
Operating the Ferroli Calypso 80VE is straightforward.
- Power On/Off: The water heater will begin heating water once connected to power and filled. The on/off indicator light confirms operation.
- Temperature Adjustment: Use the manual external temperature control knob located on the front of the unit to set your desired water temperature. Rotate the knob to increase or decrease the temperature.
- Heating Cycle: The unit will heat the water to the set temperature and then maintain it. The heating element will cycle on and off as needed. The temperature level indicator provides an approximate reading of the water temperature inside the tank.
- Energy Saving Tips:
- Set the temperature to the lowest comfortable level to save energy.
- Consider using a timer (not included) to operate the water heater during off-peak electricity hours, if applicable.
- Ensure the unit is well-insulated to minimize heat loss.
5. Maintenance
Regular maintenance ensures the longevity and efficient operation of your water heater.
- Magnesium Anode Inspection/Replacement: The magnesium anode protects the tank from corrosion. It should be inspected annually and replaced every 1-2 years, depending on water quality. This procedure should be performed by a qualified technician.
- Draining the Tank: If the unit will be out of use for an extended period or in areas prone to freezing, the tank should be drained. Disconnect power, close the cold water inlet valve, open a hot water tap, and open the drain valve (usually located at the bottom of the unit or via the safety valve).
- Cleaning: Periodically clean the exterior of the unit with a soft, damp cloth. Do not use abrasive cleaners or solvents.
- Safety Valve Check: Periodically operate the safety valve lever to ensure it is not blocked and functions correctly. Follow the manufacturer's instructions for this check.
6. Troubleshooting
Before contacting customer support, review these common issues and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| No hot water or insufficient hot water. |
|
|
| Water leaking from the unit. |
|
|
| Water is too hot. |
|
|
| Unusual noises from the unit. |
|
|
7. Specifications
Detailed technical specifications for the Ferroli Calypso 80VE.
| Manufacturer | Ferroli |
| Model Number | Lt. 80 - 1200 W - h.75 x Ø 44 cm. (Calypso 80VE) |
| Capacity | 80 Liters |
| Dimensions (Product) | 44 cm (width) x 75 cm (height) |
| Package Dimensions | 80.5 x 47.5 x 45.5 cm |
| Weight (Item) | 22.2 Kilograms |
| Voltage | 230 Volt |
| Wattage | 1200 watts |
| Maximum Pressure | 8 Bar |
| Energy Efficiency Class | C |
| Special Features | Safety Valve |
| Mounting Type | Wall Mount |
| Components Included | Water Heater |
| Annual Electricity Consumption (EU 812/2013) | 2803 kWh |
| Declared Load Profile (EU 812/2013) | L |
| Water Heating Energy Efficiency (EU 812/2013) | 37% |
| Sound Power Level (Indoors) | 15 dB |

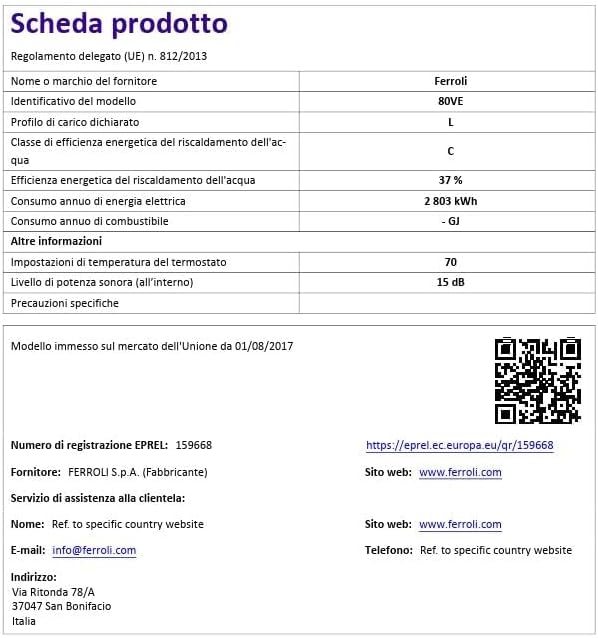

Image 7.1: Product data sheet for the Ferroli Calypso 80VE, detailing technical specifications and energy efficiency information. This sheet includes model identification, energy class, annual consumption, and sound power level. A QR code links to the EPREL database.
For more detailed information, refer to the EPREL database: https://eprel.ec.europa.eu/qr/159668
Image 7.2: Energy label for the Ferroli Calypso 80VE, showing its energy efficiency class (C) and annual electricity consumption. This label provides a quick overview of the product's energy performance.
8. Warranty and Support
The Ferroli Calypso 80VE comes with a 2-year warranty.
For technical assistance, warranty claims, or further information, please contact Ferroli customer support:
- Email: info@ferroli.com
- Website: www.ferroli.com
- Address: Via Ritonda 78/A, 37047 San Bonifacio, Italia
Please have your product model number (Calypso 80VE) and purchase date available when contacting support.
