Introduction
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Fisher & Paykel RF170WDLUX5 Bottom Freezer Refrigerator. Please read these instructions thoroughly before using your appliance and retain them for future reference.
Important Safety Information
To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:
- Ensure the appliance is properly grounded.
- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
- Do not damage the refrigerant circuit.
- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
- Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
- Unplug the refrigerator before cleaning or performing any maintenance.
Setup and Installation
Unpacking
Carefully remove all packaging materials. Ensure no parts are missing or damaged. Keep packaging materials out of reach of children.
Placement
Position the refrigerator on a flat, stable surface away from direct sunlight and heat sources. Allow adequate clearance around the appliance for proper ventilation. Refer to the dimensions in the specifications section for planning.
Image: The Fisher & Paykel RF170WDLUX5 refrigerator positioned within a kitchen environment, showcasing its open door and internal layout. This illustrates typical placement and required space.
Leveling
Adjust the leveling feet at the bottom of the refrigerator to ensure it is stable and level. This prevents vibrations and ensures proper door sealing.
Electrical Connection
Connect the refrigerator to a dedicated, grounded electrical outlet. Do not use extension cords or adapter plugs. Ensure the voltage and frequency match the appliance's requirements.
Water Connection (for Ice and Water Dispenser)
For the ice maker and water dispenser to function, connect the refrigerator to a potable water supply using the provided water line kit. Ensure all connections are secure and leak-free. Flush the water system as per instructions before first use.
Operating Instructions
Temperature Control
Your RF170WDLUX5 refrigerator features independent temperature controls for the fresh food and freezer compartments. Use the control panel inside the refrigerator to set desired temperatures. Recommended settings are typically 37°F (3°C) for the refrigerator and 0°F (-18°C) for the freezer.
Ice Maker Operation
Once the water supply is connected and flushed, the automatic ice maker will begin producing ice. Allow 24 hours for the first batch of ice to be produced. Discard the first few batches of ice to ensure cleanliness.
Water Dispenser Operation
Press a glass against the dispenser paddle located on the exterior of the refrigerator door to dispense chilled, filtered water. Ensure the water supply is active and the filter is correctly installed.

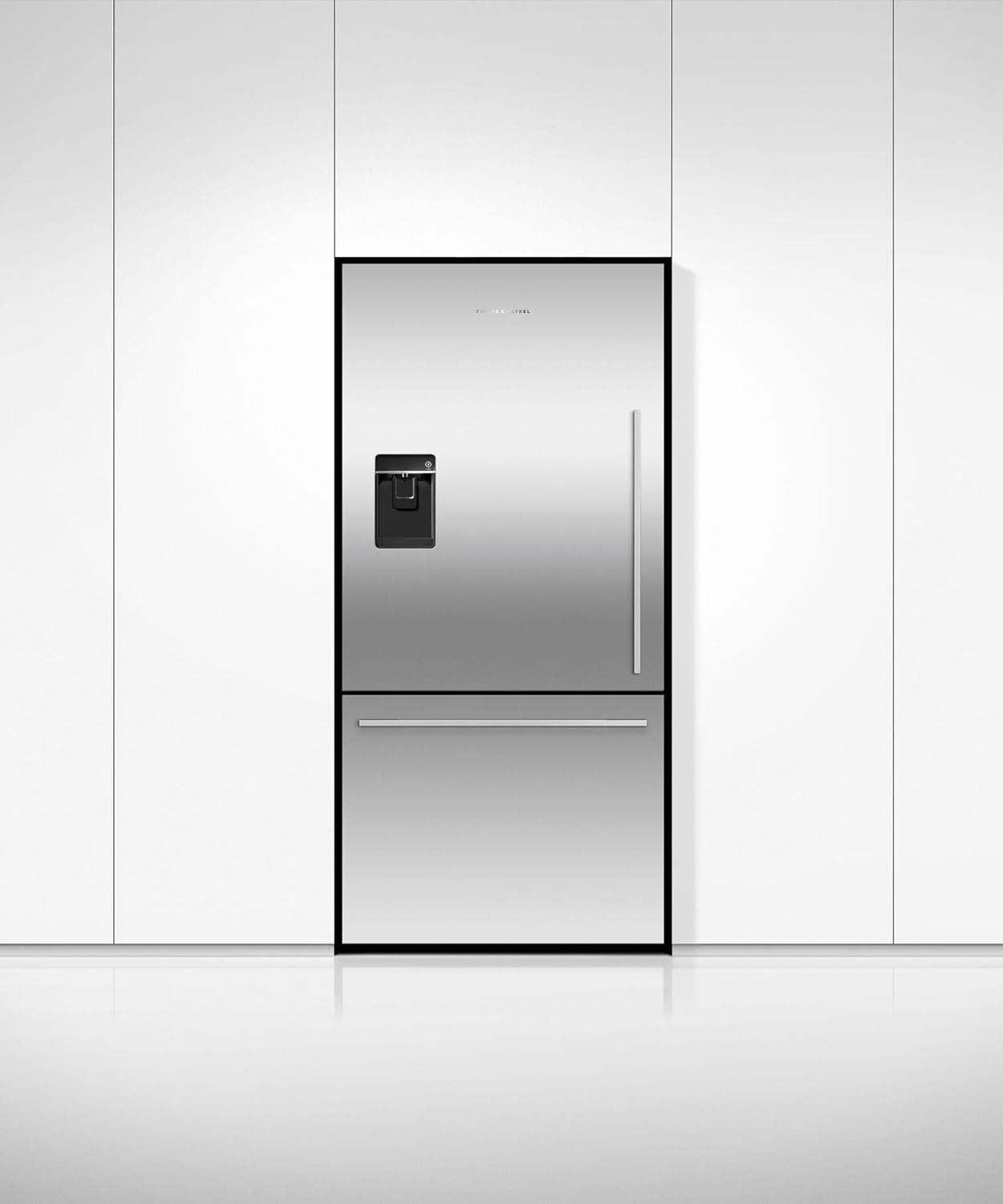

Image: The exterior of the Fisher & Paykel RF170WDLUX5 refrigerator, showing the stainless steel finish and the integrated water dispenser on the left door. This highlights the external features for user interaction.
Storage Features
The refrigerator is equipped with adjustable shelves, door bins, and humidity-controlled crispers to optimize food storage. The LED lighting illuminates the interior for clear visibility.
Image: An open view of the Fisher & Paykel RF170WDLUX5 refrigerator's interior, displaying various food items organized on shelves and in drawers. This illustrates the internal storage capacity and LED lighting.
Maintenance
Cleaning
Regularly clean the interior and exterior of your refrigerator. Use a mild detergent and warm water. Avoid abrasive cleaners or solvents. Wipe door seals with a damp cloth to ensure they remain pliable and seal effectively.
Water Filter Replacement
The water filter should be replaced approximately every six months, or when the filter indicator light illuminates, to ensure optimal water quality and dispenser performance. Refer to the filter replacement instructions provided with your appliance.
Troubleshooting
Before contacting service, review the following common issues and solutions:
- Refrigerator not cooling: Check if the power cord is securely plugged in, the circuit breaker has not tripped, and the temperature settings are correct. Ensure doors are fully closed.
- Water dispenser not working: Verify the water supply valve is open, the water line is not kinked, and the water filter is correctly installed and not clogged.
- Ice maker not producing ice: Confirm the ice maker is turned on, the water supply is connected, and the freezer temperature is set correctly.
- Unusual noises: Some operational noises are normal (e.g., compressor hum, water flowing). If noises are loud or unusual, ensure the refrigerator is level and not touching walls or cabinets.
If problems persist after attempting these solutions, contact Fisher & Paykel customer service.
Specifications
| Feature | Detail |
|---|---|
| Model Number | RF170WDLUX5 |
| Brand | Fisher & Paykel |
| Capacity | 17.1 Cubic Feet |
| Configuration | Bottom Freezer |
| Dimensions (D x W x H) | 29"D x 33"W x 69"H |
| Special Features | Independent Temperature Control, LED Lighting, Ice and Water Dispenser |
| Material | Stainless Steel |
| Weight | 245 Pounds |
Warranty Information
Specific warranty details for the Fisher & Paykel RF170WDLUX5 refrigerator are provided with the purchase documentation. Please refer to your warranty card or contact Fisher & Paykel directly for comprehensive warranty terms and conditions.
Customer Support
For technical assistance, service requests, or to order replacement parts, please contact Fisher & Paykel customer service. Visit the official Fisher & Paykel website for contact information and support resources.
