B95 Flexible Grader Ruler - 18" 45cm User Manual

Introduction

This manual provides comprehensive instructions for the proper use and care of your HAND B95 Flexible Grader Ruler. Designed for precision and versatility, this ruler is an essential tool for fashion professionals, students, and home garment crafters.

The B95 Flexible Grader Ruler is an 18-inch (45 cm) clear ruler featuring both imperial and metric markings. Its flexible nature allows for accurate measurement and grading of curved patterns, while its clear material ensures visibility of the underlying fabric or pattern.

Product Overview

Full view of the B95 Flexible Grader Ruler, showing its transparent body and pink markings. — Figure 1: Overall view of the B95 Flexible Grader Ruler. This image displays the full length of the ruler, highlighting its transparent material and the distinct pink measurement markings in both imperial and metric units.

Close-up of the ruler showing inches and metric markings. — Figure 2: Detailed view of the ruler's measurement scales. This close-up shows the clear markings for both inches and centimeters, indicating the precision of the tool for various measurement needs.

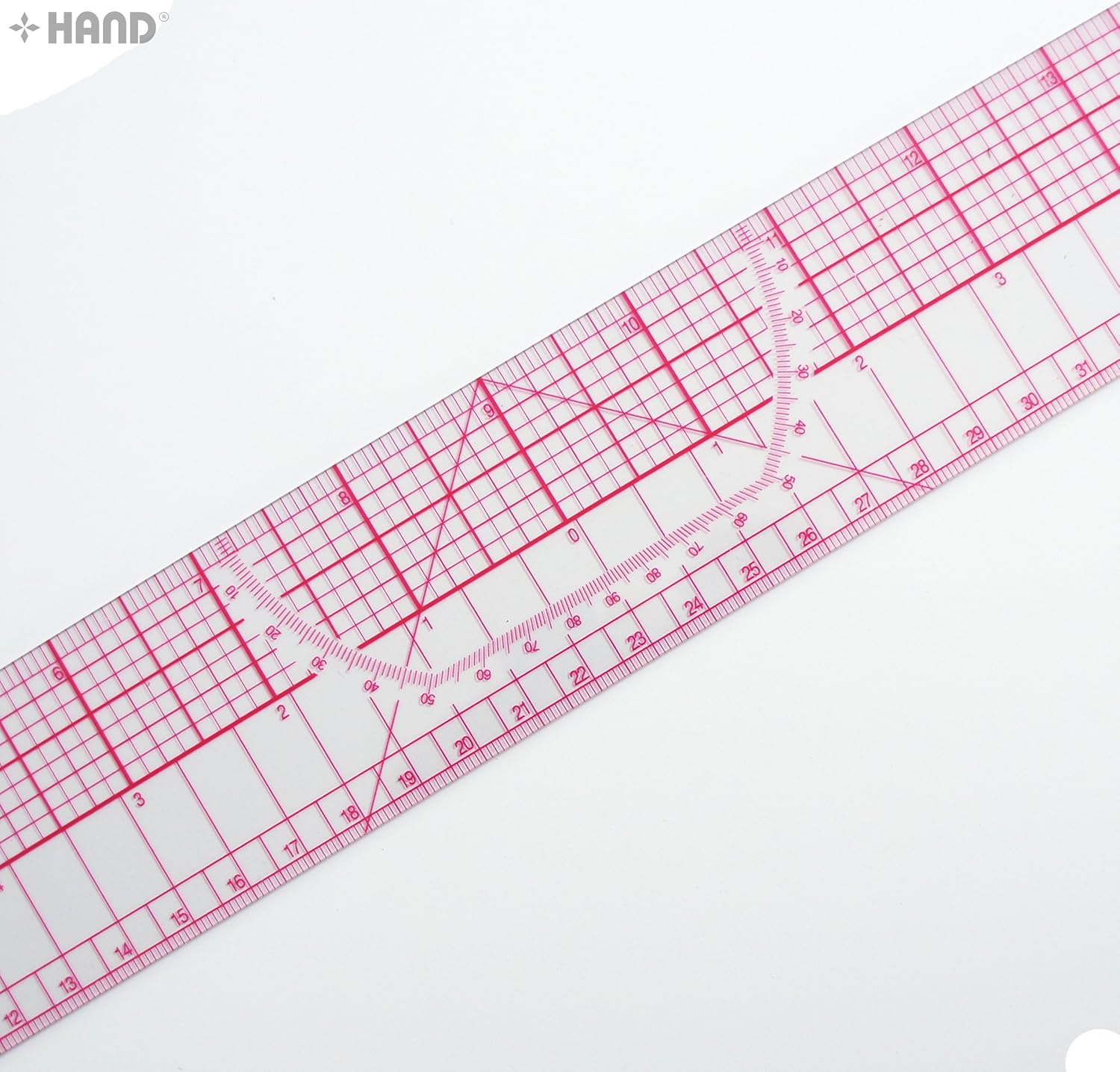

Close-up of the ruler's central protractor and grid markings. — Figure 3: Central section of the ruler with protractor and grid. This image highlights the integrated protractor for angle measurements and the grid lines, useful for pattern drafting and alignment.

End of the ruler showing model number B-95 and measurement details. — Figure 4: End section of the ruler displaying product information. This view shows the model number B-95 and additional text indicating its inch/metric scale and 1/8th inch grading.

Setup

The B95 Flexible Grader Ruler requires no assembly or complex setup. It is ready for immediate use upon removal from its packaging.

Unpacking

Carefully remove the ruler from its protective packaging.
Inspect the ruler for any signs of damage during transit. If damage is observed, contact customer support immediately.
Retain packaging materials for future storage or transport, if desired.

Operating Instructions

The B95 Flexible Grader Ruler is designed for a variety of pattern making and grading tasks. Its flexibility allows it to conform to curves, making it ideal for grading clothing patterns and creating intricate designs.

General Use

Measuring Straight Lines: Place the ruler flat on the material. Align the desired marking with the starting point and read the measurement at the endpoint.
Measuring Curves: Gently bend the ruler to match the curve of your pattern or fabric. Hold the ruler firmly in place to ensure accurate measurement. The ruler's flexibility allows it to adapt to various curve radii.
Grading Patterns: Utilize the clear grid lines and markings to accurately grade patterns up or down in size. The transparent material allows for precise alignment with existing pattern lines.
Using the Protractor: The integrated protractor in the center of the ruler can be used to measure and draw angles. Align the center point of the protractor with the vertex of the angle.

Tips for Accuracy

Always work on a flat, stable surface.
Ensure the ruler is clean and free of debris before use to maintain visibility of markings.
For critical measurements, double-check your readings.

Maintenance

Proper maintenance will extend the lifespan and accuracy of your B95 Flexible Grader Ruler.

Cleaning

Wipe the ruler with a soft, damp cloth.
Avoid using abrasive cleaners or solvents, as these may damage the material or fade the markings.
Dry thoroughly with a clean, soft cloth.

Storage

Store the ruler flat or gently rolled to prevent permanent deformation.
Keep away from direct sunlight or extreme temperatures, which can affect the material's integrity.
Store in a clean, dry environment to prevent dust accumulation.

Troubleshooting

This section addresses common concerns regarding the B95 Flexible Grader Ruler.

Problem	Possible Cause	Solution
Markings appear faded or unclear.	Dust, dirt, or residue on the ruler surface.	Clean the ruler with a soft, damp cloth. Ensure it is completely dry before use.
Ruler does not lie flat after bending.	Improper storage or prolonged bending in one direction.	Store the ruler flat when not in use. Gentle counter-bending may help restore flatness over time. Avoid extreme or prolonged bending.
Difficulty reading measurements on dark fabrics.	Contrast issue with the pink markings.	Ensure adequate lighting. The pink markings are designed for good visibility on most surfaces, but very dark or similarly colored fabrics may reduce contrast.

Specifications

Model: B95
Brand: HAND
Length: 18 inches (45 cm)
Material: Acrylic
Color: Transparent with pink/fuchsia markings
Dimensions: 17.72 x 0.08 x 1.97 inches (approximate)
Weight: 2.01 ounces (approximate)
Features: Flexible, clear, imperial and metric scales, integrated protractor.

Warranty and Support

For information regarding product warranty, returns, or technical support, please refer to the retailer's policy where the product was purchased. As a general guideline, the product is expected to be free from defects in material and workmanship under normal use.

For further assistance, please contact the manufacturer, C-Thru ruler company, or the seller, yes fashion convenience ltd, through their respective customer service channels.

Manufacturer: C-Thru ruler company

Seller: yes fashion convenience ltd
