SentrySafe SFW205DPB Combination Fire Safe User Manual

1. Introduction

This manual provides essential instructions for the proper setup, operation, and maintenance of your SentrySafe SFW205DPB XX Large Combination Fire Safe. Please read this manual thoroughly before using your safe to ensure optimal performance and security.

The SentrySafe SFW205DPB is designed to protect important documents and valuables from fire, impact, and water damage. It features a combination lock for primary access and a dual key lock for additional security.

2. Safety Information

• Always keep the safe's combination and keys in a secure location, separate from the safe itself.
• Do not store the safe's keys inside the safe.
• Ensure the safe is placed on a level, stable surface.
• The safe is heavy. Exercise caution and use proper lifting techniques or assistance when moving.
• While the safe offers ETL verified water protection up to 8 inches for 24 hours, it is not fully submersible or rated as 'waterproof'. Avoid prolonged exposure to water beyond specified limits.
• The safe is designed for fire endurance (1-hour at 1700°F) and impact resistance (15-foot drop).

3. Package Contents

Verify that all components are present in the package:

• SentrySafe SFW205DPB Safe Unit
• Instruction Guide (this document)
• Keys for the dual key lock
• Bolt-down hardware (for securing the safe)
• Multi-position tray
• Deep file rack
• Door pocket with key rack

4. Setup

4.1 Unboxing and Placement

Carefully remove the safe from its packaging. Choose a suitable location that is dry, level, and secure. Consider the safe's weight (approximately 62.5 lbs) and dimensions (19.31"D x 18.63"W x 23.81"H) when selecting a placement.

4.2 Securing the Safe (Bolt-Down)

The safe includes bolt-down hardware to prevent unauthorized removal. Follow these steps to secure your safe:

1. Position the safe in its desired location.
2. Open the safe door and locate the bolt-down holes on the bottom interior.
3. Mark the drilling points on the floor through the holes.
4. Move the safe and drill pilot holes according to the marked points. Use appropriate drill bits for your floor type.
5. Reposition the safe over the drilled holes.
6. Insert the bolt-down hardware through the safe's interior and into the floor. Tighten securely.

Note: Bolting down the safe may affect its water protection rating if the seal is compromised during installation. Ensure proper sealing if water protection is critical.

4.3 Interior Organization

Utilize the included multi-position tray, deep file rack, and door pocket with key rack to organize your valuables and documents efficiently within the safe.

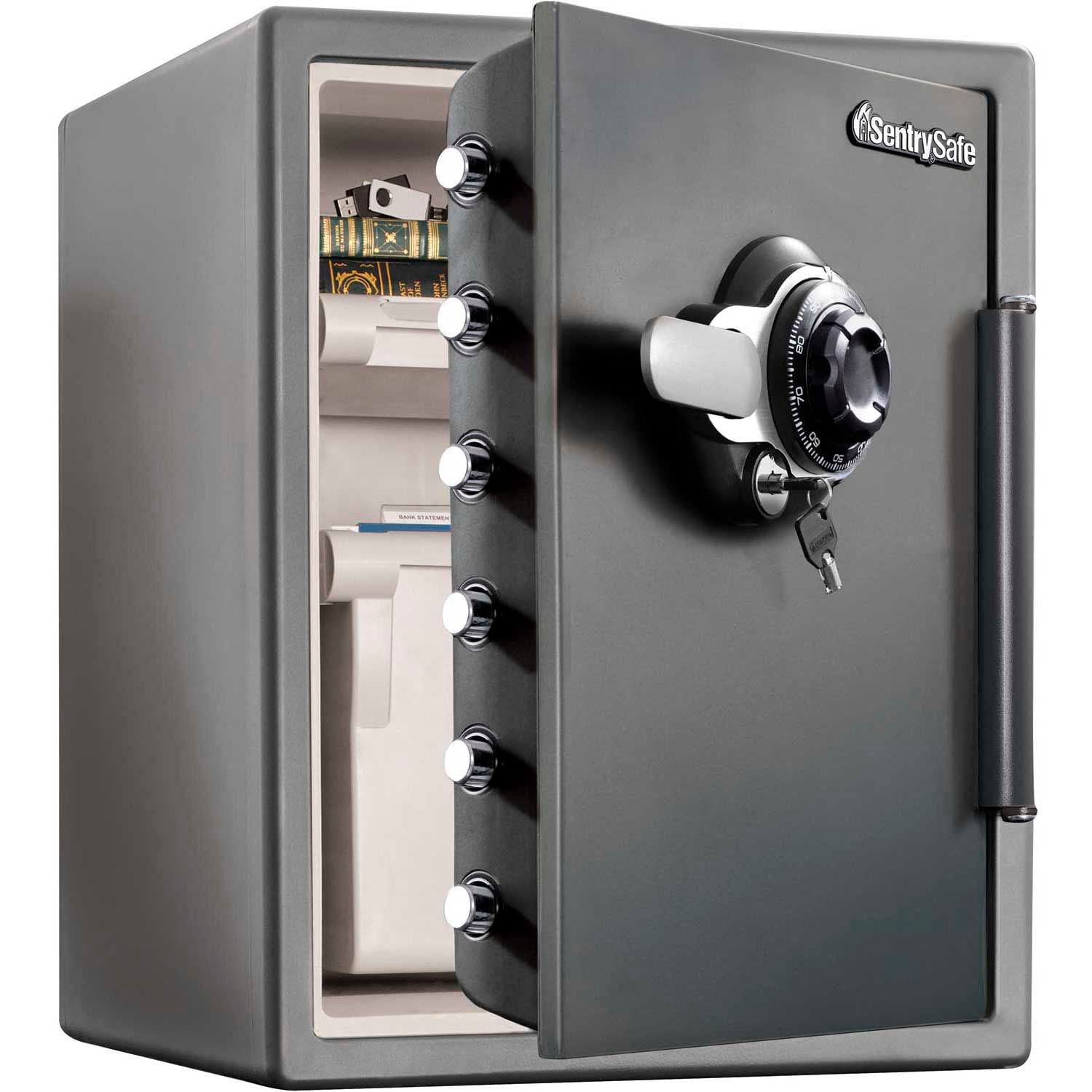

Image: SentrySafe SFW205DPB with its door open, revealing the spacious interior, multi-position tray, and the combination lock mechanism on the door.

5. Operating the Safe

5.1 Opening with the Combination Lock

Your SentrySafe SFW205DPB uses a mechanical combination lock. Follow these steps to open the safe:

1. Turn the dial to the right (clockwise) at least four full turns, stopping on the first number of your combination.
2. Turn the dial to the left (counter-clockwise) three full turns, passing the second number twice, and stopping on the second number on the third turn.
3. Turn the dial to the right (clockwise) two full turns, passing the third number once, and stopping on the third number on the second turn.
4. Turn the dial to the left (counter-clockwise) until the dial stops. This should be the fourth number of your combination.
5. Rotate the handle to open the safe door.

Note: If the safe does not open, repeat the steps carefully. Ensure precise stopping on each number. Avoid forcing the handle.

5.2 Using the Dual Key Lock

The dual key lock provides an additional layer of security. It can be used in conjunction with the combination lock or to secure the safe when the combination is not in use.

• To lock: Insert the key and turn it to the locked position. Remove the key.
• To unlock: Insert the key and turn it to the unlocked position. Remove the key.

Always ensure the safe door is fully closed and the handle is turned to the locked position before engaging the key lock.

6. Maintenance

• Cleaning: Wipe the exterior of the safe with a soft, damp cloth. Avoid abrasive cleaners or solvents.
• Lock Mechanism: The combination lock is a precision instrument. Do not attempt to lubricate or disassemble the lock mechanism. If you experience issues, contact customer support.
• Door Seal: Periodically inspect the door seal for any signs of damage or wear to ensure continued fire and water protection.
• Hinges: The hinges are designed for long-term use and typically do not require lubrication.

7. Troubleshooting

7.1 Safe Does Not Open

• Combination Entry Error: Ensure you are following the combination dialing sequence precisely. Each number must be stopped on accurately.
• Dialing Direction: Confirm you are turning the dial in the correct clockwise/counter-clockwise sequence for each number.
• Handle Stuck: If the handle feels stiff, ensure the safe is on a level surface. Sometimes slight pressure on the door can help release the mechanism.
• Key Lock Engaged: Verify that the dual key lock is in the unlocked position before attempting to open with the combination.

7.2 Safe Door Does Not Close Properly

• Obstruction: Check for any items inside the safe that might be preventing the door from closing fully.
• Door Alignment: Ensure the safe is on a level surface. If the safe is bolted down, check if the bolts are overtightened or causing distortion.
• Handle Position: Make sure the handle is in the open position before attempting to close the door, then rotate it to the locked position once closed.

7.3 Lost Combination or Keys

If you have lost your combination or keys, contact SentrySafe customer support directly. You will likely need to provide proof of ownership for assistance.

8. Specifications

9. Warranty and Support

SentrySafe products are manufactured to high-quality standards. For specific warranty information, please refer to the warranty card included with your purchase or visit the official SentrySafe website. For technical assistance, parts, or service, please contact SentrySafe customer support.

Keep your purchase receipt and model number (SFW205DPB) readily available when contacting support.
