1. Introduction
The Yamaha YVC-1000 is a unified communications microphone and speaker system designed for large meeting rooms and flexible configurations. It offers a scalable solution, allowing daisy-chaining of up to five microphones and connection to external speakers. This system is ideal for various applications, including remote education and seminars, providing high-quality audio for clear communication.
Image: The Yamaha YVC-1000 system, showing the main speaker unit and a connected microphone.
2. Setup
2.1 Unpacking and Components
Before setup, ensure all components are present:
- Control unit (main speaker unit)
- Speaker phone (microphone unit)
- USB cable
- AC adapter
2.2 Connection Guide
Connect the YVC-1000 to your devices using the following methods:

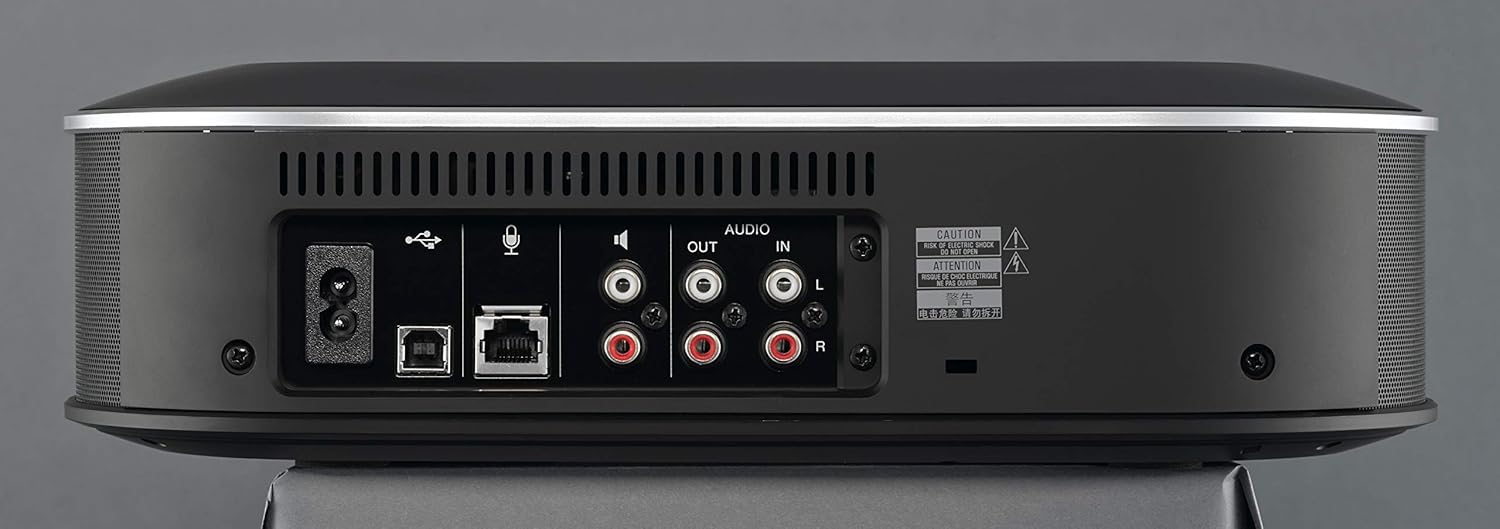

Image: Rear panel of the YVC-1000 control unit, illustrating various connection ports including USB, microphone input, and audio in/out.
- USB Connection: Connect the control unit to your computer (desktop or laptop) using the provided USB cable. This enables audio input and output for unified communications applications.
- Bluetooth Connection: For wireless connectivity with smartphones or tablets, enable Bluetooth on your device and pair with the YVC-1000. NFC technology is also supported for quick pairing.
- Microphone Daisy-Chain: Up to five microphone units can be daisy-chained to the control unit using standard network cables (CAT5/6). Connect the first microphone to the control unit, and subsequent microphones to the previous one.
- External Speakers: The system supports connection of two external speakers via the audio output ports (L/R) on the control unit for enhanced sound distribution in larger spaces.
2.3 Initial Power On
After connecting all necessary cables, plug the AC adapter into the control unit and a power outlet. The unit will power on, and indicator lights will illuminate, indicating readiness for use.
3. Operating
3.1 Basic Controls
The YVC-1000 control unit features intuitive touch controls:
- Power Button: Press to turn the unit on or off.
- Volume Up/Down: Adjust the speaker volume.
- Microphone Mute: Mute or unmute the microphone. An indicator light will show the mute status.
- Bluetooth Pairing: Press and hold to initiate Bluetooth pairing mode.
3.2 Conference Call Usage
Once connected to your computer or smart device, the YVC-1000 functions as your primary audio device for conference calls. Its high-quality sound technologies, including adaptive echo canceller and Human Voice Activity Detection (HVAD), minimize background noise and ensure clear voice transmission.
3.3 Daisy-Chain Microphones

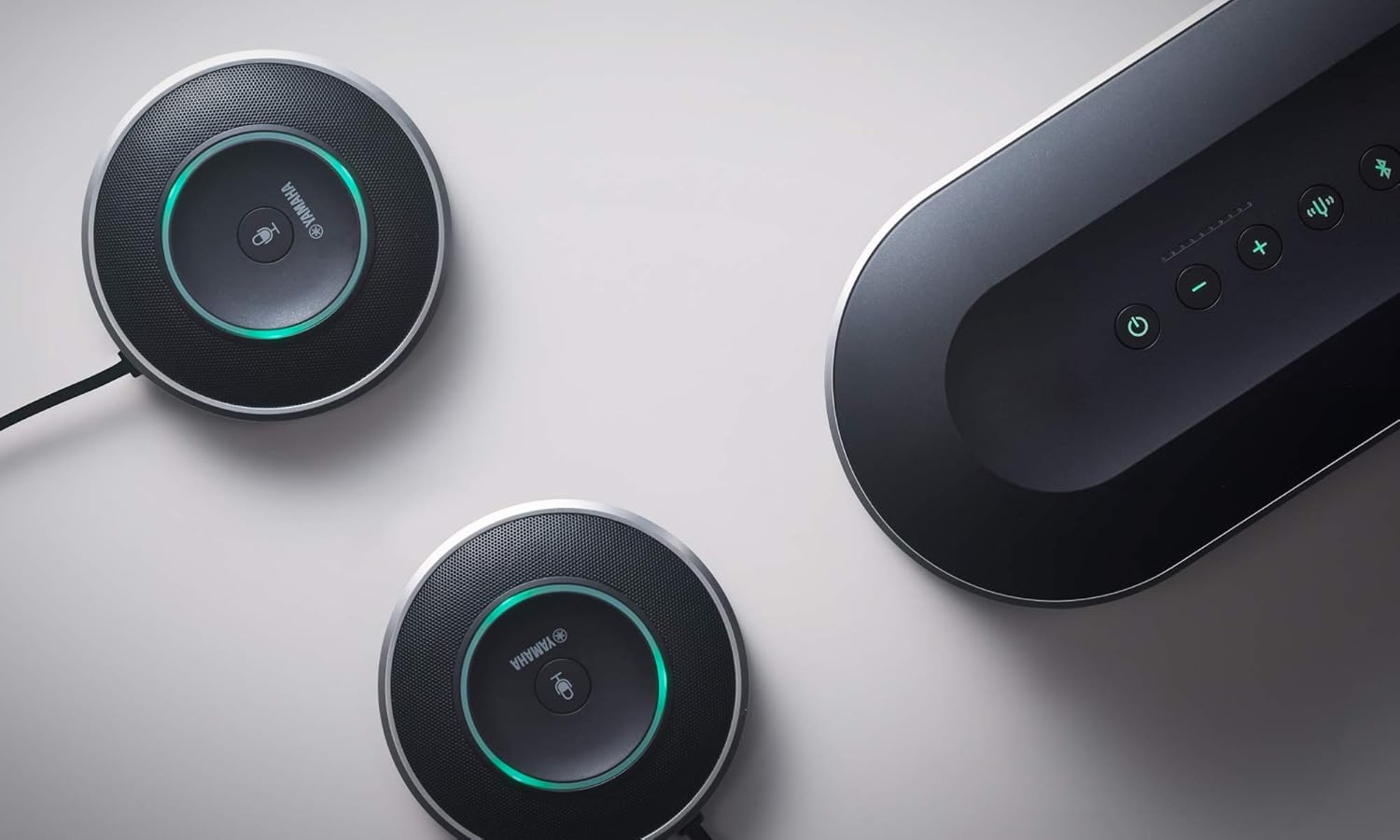

Image: A top-down view of the YVC-1000 main unit alongside two microphone units, demonstrating the system's expandability.
For larger meeting spaces, additional microphone units can be connected in a daisy-chain configuration. This extends the microphone pickup range, ensuring all participants are heard clearly. Ensure microphones are placed at least 1 meter apart for optimal performance.
3.4 Autotuning Function
The YVC-1000 features an autotuning function that analyzes the room environment. It automatically adjusts acoustic settings to the optimal level, providing the best possible audio experience for your specific meeting space.
4. Maintenance
To ensure the longevity and optimal performance of your Yamaha YVC-1000 system, follow these maintenance guidelines:
- Cleaning: Use a soft, dry cloth to wipe down the units. Do not use liquid cleaners, aerosols, or abrasive solvents, as these may damage the surface or internal components.
- Storage: When not in use for extended periods, store the system in a cool, dry place away from direct sunlight and extreme temperatures.
- Cable Management: Ensure cables are not kinked or pinched, which can lead to damage over time.
- Ventilation: Do not block the ventilation openings on the control unit to prevent overheating.
5. Troubleshooting
If you encounter issues with your YVC-1000, refer to the table below for common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No power | AC adapter not connected or faulty; power outlet issue. | Ensure AC adapter is securely connected to the unit and a working power outlet. Try a different outlet. |
| No sound from speaker | Volume too low; speaker muted; incorrect audio output selected on computer. | Increase volume on the unit and computer. Ensure speaker is not muted. Select YVC-1000 as the default audio output device. |
| Microphone not picking up audio | Microphone muted; incorrect audio input selected on computer; microphone unit not properly connected. | Ensure microphone is not muted. Select YVC-1000 as the default audio input device. Check microphone unit cable connections. |
| Bluetooth connection issues | Device not in pairing mode; out of range; interference. | Ensure YVC-1000 is in pairing mode. Move devices closer. Reduce interference from other wireless devices. |
6. Specifications
Key technical specifications for the Yamaha YVC-1000 Unified Communications Microphone & Speaker System:
| Feature | Detail |
|---|---|
| Model Name | YVC-1000 |
| Dimensions (Control Unit) | 6.38 x 13.1 x 3.74 inches |
| Item Weight | 4 pounds |
| Material | Metal, Plastic |
| Connectivity Technology | Bluetooth, NFC, USB |
| Wireless Communication | Bluetooth |
| Speaker Type | Woofer |
| Speaker Size | 5.25 Inches |
| Speaker Max Output Power | 300 Watts |
| Power Source | AC |
| Compatible Devices | Desktop, Laptop, Smartphone, Tablet |
| Control Method | Touch |
| Daisy-Chain Capability | Up to 5 microphone units |
7. Warranty and Support
7.1 Warranty Information
The Yamaha YVC-1000 comes with a Limited Warranty. Please refer to the warranty card included with your product for specific terms, conditions, and duration of coverage.
7.2 Customer Support
For technical assistance, troubleshooting beyond this manual, or warranty claims, please visit the official Yamaha support website or contact their customer service. You can find more information and resources on the Yamaha Store on Amazon.
