1. Introduction
The MEAN WELL LCM-40DA is a 40W multiple-stage output current LED driver power supply designed for various LED lighting applications. This unit features a DALI control interface, allowing for intelligent dimming and control. It provides a constant current output, selectable from 350mA to 1050mA, with an input voltage range of 180-295VAC. This manual provides essential information for the safe and proper installation, operation, and maintenance of your LCM-40DA LED driver.
2. Safety Information
Please read and understand all safety instructions before installation or use. Failure to follow these instructions may result in electric shock, fire, or other hazards.
- Risk of Electric Shock: This product operates with high voltage. Installation and maintenance must be performed by qualified personnel only.
- Disconnect Power: Always disconnect power at the circuit breaker before installing, servicing, or cleaning the unit.
- Intended Use: Use this product only for its intended purpose as an LED driver. Do not modify the unit or use it for applications outside its specified ratings.
- Ventilation: Ensure adequate ventilation around the unit to prevent overheating. Do not cover the driver or install it in an enclosed space without proper airflow.
- Environmental Conditions: This unit is suitable for dry and damp locations. Avoid exposure to direct water spray or immersion.
- Wiring: All wiring must comply with national and local electrical codes. Ensure correct polarity and secure connections.
Image 2.1: A close-up of the product label containing important safety information and declarations in multiple languages, including English, German, French, Italian, Spanish, and Dutch. This section emphasizes proper installation and usage precautions.
3. Product Features
- Multiple-stage output current design.
- Built-in DALI interface and push dimming function.
- Selectable output current via DIP switch.
- Universal AC input / Full range (180-295VAC).
- Protections: Short circuit / Over voltage / Over temperature.
- Fully isolated plastic case.
- Class II power unit (no FG).
- Built-in active PFC function.
Image 3.1: An angled view of the MEAN WELL LCM-40DA LED driver, showcasing its compact design and primary labeling. The top surface displays input/output specifications and DIP switch settings for current adjustment.
4. Specifications
| Parameter | Value |
|---|---|
| Model Number | LCM-40DA |
| Input Voltage Range | 180 - 295 VAC |
| Input Frequency | 47 - 63 Hz |
| Output Current (Selectable) | 350mA, 500mA, 600mA, 700mA, 900mA, 1050mA |
| Output Voltage Range | 2 - 100 VDC (depending on current setting) |
| Maximum Output Power | 40 - 42 Watts |
| Control Interface | DALI, Push Dimming |
| Dimensions (L x W x H) | 6.3 x 3.54 x 1.18 inches (160 x 90 x 30 mm) |
| Weight | 0.24 Kilograms (8.47 ounces) |
| Manufacturer | Mean Well |

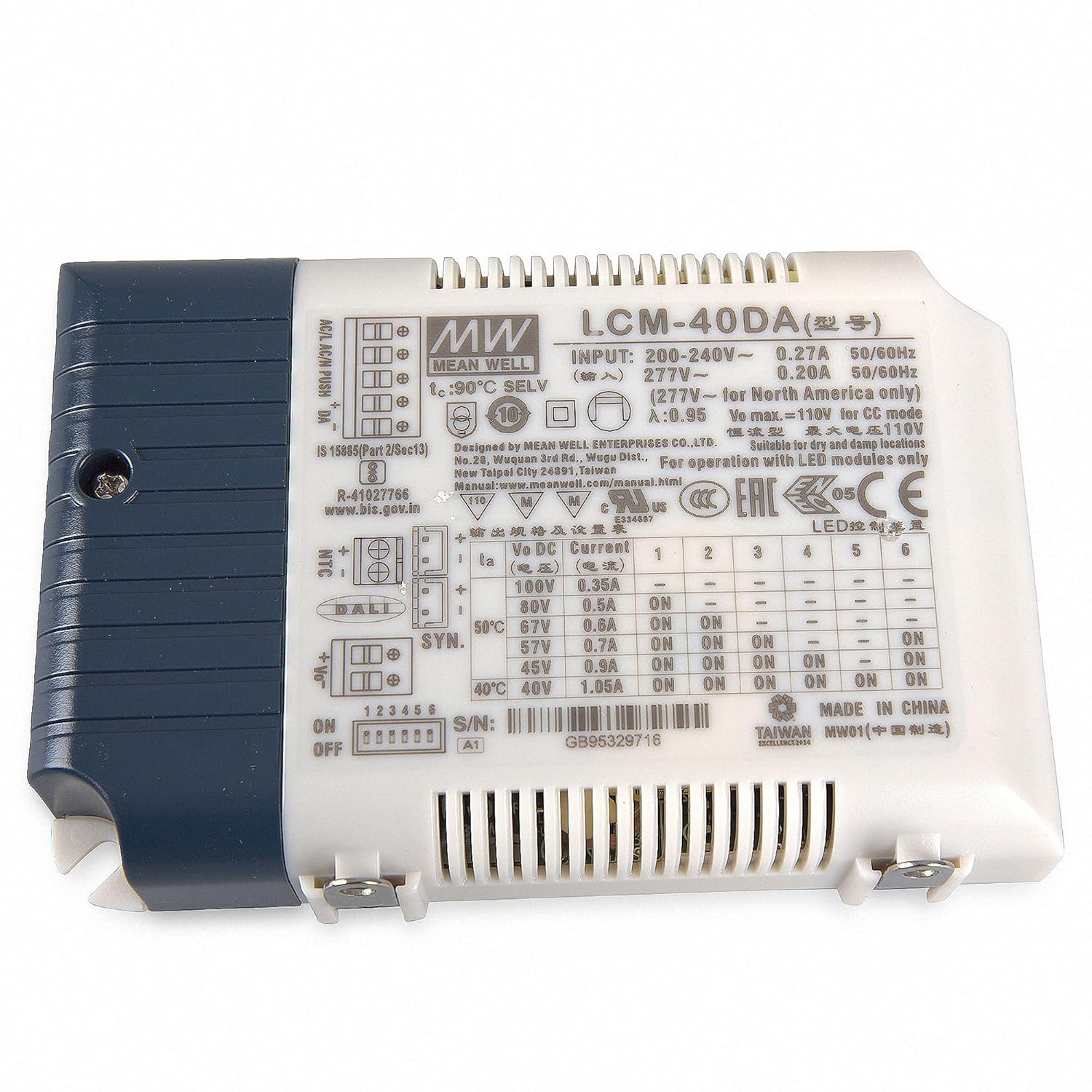

Image 4.1: A clear top-down view of the MEAN WELL LCM-40DA LED driver, highlighting the input/output terminals, DALI control interface, and the DIP switches used for selecting the output current. Detailed electrical specifications are visible.
5. Setup and Installation
Installation should only be performed by a qualified electrician in accordance with all applicable electrical codes.
5.1 Mounting
- Mount the LCM-40DA in a location that allows for adequate ventilation and prevents exposure to excessive heat or moisture.
- Use appropriate fasteners to secure the driver firmly to a stable surface.
5.2 Wiring Connections
Refer to the labeling on the unit for correct terminal connections.
- AC Input: Connect the AC input wires (L and N) to the designated input terminals. Ensure the input voltage is within the specified 180-295VAC range.
- DC Output: Connect the LED load to the DC output terminals (+V and -V). Observe correct polarity.
- DALI Control: Connect the DALI control lines (DA+, DA-) to the DALI interface terminals if using DALI dimming.
5.3 Output Current Selection
The output current is set using the DIP switches located on the unit. Ensure power is disconnected before adjusting DIP switches.
- Locate the DIP switches on the top surface of the driver.
- Refer to the current setting table printed on the unit to select the desired output current (e.g., 350mA, 500mA, 600mA, 700mA, 900mA, 1050mA) by setting the switches to the corresponding ON/OFF positions.
- Verify the selected current matches the requirements of your LED load.
Image 5.1: A side profile view of the MEAN WELL LCM-40DA LED driver, illustrating its slim form factor and mounting tabs. This view emphasizes the ventilation slots on the casing.
6. Operating Instructions
Once properly installed and the output current is set, the LCM-40DA operates automatically when power is supplied.
- Power On: Apply AC power to the input terminals. The LED driver will power the connected LED load.
- DALI Control: If connected to a DALI system, the LED output can be controlled (e.g., dimming, on/off) via the DALI master controller.
- Push Dimming: If configured for push dimming, a momentary switch connected to the DALI terminals can be used to adjust the brightness.
7. Maintenance
The LCM-40DA is designed for reliable operation with minimal maintenance. However, periodic checks can help ensure optimal performance and longevity.
- Cleaning: Ensure the unit is free from dust and debris, especially around ventilation openings. Disconnect power before cleaning. Use a dry, soft cloth.
- Connections: Periodically check all wiring connections to ensure they are secure and free from corrosion.
- Environment: Verify that the operating environment remains within the specified temperature and humidity ranges.
8. Troubleshooting
If the LED driver is not functioning as expected, consider the following common issues:
- No Output:
- Check if AC input power is present and connected correctly.
- Verify that the LED load is connected with correct polarity and is not short-circuited.
- Ensure the output current setting via DIP switches is appropriate for the LED load.
- Incorrect Dimming:
- Check DALI wiring for correct connections and polarity.
- Verify the DALI master controller is functioning correctly.
- If using push dimming, ensure the switch is correctly wired and functional.
- Overheating:
- Ensure adequate ventilation around the unit.
- Verify the ambient temperature is within the specified operating range.
- Check if the load is within the driver's maximum power rating.
If issues persist after checking these points, please contact MEAN WELL technical support or your supplier.
9. Warranty and Support
The MEAN WELL LCM-40DA LED driver is covered by a manufacturer's warranty. Please refer to the warranty card included with your product or visit the official MEAN WELL website for detailed warranty terms and conditions.
For technical support, troubleshooting assistance, or service inquiries, please contact your authorized MEAN WELL distributor or the manufacturer directly. Contact information can typically be found on the MEAN WELL official website: www.meanwell.com.
