Product Overview
The Frigidaire 316527504 Orifice is a genuine replacement part designed for gas range, stove, and oven top burners. This component is crucial for regulating gas flow to ensure proper burner operation with natural gas.

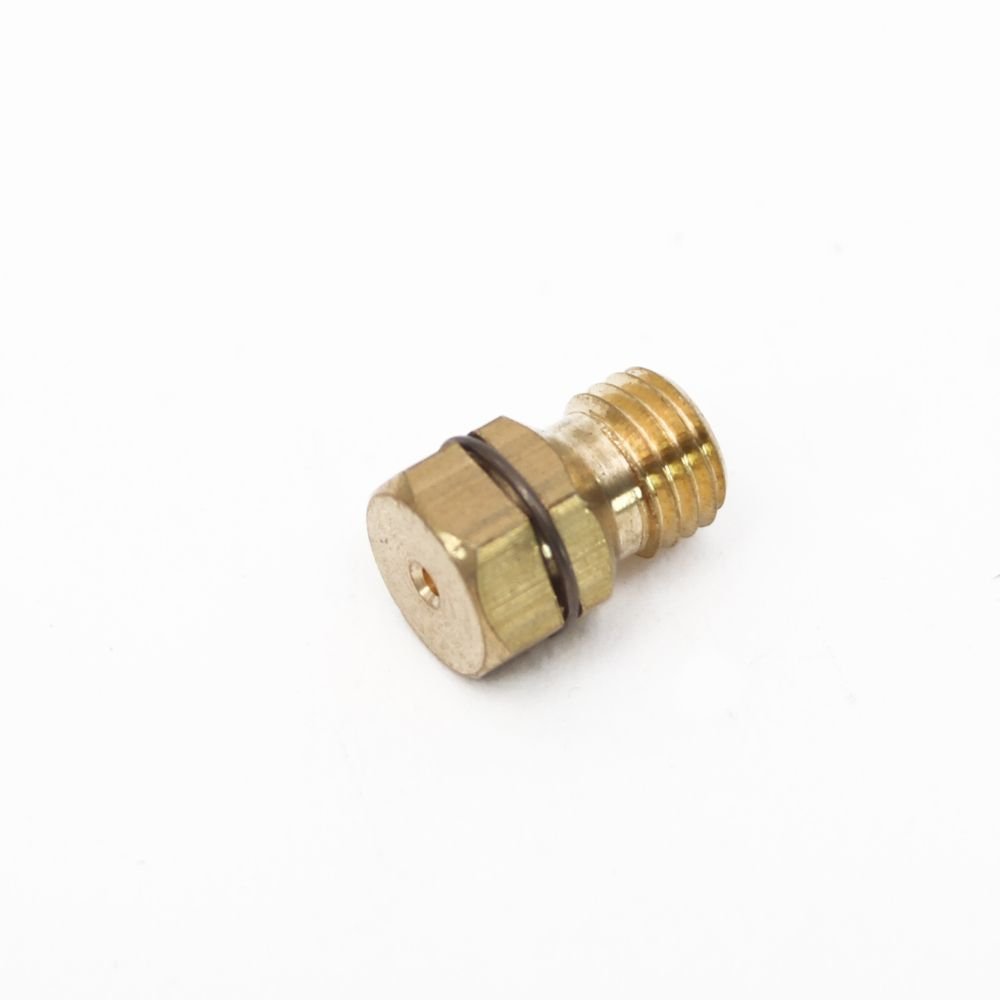

Image: Frigidaire 316527504 Orifice, a brass component with a threaded base and a small central opening.
What's Included
- Single Frigidaire 316527504 Orifice
Specifications
| Feature | Detail |
|---|---|
| Model Number | 316527504 |
| Brand | Frigidaire |
| Item Type | Orifice |
| Material Type | Cast Iron |
| Color | Brass |
| Fuel Type | Natural Gas |
| Size | Single Unit |
| Manufacturer | CE Sundberg |
Setup and Installation
Important Safety Information: Installation of this part should only be performed by a qualified technician. Always disconnect power and gas supply to the appliance before attempting any repairs or installations. Failure to do so can result in serious injury or property damage.
- Preparation: Ensure the appliance is completely cooled and disconnected from all power and gas sources.
- Access the Burner: Carefully remove the grates and burner caps/heads to expose the burner base and the existing orifice.
- Remove Old Orifice: Using an appropriate wrench, carefully unscrew the old orifice. Note its position and orientation for reference.
- Install New Orifice: Thread the new Frigidaire 316527504 orifice into place. Ensure it is tightened securely but do not overtighten, as this can damage the threads.
- Reassemble: Replace the burner caps, heads, and grates.
- Test for Leaks: Reconnect the gas supply and check for any leaks around the newly installed orifice using a soap solution. Bubbles indicate a leak. If a leak is detected, immediately shut off the gas supply and re-tighten the orifice. Repeat the leak test.
- Functionality Test: Reconnect power and test the burner for proper ignition and flame appearance. The flame should be blue and stable.
Video: A demonstration of replacing a range stove oven orifice. This video shows the process of removing and installing a new orifice, highlighting the tools and steps involved.
Video: Another demonstration of a range stove oven orifice conversion kit. This video provides additional visual guidance on the installation process and the components of a conversion kit.
Operating Instructions
Once the Frigidaire 316527504 orifice is correctly installed and tested, the gas burner should operate as intended for natural gas. The orifice regulates the gas flow to produce a consistent and efficient flame.
- Ensure proper ventilation when operating gas appliances.
- Observe the flame color; a healthy gas flame should be predominantly blue with a small, stable inner cone. Yellow or orange flames may indicate improper combustion and require professional inspection.
- Do not obstruct the burner ports.
Maintenance
Regular maintenance helps ensure the longevity and efficient operation of your gas range and its components.
- Cleaning: Periodically clean the burner caps and heads to prevent blockages that can affect flame quality. Ensure the appliance is cool and gas supply is off before cleaning.
- Inspection: Inspect the orifice and burner components annually for any signs of wear, corrosion, or damage.
- Professional Service: If you notice any persistent issues with flame quality, gas odors, or burner performance, contact a qualified service technician.
Troubleshooting
If you experience issues after installing the Frigidaire 316527504 orifice, consider the following common troubleshooting steps:
- No Ignition:
- Check if the gas supply is fully open.
- Ensure the orifice is correctly installed and not cross-threaded.
- Verify that the igniter is sparking.
- Weak or Irregular Flame:
- Confirm the orifice is the correct size for natural gas.
- Check for any debris or food particles blocking the orifice opening or burner ports.
- Ensure burner caps and heads are seated correctly.
- Gas Odor:
- Immediately shut off the gas supply.
- Ventilate the area.
- Do not operate any electrical switches or appliances.
- Contact a qualified technician or your gas provider immediately.
For issues beyond these basic steps, professional assistance is recommended.
Warranty and Support
As a genuine Frigidaire replacement part, this orifice is typically covered under the standard warranty terms for Frigidaire appliance parts. Please refer to your appliance's original warranty documentation or contact Frigidaire customer support for specific warranty details and assistance.
For further support, visit the official Frigidaire website or contact their customer service line. Always provide your appliance model and serial number when seeking support.
