1. Introduction
This manual provides essential information for the proper handling, installation, and maintenance of your Delphi TEM015 Engine Mounting. The Delphi TEM015 is an Original Equipment (OE) quality replacement part designed to meet or exceed the specifications of the original component. Please read this manual thoroughly before proceeding with any installation or maintenance procedures.
2. Safety Information
WARNING: Automotive repair can be dangerous. Always follow proper safety procedures and use appropriate tools.
- Always wear appropriate personal protective equipment (PPE), including safety glasses and gloves.
- Ensure the vehicle is securely supported on jack stands or a lift before working underneath it. Never rely solely on a jack.
- Disconnect the vehicle's battery before beginning work to prevent accidental electrical discharge.
- Allow the engine and exhaust system to cool down completely before handling components.
- If you are unsure about any step, consult a qualified automotive technician. Professional installation is highly recommended.
3. Product Overview
The Delphi TEM015 Engine Mounting is a critical component designed to support the engine and transmission, absorbing vibrations and shocks to provide a smoother ride and reduce noise. This specific model is engineered to OE quality standards, ensuring durability and performance comparable to the original part.

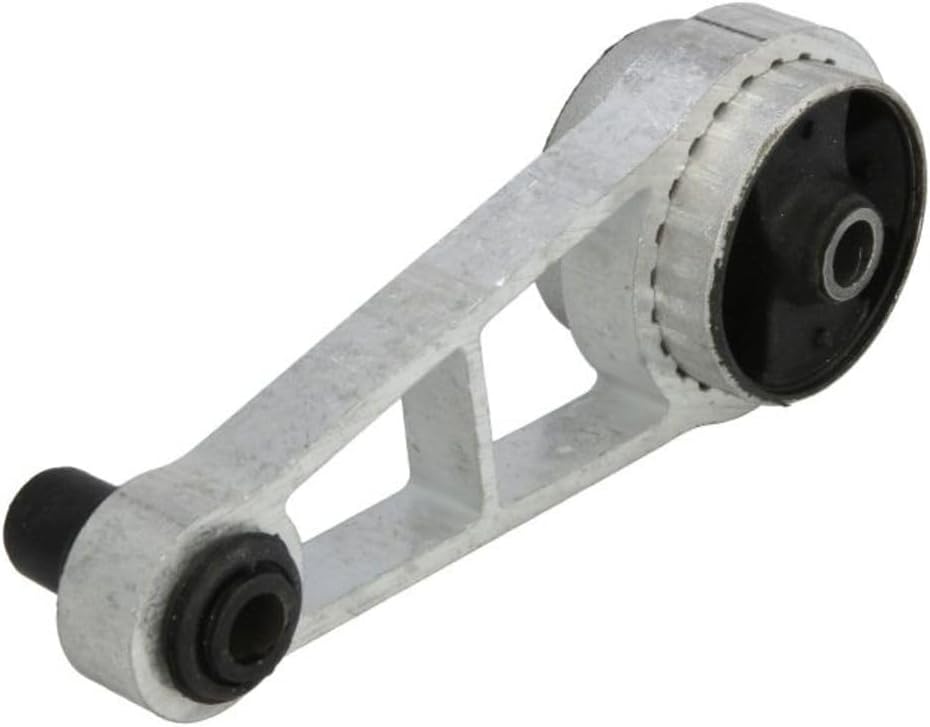

Figure 3.1: Front view of the Delphi TEM015 Engine Mounting. This image displays the robust construction and rubber isolators designed to dampen engine vibrations.
Figure 3.2: Side view of the Delphi TEM015 Engine Mounting, highlighting the mounting points and overall structure.
4. Specifications
| Specification | Detail |
|---|---|
| Brand | Delphi |
| Model Number | TEM015 |
| Manufacturer Part Number | TEM015 |
| Product Dimensions (L x W x H) | 31.2 x 20.87 x 13.83 cm |
| Item Weight | 125 g |
| Position | Rear |
| Quality Standard | OE Quality |
5. Installation (Setup)
The installation of an engine mounting requires specific tools and mechanical knowledge. It is strongly recommended that this procedure be performed by a certified automotive technician.
General Installation Steps (Consult Vehicle-Specific Repair Manual):
- Prepare the Vehicle: Park the vehicle on a level surface, engage the parking brake, and block the wheels. Raise the vehicle safely and support it with jack stands.
- Access the Engine Mount: Locate the engine mount to be replaced. This may require removing other components for access.
- Support the Engine: Use a suitable engine support tool or a jack with a wooden block under the oil pan to support the engine's weight. Ensure the engine is adequately supported before removing the old mount.
- Remove Old Mount: Carefully unbolt and remove the old engine mounting. Note the orientation and position of all components.
- Install New Mount: Position the Delphi TEM015 Engine Mounting in the correct orientation. Install all bolts and nuts, tightening them to the vehicle manufacturer's specified torque values. Do not overtighten.
- Lower Engine and Reassemble: Slowly lower the engine onto the new mount. Remove the engine support. Reinstall any components that were removed for access.
- Final Checks: Double-check all fasteners for tightness. Start the engine and check for any unusual vibrations or noises.
Note: Specific torque values and procedures vary by vehicle make and model. Always refer to your vehicle's service manual for precise instructions.
6. Operation and Function
Once correctly installed, the Delphi TEM015 Engine Mounting will perform its primary function of securing the engine and transmission to the vehicle's chassis. It effectively isolates engine vibrations from the passenger compartment, contributing to a quieter and more comfortable driving experience. A properly functioning engine mount also helps maintain correct engine alignment, reducing stress on other drivetrain components.
7. Maintenance
Engine mountings are generally maintenance-free components. However, periodic inspection is recommended as part of routine vehicle maintenance.
- Visual Inspection: During oil changes or other under-vehicle inspections, visually check the engine mounts for signs of wear, cracking, or separation of the rubber components.
- Check for Leaks: Some engine mounts are fluid-filled. Inspect for any signs of fluid leakage around the mount.
- Listen for Noise: Pay attention to any new or increased vibrations, clunking, or thumping noises coming from the engine bay, especially during acceleration, braking, or shifting gears.
If any signs of wear or damage are observed, or if unusual noises/vibrations persist, have the mounts inspected by a qualified technician.
8. Troubleshooting
Common symptoms of a failing engine mount include:
- Excessive Vibrations: Increased vibration felt in the steering wheel, floor, or seats, especially at idle or specific RPMs.
- Loud Clunking or Thumping Noises: Sounds originating from the engine bay during acceleration, braking, or when shifting gears.
- Engine Movement: Visible or excessive movement of the engine when accelerating or braking.
- Misalignment: Engine or transmission appearing to sit lower or at an unusual angle.
If you experience any of these symptoms, it is advisable to have your vehicle inspected by a professional technician to diagnose the issue and determine if the engine mount requires replacement.
9. Warranty and Support
The Delphi TEM015 Engine Mounting is covered by a full OE Quality Warranty. This warranty ensures that the part meets or exceeds original equipment specifications, providing reliability and peace of mind.
For warranty claims, technical support, or if you have questions regarding the suitability of this part for your specific vehicle, please contact your point of purchase or an authorized Delphi distributor. When contacting support, please have your vehicle's full registration details (Make, Model, Engine size, and Date of manufacture) and the product model number (TEM015) available.
