Voltas 123 Cya Classic Ya Series Split AC

Introduction

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Voltas 123 Cya Classic Ya Series Split Air Conditioner. Please read this manual thoroughly before using your AC unit and retain it for future reference.

Safety Information

To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring instructions may cause harm or damage.

• Ensure the AC unit is installed by a qualified technician.
• Do not operate the AC with wet hands.
• Do not insert fingers or foreign objects into the air inlet/outlet.
• Keep flammable materials away from the unit.
• Disconnect power before cleaning or performing maintenance.
• Do not attempt to repair the unit yourself. Contact authorized service personnel.

Product Overview

The Voltas 123 Cya Classic Ya Series Split AC is designed for efficient cooling. Key features include:

• Type: Non Inverter Split AC
• Energy Rating: 1 Star Rating
• Special Features: Anti Bacterial Filter, Dehumidifier

Included Components:

• Main Unit
• User Manual (this document)

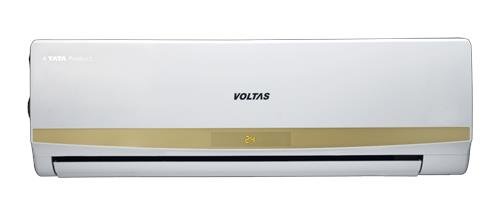

Image showing the indoor unit of the Voltas 123 Cya Classic Ya Series Split AC.

Setup

Professional Installation: It is highly recommended that the Voltas 123 Cya Classic Ya Series Split AC be installed by a certified and experienced technician. Improper installation can lead to reduced performance, safety hazards, and void the product warranty.

Pre-Installation Checks:

• Ensure the installation site has adequate space for both indoor and outdoor units.
• Verify that the power supply (230 V / 50 Hz / 1 phase) meets the unit's requirements.
• Confirm proper drainage for condensate water.

Initial Power-Up: After installation, ensure all connections are secure. Turn on the main power supply to the AC unit. The unit will typically perform a self-check upon first power-up.

Operating Instructions

Your Voltas AC unit is operated primarily via a remote control (not detailed in this manual, refer to separate remote control guide if provided).

Basic Operation:

• Power On/Off: Press the 'ON/OFF' button on the remote control.
• Temperature Adjustment: Use the 'TEMP UP' or 'TEMP DOWN' buttons to set your desired temperature.
• Fan Speed: Adjust the fan speed using the 'FAN' button to cycle through various settings (Auto, Low, Medium, High).

Operating Modes:

• Cool Mode: Select 'COOL' mode for standard air conditioning. The unit will cool the room to the set temperature.
• Dehumidifier Mode: Select 'DRY' or 'DEHUMIDIFIER' mode to reduce humidity in the room without significant cooling.
• Fan Mode: Operates only the fan, circulating air without cooling or heating.

Maintenance

Regular maintenance ensures optimal performance and longevity of your AC unit.

Air Filter Cleaning:

• The unit is equipped with an Anti Bacterial Filter.
• Clean the air filters every two weeks or more frequently if the unit is used often or in dusty environments.
• Open the front panel of the indoor unit, remove the filters.
• Wash filters with lukewarm water and a mild detergent. Rinse thoroughly and allow them to dry completely in a shaded area before reinserting.

General Cleaning:

• Wipe the indoor and outdoor units with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Ensure the outdoor unit's coils are free from debris (leaves, dust).

Seasonal Maintenance: Before the cooling season, consider having a professional technician inspect the refrigerant levels, electrical connections, and overall system performance.

Troubleshooting

If your AC unit is not functioning correctly, refer to the following common issues before contacting service.

If the problem persists after attempting these solutions, please contact Voltas customer support.

Specifications

Warranty

Your Voltas 123 Cya Classic Ya Series Split AC comes with the following warranty:

• 1 year warranty on the product.
• 5 years warranty on the compressor.

Please retain your purchase receipt for warranty claims. The warranty is subject to terms and conditions, including proper installation and usage as outlined in this manual.

Support

For technical assistance, service requests, or warranty claims, please contact Voltas customer support. Refer to the contact information provided with your purchase documentation or visit the official Voltas website for the most up-to-date support details.

When contacting support, please have your product model number (1.0 T 123 Cya) and purchase date readily available.
