Kopp 826100021 Free-control Universal Radio Transmitter Instruction Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your Kopp 826100021 Free-control Universal Radio Transmitter. Please read this manual thoroughly before using the device to ensure proper function and safety. Keep this manual for future reference.

2. Product Overview

The Kopp 826100021 is a 2-channel universal radio transmitter designed to convert traditional wired switches, buttons, or detectors with potential-free output into wireless control points. It allows for flexible placement and integration into existing electrical systems without extensive wiring modifications. The device is powered by a 3V CR2032 lithium battery.

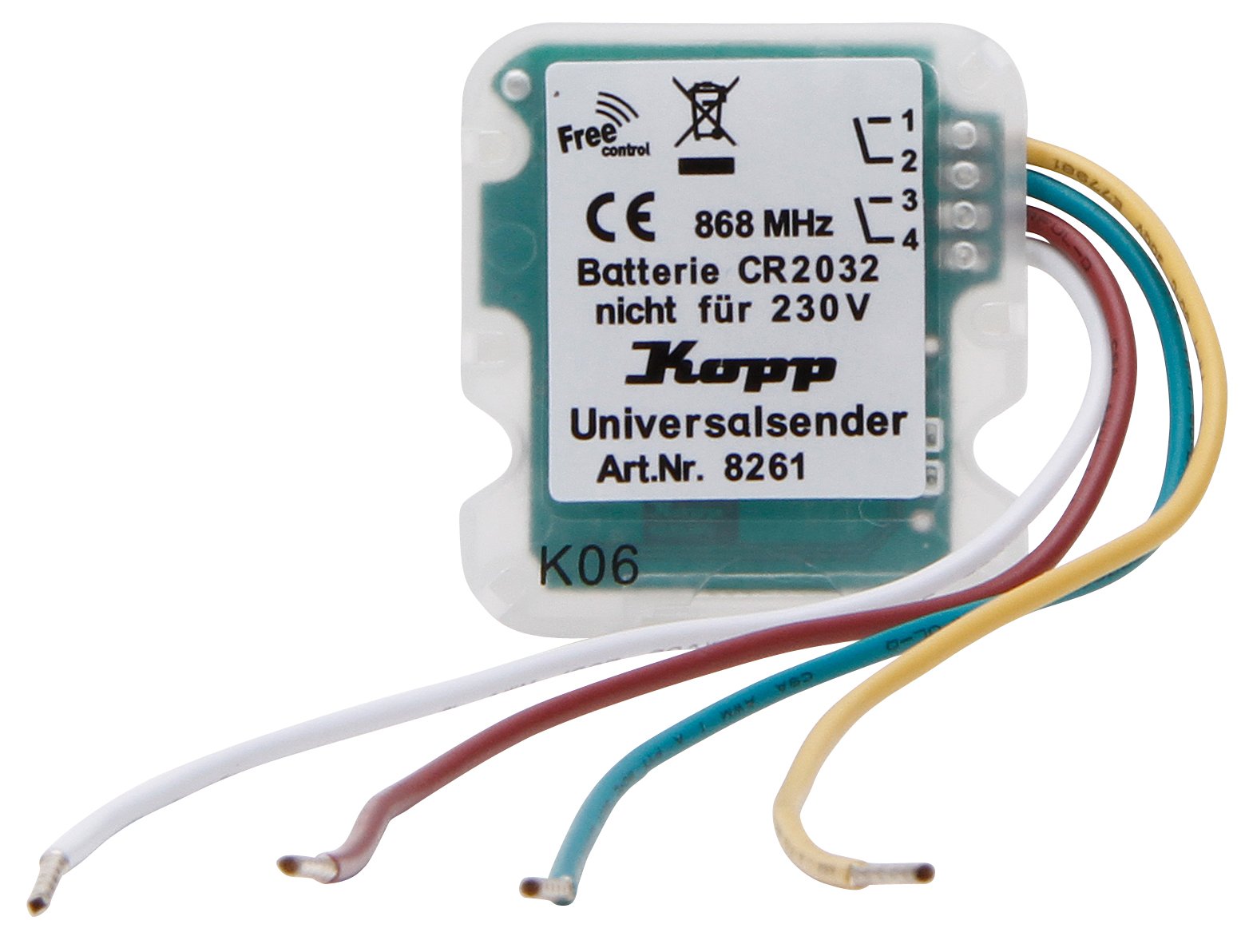

Image 1: Kopp 826100021 Free-control Universal Radio Transmitter. This image shows the compact, rectangular device with a small antenna, designed for discreet installation behind a wall switch.

Key Features:

• Universal Application: Compatible with various traditional switches, buttons, and detectors.
• Potential-Free Output: Designed for integration with devices providing potential-free contacts.
• 2-Channel Operation: Supports control of two distinct functions or devices.
• Battery Powered: Uses a standard CR2032 3V lithium battery for power.
• Compact Design: Allows for installation behind standard wall switches.

3. Safety Information

• Electrical Safety: Installation should only be performed by qualified personnel in accordance with local electrical regulations. Ensure power is disconnected before installation.
• Battery Handling: Do not ingest the battery. Keep batteries away from children. If swallowed, seek immediate medical attention. Dispose of used batteries responsibly.
• Operating Environment: Do not expose the device to extreme temperatures outside the specified range (-5 °C to 55 °C), high humidity, or direct water contact.
• Compatibility: Note that FreeControl 1.0, 2.0, and 3.0 systems are not compatible with each other. Ensure your receiver system matches the transmitter's generation.

4. Setup

4.1. Battery Installation

1. Carefully open the device casing to access the battery compartment.
2. Insert the supplied CR2032 3V lithium battery, ensuring correct polarity (+/-).
3. Close the device casing securely.

4.2. Installation Behind a Switch/Button

This device is designed for discreet installation behind an existing wall switch, push-button, or detector that provides a potential-free output.

1. Disconnect Power: Before beginning any electrical work, ensure the main power supply to the circuit is switched off at the fuse box or circuit breaker.
2. Access Switch: Remove the existing wall switch plate and carefully pull the switch out of its mounting box.
3. Connect Transmitter: Connect the two input wires of the Kopp 826100021 transmitter to the potential-free contacts of your existing switch or button. Refer to the wiring diagram provided with your specific switch for correct connection points.
4. Position Device: Carefully place the transmitter module into the wall box behind the switch, ensuring it does not obstruct the switch mechanism or wiring.
5. Secure Switch: Re-mount the switch and attach the wall plate.
6. Restore Power: Restore power to the circuit.

4.3. Pairing with a Receiver

After installation, the transmitter must be paired with a compatible Free-control receiver (sold separately). The pairing process typically involves activating a learning mode on the receiver and then sending a signal from the transmitter by pressing the connected switch/button. Refer to the instruction manual of your specific Free-control receiver for detailed pairing instructions.

5. Operating Instructions

Once the Kopp 826100021 Universal Radio Transmitter is correctly installed and paired with a compatible receiver, its operation is straightforward:

• Triggering Transmission: Simply operate the connected traditional switch or button as you normally would. Each activation (e.g., pressing a push-button, toggling a switch) will send a radio signal to the paired receiver.
• 2-Channel Control: If your setup utilizes both channels, ensure your physical switch or button provides distinct potential-free outputs for each channel, and that these are correctly wired to the transmitter. The receiver will then interpret these distinct signals.
• Range: The maximum operating range is approximately 10 meters, depending on environmental factors and obstacles. Ensure the transmitter and receiver are within effective range for reliable operation.

6. Maintenance

6.1. Battery Replacement

The device is powered by a CR2032 3V lithium battery. The lifespan of the battery depends on usage frequency. When the signal transmission becomes unreliable or stops, it is likely time to replace the battery.

1. Disconnect Power: For safety, disconnect power to the circuit before accessing the transmitter.
2. Access Device: Carefully remove the wall switch plate and pull the switch and transmitter out of the mounting box.
3. Replace Battery: Open the transmitter casing and replace the old CR2032 battery with a new one, observing correct polarity.
4. Reassemble: Close the casing, re-install the transmitter and switch, and restore power.

6.2. Cleaning

Clean the exterior of the device with a soft, dry cloth. Do not use abrasive cleaners, solvents, or allow moisture to enter the device.

7. Troubleshooting

• Device Not Responding:
  • Check if the battery is correctly installed and has sufficient charge. Replace if necessary.
  • Ensure the transmitter is properly wired to the switch/button and that the switch/button itself is functioning correctly.
  • Verify that the transmitter is correctly paired with the receiver. Re-pair if needed, following the receiver's instructions.
• Limited Range:
  • Ensure the distance between the transmitter and receiver does not exceed 10 meters.
  • Minimize obstacles such as thick walls, metal objects, or other electronic devices that may interfere with the radio signal.
• Incompatibility Issues:
  • The Kopp FreeControl 1.0, 2.0, and 3.0 systems are not cross-compatible. Ensure your transmitter and receiver belong to the same FreeControl generation. This transmitter is part of the 'new generation' but specifically refers to the 826100021 model, which may not be compatible with all FreeControl 3.0 receivers. Always verify compatibility before purchase and installation.

8. Specifications

9. Warranty and Support

Warranty information for the Kopp 826100021 Universal Radio Transmitter is typically provided at the point of purchase or included with the product packaging. Please retain your proof of purchase for warranty claims.

For technical support, troubleshooting assistance beyond this manual, or inquiries regarding spare parts, please contact Kopp customer service. Contact details can usually be found on the manufacturer's official website or on the product packaging.
