1. Introduction
Thank you for choosing the Smeg UM40 Undermount Sink. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your new stainless steel kitchen sink. Please read these instructions carefully before installation and retain them for future reference.
2. Safety Information
Important Safety Instructions:
- Always ensure that installation is performed by a qualified professional to prevent damage or injury.
- Wear appropriate personal protective equipment (PPE) such as gloves and eye protection during installation.
- Ensure all plumbing connections are secure and watertight to prevent leaks.
- Do not use abrasive cleaners or harsh chemicals on the stainless steel surface, as this can cause damage.
- Keep children away from the installation area.
3. Product Overview
The Smeg UM40 is a high-quality rectangular undermount kitchen sink crafted from durable stainless steel with a brushed finish. Its single-bowl design offers a sleek and functional addition to any modern kitchen.
Figure 1: Smeg UM40 Undermount Sink. This image shows the overall appearance of the rectangular stainless steel sink, designed for undermount installation.
4. Setup and Installation
This section outlines the general steps for installing your Smeg UM40 undermount sink. Professional installation is highly recommended.
4.1. Pre-Installation Checks
- Unpack the sink and inspect it for any damage.
- Ensure all necessary components (mounting clips, sealant, drain assembly) are present.
- Verify that the countertop material is suitable for undermount installation and can support the weight of the sink when full.
4.2. Countertop Preparation and Cut-out
A precise cut-out in the countertop is essential for a proper undermount fit. Use the provided template (if included) or the dimensions below to mark and cut the opening.
Figure 2: Installation diagram for Smeg UM40 sink (example bowl size 360x340mm). This diagram illustrates the top view and side profile with critical dimensions for the sink cut-out and overall sink size. Key dimensions include a bowl width of 340mm, bowl length of 360mm, overall width of 400mm, overall length of 420mm, and a depth of 180mm. The corner radius is R75.
Note: The diagram above shows one possible bowl size. If your model varies, refer to the specific template or dimensions provided with your sink. Another common size is shown below.

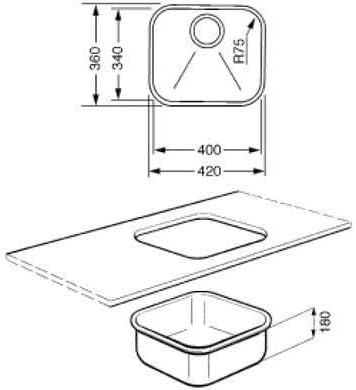

Figure 3: Installation diagram for Smeg UM40 sink (example bowl size 340x400mm). This diagram illustrates an alternative top view and side profile with critical dimensions for the sink cut-out and overall sink size. Key dimensions include a bowl width of 400mm, bowl length of 340mm, overall width of 420mm, overall length of 360mm, and a depth of 180mm. The corner radius is R75.
4.3. Mounting the Sink
- Apply a continuous bead of silicone sealant around the perimeter of the countertop cut-out.
- Carefully lift the sink into position from underneath the countertop, aligning it with the cut-out.
- Secure the sink using the provided mounting clips and screws, tightening them evenly to create a firm seal. Do not overtighten.
- Wipe away any excess sealant immediately.
4.4. Plumbing Connections
- Install the drain assembly according to its manufacturer's instructions.
- Connect the P-trap and waste pipe, ensuring all connections are hand-tightened and then secured with a wrench, taking care not to overtighten.
- Test for leaks by running water into the sink and checking all connections thoroughly.
5. Operating Instructions
The Smeg UM40 sink is designed for everyday kitchen use.
- Use the sink for washing dishes, preparing food, and other standard kitchen tasks.
- Avoid placing extremely hot items directly into the sink without protection, as sudden temperature changes can potentially affect the material over time, though stainless steel is highly durable.
- Do not use the sink as a cutting surface to prevent scratches.
6. Maintenance and Care
Proper care will ensure the longevity and appearance of your stainless steel sink.
- Daily Cleaning: Wipe the sink with a damp cloth and mild dish soap after each use. Rinse thoroughly with clean water and dry with a soft cloth to prevent water spots and mineral buildup.
- Stubborn Stains: For more stubborn stains, use a non-abrasive stainless steel cleaner. Always rub in the direction of the grain.
- Avoid: Do not use steel wool, abrasive pads, harsh chemicals (like bleach or ammonia-based cleaners), or cleaners containing chlorides, as these can damage the stainless steel finish.
- Prevent Scratches: While stainless steel is durable, it can scratch. Use a sink grid to protect the bottom from heavy pots and pans.
- Rust Prevention: Although stainless steel is rust-resistant, prolonged contact with iron objects (e.g., cast iron pans, steel wool) can cause surface rust. Remove such items promptly.
7. Troubleshooting
Here are some common issues and their potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Water leaks from connections | Loose plumbing connections, damaged seals. | Tighten connections. Replace worn or damaged seals/gaskets. Consult a plumber if necessary. |
| Slow draining or clogged sink | Food debris, grease buildup in drain. | Use a plunger. Clean the drain trap. Avoid pouring grease down the drain. |
| Water spots or mineral buildup | Hard water, not drying the sink after use. | Wipe the sink dry after each use. Use a vinegar solution (diluted) for mineral deposits, then rinse thoroughly. |
| Surface scratches | Abrasive objects, improper cleaning. | Use a sink grid. Avoid abrasive cleaners. Minor scratches can sometimes be blended with a fine abrasive pad (e.g., Scotch-Brite) rubbed in the direction of the grain, but proceed with caution. |
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | UM40 |
| Brand | Smeg |
| Material | Stainless Steel |
| Color | Stainless Steel |
| Finish Type | Brushed |
| Installation Type | Undermount |
| Shape | Rectangular |
| Overall Product Dimensions (L x W x H) | 35.99 x 42.01 x 18.01 cm (approx. 36 x 42 x 18 cm) |
| Bowl Size (example from diagram) | 340 x 360 mm (or 360 x 340 mm depending on orientation) |
| Item Weight | 2 kg |
| Drain Type | Grid |
| Care Instructions | Wipe with a damp cloth |
| ASIN | B00LM5Q0OW |
| International Article Code | 08017709140199 |
9. Warranty and Support
For information regarding the product warranty, please refer to the warranty card included with your purchase or visit the official Smeg website.
For technical support, spare parts, or service inquiries, please contact Smeg customer service through their official channels.
- Smeg Official Website: www.smeg.com
- Customer Service: Refer to your regional Smeg contact information.
