1. Introduction
Thank you for choosing the Voltas 183 LYE Window Air Conditioner. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new AC unit. Please read this manual thoroughly before using the appliance and retain it for future reference.
2. Safety Information
To prevent injury to the user or other people and property damage, the following instructions must be followed. Incorrect operation due to ignoring instructions may cause harm or damage.
- Ensure the AC unit is installed by qualified personnel according to local electrical codes and this manual.
- Always use a grounded power outlet with the correct voltage rating.
- Do not operate the AC with wet hands or when standing on a wet surface.
- Do not insert fingers or objects into the air inlet/outlet.
- Keep the power cord away from heat sources and sharp edges.
- Unplug the unit before cleaning or performing any maintenance.
- Do not attempt to repair the unit yourself. Contact authorized service personnel.
- Ensure proper ventilation around the outdoor unit to prevent overheating.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
3. Package Contents
Verify that all items are present in the package:
- Main Unit (Voltas 183 LYE Window AC)
- User Manual (this document)
- Remote Control
4. Product Overview
The Voltas 183 LYE is a 1.5 Ton, 3 Star rated window air conditioner designed for efficient cooling. It features a copper condenser for enhanced durability and heat transfer.

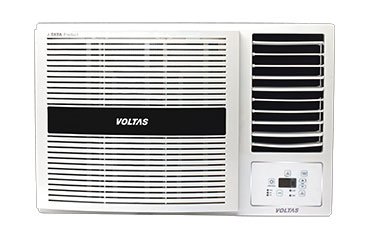

Figure 1: Front view of the Voltas 183 LYE Window AC unit, showing the air intake grille, control panel, and air outlet louvers.
Key Features:
- Anti Dust and Nano Silver Filters: For improved air quality.
- Copper Tubes: Inner groove copper tubes for efficient cooling.
- Auto Restart: Automatically resumes operation with previous settings after a power outage.
- Easily Removable Panel: Simplifies cleaning and maintenance.
- Fresh Air Ventilation: Allows for fresh air intake.
- Large LED Display: Clear indication of settings and status.
- LCD Remote: Convenient control from a distance.
- Turbo Mode: Provides rapid cooling.
- Auto Swing: Ensures even air distribution.
- Timer: Allows setting specific on/off times.
- Sleep Mode: Adjusts temperature for comfortable sleep and energy saving.
- Memory Function: Retains preferred settings.
- Self Diagnosis: Identifies and displays error codes for troubleshooting.
- Glow Light Button: For easy operation in the dark.
- Special Features: Anti Bacterial Filter, Dehumidifier.
5. Setup and Installation
The Voltas 183 LYE is a window-type air conditioner. Proper installation is crucial for optimal performance and safety.
Important Installation Notes:
- Professional Installation: It is highly recommended to have the unit installed by a certified technician. Incorrect installation can lead to water leakage, electric shock, or fire.
- Location: Choose a location that can support the weight of the unit and allows for proper air circulation. Avoid direct sunlight or heat sources.
- Electrical Requirements: Ensure the power supply meets the specifications of the unit (230 Volts). Use a dedicated, grounded outlet.
- Drainage: Ensure proper drainage for condensed water.
- Installation Support: For assistance with installation, please contact Voltas customer service or the retailer.
6. Operating Instructions
Your Voltas AC unit can be operated using the included LCD remote control. Ensure the remote has batteries inserted correctly.
Basic Operation:
- Power On/Off: Press the POWER button on the remote to turn the unit on or off.
- Mode Selection: Use the MODE button to cycle through cooling, fan, dry (dehumidifier), and auto modes.
- Temperature Adjustment: Use the TEMP UP and TEMP DOWN buttons to set your desired temperature.
- Fan Speed: Press the FAN button to adjust the fan speed (low, medium, high, auto).
Advanced Functions:
- Turbo Mode: Activate TURBO mode for rapid cooling. The unit will operate at maximum fan speed and cooling capacity.
- Auto Swing: Press the SWING button to enable or disable the automatic vertical air swing, ensuring even air distribution.
- Timer Function: Use the TIMER ON/OFF buttons to program the unit to turn on or off at a specific time. Refer to the remote control section of the full manual for detailed timer settings.
- Sleep Mode: Engage SLEEP mode for comfortable overnight operation. The unit will gradually adjust the temperature and fan speed to optimize comfort and energy efficiency.
- Glow Light Button: The remote control features a glow light button for visibility in low-light conditions.
7. Maintenance
Regular maintenance ensures the longevity and efficient operation of your Voltas AC unit. Always unplug the unit before performing any maintenance.
Air Filter Cleaning:
- The unit is equipped with Anti Dust and Nano Silver filters.
- The front panel is easily removable for access to the air filters.
- Clean the air filters every two weeks, or more frequently if the unit is used in a dusty environment.
- Remove the filters and wash them with lukewarm water and a mild detergent. Rinse thoroughly and allow them to air dry completely before reinstalling.
- Do not expose filters to direct sunlight or high heat during drying.
General Cleaning:
- Wipe the exterior of the unit with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
- Ensure the air inlet and outlet grilles are free from obstructions.
Seasonal Maintenance:
- Before long periods of non-use (e.g., winter), run the unit in fan-only mode for a few hours to dry out the internal components.
- Clean the filters and cover the unit to protect it from dust.
8. Troubleshooting
If your AC unit is not operating correctly, refer to the following common issues and solutions. The unit also features a self-diagnosis function that may display error codes on the LED display.
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on. | No power, remote batteries dead, power cord unplugged. | Check power supply, replace remote batteries, ensure cord is securely plugged in. |
| Insufficient cooling. | Dirty air filters, blocked air intake/outlet, room too large, doors/windows open. | Clean air filters, clear obstructions, ensure room is sealed, check for proper sizing. |
| Unusual noise. | Loose parts, unit not level, foreign object inside. | Check for loose components, ensure unit is level, contact service if noise persists. |
| Water leakage. | Improper installation, blocked drain pipe. | Ensure proper installation angle, clear drain pipe. Contact service if issue persists. |
| Error code displayed. | Internal malfunction detected by self-diagnosis. | Note the error code and contact Voltas customer support for diagnosis and repair. |
If the problem persists after attempting these solutions, please contact authorized Voltas service personnel.
9. Specifications
| Feature | Detail |
|---|---|
| Brand | Voltas |
| Model Number | 183 LYE |
| Capacity | 1.5 Tons |
| Cooling Power | 3200 Watts |
| Energy Rating | 3 Star (BEE Star Rating) |
| Special Features | Anti Bacterial Filter, Dehumidifier, Anti Dust Filter, Nano Silver Filter, Auto Restart, Turbo Mode, Auto Swing, Timer, Sleep Mode, Memory Function, Self Diagnosis, Glow Light Button |
| Noise Level | 58 Decibels |
| Installation Type | Window |
| Core Material | Copper |
| Voltage | 230 Volts |
| Power Source | Corded Electric |
| Wattage | 4850 Watts |
| Item Weight | 87000 Grams |
| Control Method | Remote Control |
| Floor Area Coverage | 130 Square Feet |
10. Warranty and Support
Warranty Information:
- Comprehensive Warranty: 1 year on the product.
- Compressor Warranty: 5 years on the compressor.
- The warranty covers manufacturing defects under normal use. Please retain your purchase receipt for warranty claims.
Customer Support:
For any queries, installation assistance, service requests, or troubleshooting not covered in this manual, please contact Voltas customer support:
- Toll-Free Number: 1800-3000-9027
- Please have your model number (183 LYE) and purchase details ready when contacting support.
