BISSELL 81N7E All-in-One Electric Vacuum and Washer

1. Introduction

The BISSELL 81N7E All-in-One Electric Vacuum and Washer is a versatile cleaning system designed for comprehensive home cleaning. This unit combines the functions of a bagless water-filtered vacuum cleaner, a deep carpet cleaner with ProHeat technology, and an innovative hard floor cleaner. It is engineered to effectively clean various surfaces, including carpets, upholstery, sealed wood, ceramic tiles, and vinyl flooring, by trapping dirt in a water tank and utilizing a HEPA13 filter for improved air quality.

2. Important Safety Information

Please read all instructions carefully before using this appliance to reduce the risk of fire, electric shock, or injury. Keep this manual for future reference.

• Always connect to a properly grounded outlet.
• Unplug from outlet when not in use and before cleaning or servicing.
• Do not leave appliance when plugged in.
• Do not use with damaged cord or plug.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not pick up flammable or combustible liquids such as gasoline, or use in areas where they may be present.
• Do not use without filters in place.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs.
• Do not use to pick up toxic material (chlorine bleach, ammonia, drain cleaner, etc.).
• Do not use in an enclosed space where vapors are given off by oil base paint, paint thinner, some mothproofing substances, flammable dust, or other explosive or toxic vapors.
• Do not pick up hard or sharp objects such as glass, nails, screws, coins, etc.

3. Package Contents

Your BISSELL 81N7E package should include the following components:

• Main Unit (All-in-One Vacuum and Washer)
• Flexible Hose (2.4 meters)
• Power Cord (6 meters)
• Water Tank
• HEPA13 Filter
• Assorted Cleaning Tools and Attachments (e.g., floor nozzle, upholstery tool, crevice tool, dusting brush, hard floor microfiber head)
• Carpet Shampoo Container

Image: Various cleaning tools and attachments included with the BISSELL 81N7E.

4. Assembly and Initial Setup

Follow these steps to assemble your BISSELL 81N7E and prepare it for first use.

1. Unpack the Unit: Carefully remove all components from the packaging. Ensure all parts listed in the 'Package Contents' section are present.
2. Attach the Hose: Insert the flexible hose into the suction inlet on the main unit until it clicks securely into place.
3. Connect Power Cord: Unwind the power cord and plug it into a grounded electrical outlet.
4. Prepare Water Tank for Vacuuming: For dry vacuuming with water filtration, fill the water tank with the recommended amount of clean water. Refer to the markings on the tank for minimum and maximum fill levels.
5. Select and Attach Cleaning Head: Choose the appropriate cleaning head or attachment for your task (e.g., floor nozzle for general vacuuming, specialized tools for carpet or hard floor cleaning). Attach it firmly to the end of the hose or extension wand.

5. Operating Instructions

The BISSELL 81N7E offers three primary cleaning modes: water-filtered vacuuming, carpet cleaning, and hard floor washing.

5.1. Water-Filtered Vacuuming

This mode uses water to trap dust and debris, preventing re-release into the air. It is ideal for general dry vacuuming.

1. Ensure the water tank is filled with clean water to the indicated level.
2. Attach the desired vacuuming nozzle (e.g., floor nozzle for carpets/hard floors, crevice tool for tight spaces).
3. Plug in the unit and turn on the power switch. The 2000-watt motor will provide strong suction.
4. Move the nozzle slowly over the surface to be cleaned. The water filtration system, combined with the HEPA13 filter, will capture dust and allergens.
5. After use, turn off the unit, unplug it, and empty the dirty water tank as described in the Maintenance section.

Image: Internal diagram illustrating the water filtration process, where dirt is trapped in water.

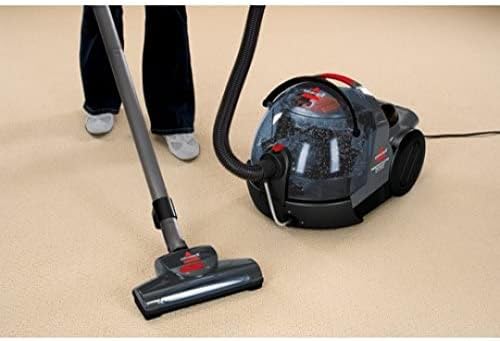

Image: The BISSELL 81N7E in use, demonstrating its vacuuming function on a carpeted floor.

5.2. Carpet Cleaning (Deep Cleaning)

For deep cleaning carpets and upholstery, the unit utilizes its ProHeat technology to maintain optimal cleaning solution temperature.

1. Remove the water tank and fill it with the recommended BISSELL carpet cleaning solution and warm water, following the solution's instructions.
2. Attach the appropriate carpet cleaning tool (e.g., large area carpet tool or spot cleaning tool for upholstery).
3. Plug in the unit and turn on the power. Allow a few minutes for the ProHeat system to warm the cleaning solution.
4. Press the spray trigger to apply the cleaning solution while moving the tool slowly over the carpet. Release the trigger and make a second pass to suction up the dirty solution.
5. Repeat passes until the extracted water appears clean.
6. After cleaning, turn off and unplug the unit. Empty and rinse the dirty water tank thoroughly.

Image: A user operating the BISSELL 81N7E for deep carpet cleaning, showing the clear cleaning head.

5.3. Hard Floor Cleaning

The innovative hard floor cleaning function allows for washing and drying sealed hard surfaces.

1. Replace the standard cleaning head with the special microfiber cleaning head.
2. Fill the water tank with warm water and a suitable hard floor cleaning solution, if desired.
3. Plug in the unit and turn on the power.
4. Apply cleaning solution to the floor using the spray trigger and scrub with the microfiber pad.
5. Release the trigger and use the powerful suction to remove the dirty water, leaving the floor quickly dry.
6. After cleaning, turn off and unplug the unit. Clean the microfiber pad and empty the dirty water tank.

6. Maintenance and Care

Regular maintenance ensures optimal performance and extends the life of your BISSELL 81N7E.

6.1. Emptying and Cleaning Water Tanks

1. Always turn off and unplug the unit before emptying tanks.
2. Remove the dirty water tank from the main unit.
3. Carefully pour out the dirty water. The water filtration system traps dirt, which can be disposed of in a toilet or garden (ensure no large debris is present).
4. Rinse the dirty water tank thoroughly with clean water.
5. Allow the tank to air dry completely before reassembling.

6.2. Filter Cleaning

The HEPA13 filter and other internal filters should be cleaned regularly.

• Locate the HEPA13 filter (refer to your unit's specific design).
• Remove the filter and gently tap it to dislodge loose debris.
• If washable, rinse under cool running water until clean. Do not use detergents.
• Allow the filter to air dry completely for at least 24 hours before reinstalling. Do not use the unit with a wet filter.

6.3. Cleaning Attachments and Hoses

• After each use, rinse all cleaning tools and attachments with clean water.
• Check the hose for any blockages and clear them if necessary.
• For microfiber pads, wash them according to their care instructions.
• Allow all parts to air dry before storing.

7. Troubleshooting

Here are solutions to common issues you might encounter with your BISSELL 81N7E.

8. Specifications

• Brand: BISSELL
• Model Number: 81N7E
• Power Source: Corded Electric
• Power: 2000 Watts
• Filtration System: Water-filtered, HEPA13
• Hose Length: 2.4 meters
• Cable Length: 6 meters
• Item Weight: 16.4 kg
• UPC: 011120032192

9. Warranty and Support

BISSELL products typically come with a manufacturer's warranty. Please refer to the warranty card included with your purchase or contact your retailer for specific warranty terms and conditions applicable to your region. For technical support, spare parts, or service inquiries, please visit the official BISSELL website or contact their customer service department. Keep your purchase receipt as proof of purchase for warranty claims.
